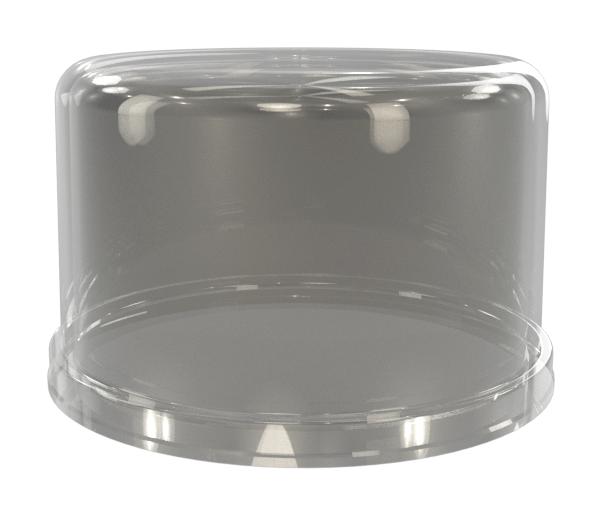

Amphenol FLSC80501000 Lighting Receptacle
The Zhaga Book 18 Compliant FLS Series is designed for outdoor lighting applications, including roadway and smart city lighting. It features a robust receptacle with tool-less wire termination, compatible with 20-16 AWG wires, and mounts easily on luminaires. The series supports multiple sensor modules for dimming control, wireless connectivity, and digital I/O, ensuring reliable performance in harsh environments. Made from UL94-V0 high-temperature materials, the components are sealed and rated IP65/IP66. Ideal for smart lighting, the series combines installation simplicity with durability, weather resistance, and compliance with international standards.
Amphenol FLSC80501000 Lighting Receptacle Specifications:
- Material: Receptacle / Base: PBT, UL94V-0, black
- Dome: Polycarbonate
- Contacts: Phosphor bronze, Tin over 1.271m (50pin) minimum
- Wire Range: 16-20AWG, strip length 10mm
- Operating Temperature: -40°C to +105°C
- Electrical Rating: 1.5A at 250V
- Voltage Rating: 250VAC/VDC max.
- Contact Resistance: 30mQ max.
- Insulation Resistance: 500MOQ min. @ 500V DC
- Dielectric Withstanding Voltage: 10kVDC
- Shock Resistance: 30G’s, 11ms
- Vibration Resistance: Per EIA364-28, Condition 5A
- Durability: 25 mating cycles
- Seals: Gasket and O-Ring: Silicone rubber
- Environmental: -40°C to +105°C, salt spray 250 hours, thermal shock
- Approvals: UL Pending, RoHS compliant
Buy the Amphenol FLS Series – Reliable Outdoor Lighting Receptacle for Industrial Applications
Discover the Amphenol FLS Series outdoor lighting receptacle, designed for seamless installation in smart city and roadway lighting systems. Its tool-less wire termination simplifies setup, while IP65/IP66 sealing ensures protection against harsh environmental elements. Made from high-temperature UL94-V0 materials, it provides reliable operation in temperatures from -40°C to +105°C. Supporting sensor modules and wireless connectivity, this series enhances smart control functions. Order online today to secure a durable, compliant, and easy-to-install solution for outdoor illumination projects worldwide.
Order your Amphenol FLS Series outdoor lighting receptacle today and enhance your smart city and roadway lighting projects with dependable, weatherproof durability.
Frequently Asked Questions
Where can I buy Amphenol FLSC80501000?
You can click on the BUY or RFQ button to purchase FLSC80501000 from an authorized Amphenol distributor.
How do I troubleshoot issues or seek technical support for part FLSC80501000?
You can download the FLSC80501000 datasheet or visit the Amphenol website for support.
Who is the manufacturer of FLSC80501000?
Amphenol
