Amphenol FLSC80502000 Outdoor Lighting Receptacle

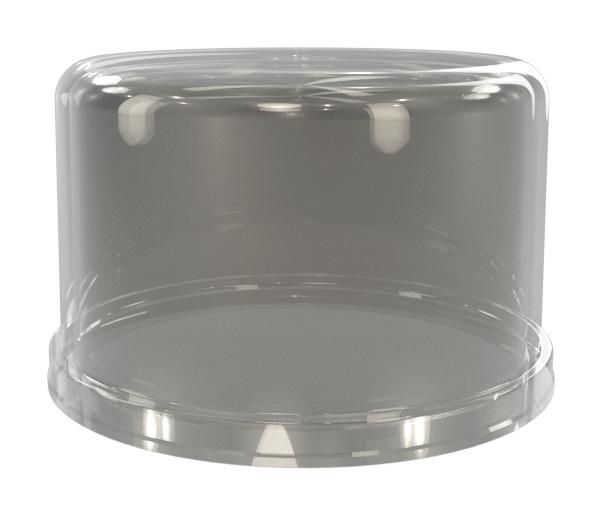

The Zhaga Book 18 compliant FLS Series is designed for outdoor lighting and smart city applications, including roadway and municipal lighting. It features a durable, IP65/IP66 rated receptacle with tool-less wire termination and robust polycarbonate domes for environmental protection. The system supports connections for power, DALI, and digital I/O, with mounting options in 40mm and 80mm diameters. Made from UL94-V0 high-temperature materials, it ensures reliable performance in harsh environments from -40°C to +105°C, meeting all safety and environmental standards.
Amphenol FLSC80502000 Outdoor Lighting Receptacle Specifications:
- Material: PBT, UL94V-0, black receptacle/base; Polycarbonate domes; High temperature thermoplastic mounting nut; Silicone rubber O-Ring; Phosphor bronze contacts with tin/nickel plating; UL758-compliant wire: 16-20AWG; Strip length 10mm
- Mechanical Shock: 30G’s; Vibration: IEC 364-28, Condition 5A; Mating Cycles: 25; Operating Temperature: -40°C to +105°C; Thermal Shock: -40°C to +65°C; Humidity and Salt Spray Resistance: IEC standards; Temperature Rise: 30°C at load
- Electrical Rating: 1.5A at 250V; Max Voltage: 250VAC/VDC; Contact Resistance: 30mΩ; Insulation Resistance: ≥500MΩ at 500V; Dielectric Withstanding Voltage: 10kVDC
- Contacts: 4 (Power, DALI, digital I/O); Contact Material: phosphor bronze, tin over nickel; Mounting: single-hole with gasket and nut; Seal: IP65/IP66; Operating Temp: -40°C to +105°C; Certifications: UL Pending, RoHS
Buy the Buy Amphenol Zhaga Book 18 Compliant FLS Series Part Number FLSC80502000 Online
Order the Amphenol outdoor lighting receptacle FLS Series online today to enhance your smart city and roadway lighting projects. With easy tool-less wiring and rugged IP65/IP66 sealing, this component ensures dependable operation in harsh environments from -40°C to +105°C. The robust polycarbonate domes provide excellent environmental protection, supporting connections for power, DALI, and digital I/O. Fast, simple installation coupled with environmental compliance makes it ideal for municipal, street, and outdoor lighting applications. Secure yours now for superior outdoor lighting control and sensor integration.
Buy Amphenol FLSC80502000 now and experience robust outdoor lighting solutions with reliable sealing and smart connectivity capabilities.
