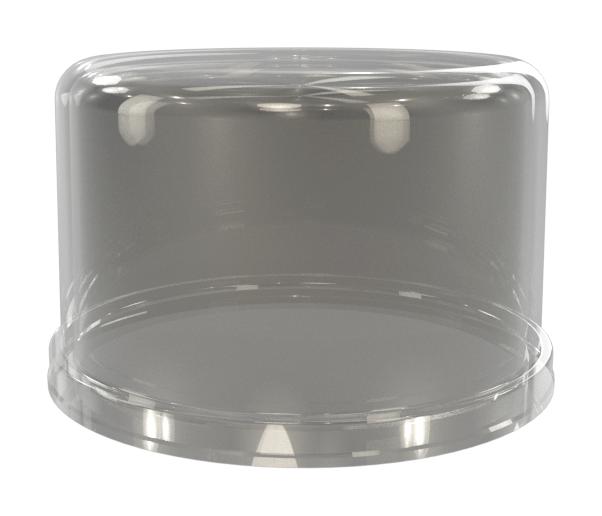

Amphenol FLSC80506000 Outdoor Lighting Receptacle
The Zhaga Book 18 compliant FLS Series is designed for outdoor lighting, supporting smart city and roadway applications. The receptacle features tool-less wire termination, mounts on luminaires with a single hole, and is IP65/IP66 rated when mated with photocells. Made from UL94-V0 high-temperature polycarbonate, it offers durability, reliable sealing, and supports smart lighting controls, wireless communication, and sensor modules. The series includes various extension modules and dome covers, supporting flexible installation, harsh environment operation, and adherence to safety standards for modern outdoor lighting solutions.
Amphenol FLSC80506000 Outdoor Lighting Receptacle Specifications:
- Material: Receptacle / Base: PBT, UL94V-0, black; Dome: Polycarbonate; Contacts: Phosphor bronze, Tin over nickel
- Mounting: Single-hole with gasket and nut; Sealing: Integral O-Ring; Wire Range: 16-20AWG; Operating Temperature: -40°C to +105°C
- Electrical: Contact Rating 1.5A at 250V, Max Voltage 250VAC/VDC, Contact Resistance 30mΩ; Insulation Resistance: 500MΩ at 500V DC; Dielectric Withstanding Voltage: 10kVDC
- Mechanical: Shock 30G, Vibration EIA-364-28, Durability 25 cycles; Connection: Tool-less poke-in, strip length 10mm
- Environmental: Salt spray 250 hours, Temperature Rise 30°C, Humidity resistant, Thermal shock -40°C to +65°C; Certifications: UL Pending
Buy the Amphenol Series FLS Outdoor Lighting Receptacle: FLSC80506000
Enhance your outdoor lighting setup with the Amphenol Series FLS receptacle, compliant with Zhaga Book 18. This rugged, IP65/IP66 rated connector supports smart city applications, sensor modules, and wireless controls. The tool-less wire termination simplifies installation, while durable materials and sealing ensure reliable operation in harsh environments. Suitable for roadway, municipal, and outdoor lighting projects, it offers flexibility, quick setup, and compliance with safety standards, making it the ideal choice for modern, smart lighting infrastructure.
Order your Amphenol Series FLS outdoor lighting receptacle today and ensure reliable, sealed connections for smart city and roadway illumination projects.
Frequently Asked Questions
Where can I buy Amphenol FLSC80506000?
You can click on the BUY or RFQ button to purchase FLSC80506000 from an authorized Amphenol distributor.
How do I troubleshoot issues or seek technical support for part FLSC80506000?
You can download the FLSC80506000 datasheet or visit the Amphenol website for support.
Who is the manufacturer of FLSC80506000?
Amphenol
