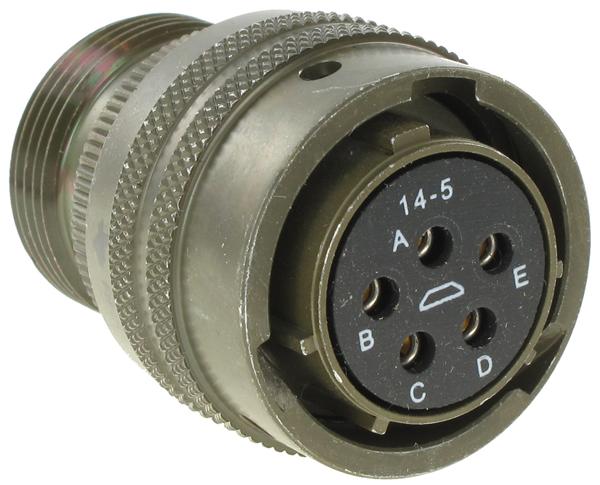

Amphenol PT06A145S Military Circular Connector
This circular MIL-Spec connector features a 5-pin configuration with size 14, designed for straight socket plug applications, ensuring high reliability and durability in demanding environments. It conforms to military standards, with a rugged construction suitable for military, aerospace, and industrial use. The connector offers premium corrosion resistance, consistent electrical performance, and secure bayonet coupling for quick mating and un-mating. Ideal for critical applications requiring robust performance in harsh conditions, meeting MIL-C-26482 specifications with high-quality materials and precise engineering for long-lasting service life.
Amphenol PT06A145S Military Circular Connector Specifications:
- Type: Circular MIL-Spec connector
- Configuration: 5-pin
- Size: 14
- Application: Straight socket plug
- Standards: MIL-C-26482 Series 1
- Material: Aluminum shell, gold-plated contacts
- Corrosion Resistance: Cadmium plated with chromate finish
- Operating Voltage: Up to 1000 VAC (RMS)
- Temperature Range: -55°C to +125°C
- Ingress Protection: IR, IP67 rated
- Mechanical: Bayonet coupling with quick mate feature
- Insertion loss: Minimal, designed for high reliability
- Contact Resistance: Low, ensuring stable electrical connection
- Helium Leak Rate: Less than 1.0 x 10^-9 cc/sec
- Current Capacity: Up to 7 amps per contact
- Dielectric Withstanding Voltage: 1500 volts (RMS at sea level)
Buy the Amphenol Series MIL-C-26482 Circular Connector: PT06A145S
Purchase this high-reliability MIL-C-26482 Series 1 circular connector designed for industrial, aerospace, and military applications. Featuring a robust aluminum shell, gold-plated contacts, quick bayonet coupling, and corrosion-resistant finish, it ensures secure electrical connections in harsh environments. Easy to install with quick mating and unmating, the connector supports up to 1000 VAC, with excellent dielectric performance and long service life. Ideal for tactical, automation, and rugged equipment where performance and durability are critical.
Get Amphenol MIL-C-26482 connector PT06A145S today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy Amphenol PT06A145S?
You can click on the BUY or RFQ button to purchase PT06A145S from an authorized Amphenol distributor.
How do I troubleshoot issues or seek technical support for part PT06A145S?
You can download the PT06A145S datasheet or visit the Amphenol website for support.
Who is the manufacturer of PT06A145S?
Amphenol
