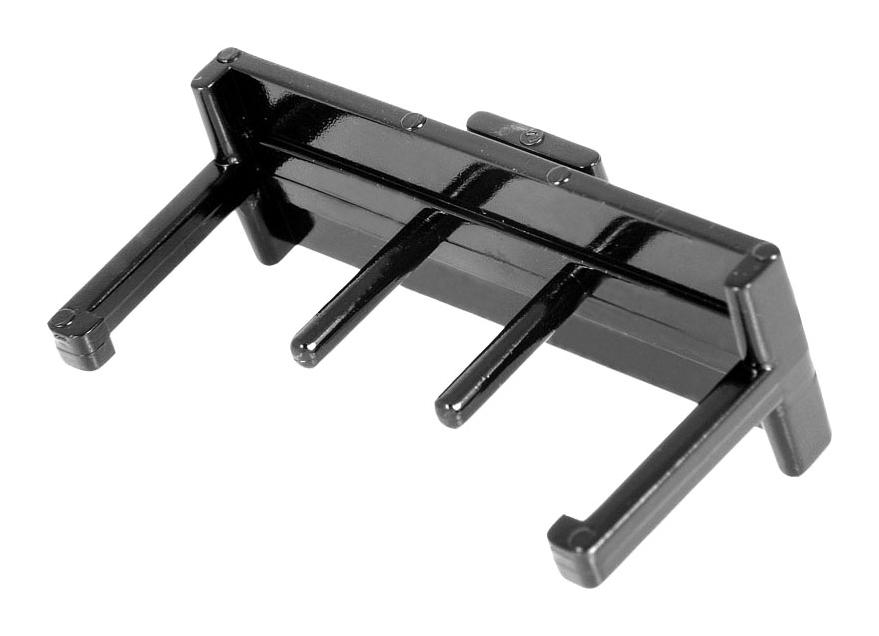

Anderson Power Products 110G12 Powerpole Connector
Powerpole 15-45 series connectors are compact, high-current housings designed for wire-to-wire and wire-to-board applications. They support wire sizes from #20 AWG to #10 AWG, offering up to 55 amps per pole. Features include finger-proof housings, first-mate-last-break ground connectors, and compatibility with various configurations like standard, finger proof, and ground housings. The series provides reliable, durable electrical connections suitable for industrial, automation, and power systems, with options for UL, CSA, and TUV compliance. They are ideal for compact, high-current power distribution in harsh environments.
Anderson Power Products 110G12 Powerpole Connector Specifications:
- Current Rating: Up to 55 Amps per pole
- Wire Size Range: #20 AWG (0.75 mm?) to #10 (6 mm?)
- Operating Temperature: -4°F to 221°F (-20°C to 105°C)
- Voltage Rating: 600 V AC/DC (steady state), 220 V DC breaking capacity
- Reinforced, finger-proof housing with ribs to prevent accidental contact
- Maximum mating cycles: 1,500 (tin plated), 10,000 (silver plated)
- Material: Polycarbonate housing, copper alloy contacts with tin or silver plating
- Mechanical Shock: MIL-STD-202 213, 50g's
- Vibration: MIL-STD-202 204, 109's
- Flammability: UL 94V-0
- Contact Termination: Crimp, solder (PCB contacts), wave solder
- Mounting options: Mounting wings, spacers, retaining pins, mounting clamps
- Compatible with Powerpole® Pak shells, plug and receptacle configurations available
- Certification: UL1977, CSA, TUV recognition (some features)
Buy the Anderson Powerpole 15-45 – Reliable High-Current Connectors for Industrial Applications
Enhance your electrical systems with Powerpole connectors, supporting up to 55 amps with finger-proof housings, mounting options, and versatile configurations. Designed for wire-to-wire and wire-to-board applications, these high-current connectors are ideal for industrial, automation, and power distribution projects. They offer reliability, durability, and excellent performance in harsh environments. Available in various colors, with optional grounding and sealing features, Powerpole connectors ensure safe, secure, and efficient electrical connections. Purchase online now for fast delivery and trusted quality.
Order your Anderson Powerpole 15-45 series connectors today and give your power distribution projects the dependable, proven quality they deserve.
Frequently Asked Questions
Where can I buy Anderson Power Products 110G12?
You can click on the BUY or RFQ button to purchase 110G12 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part 110G12?
You can download the 110G12 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of 110G12?
Anderson Power Products
