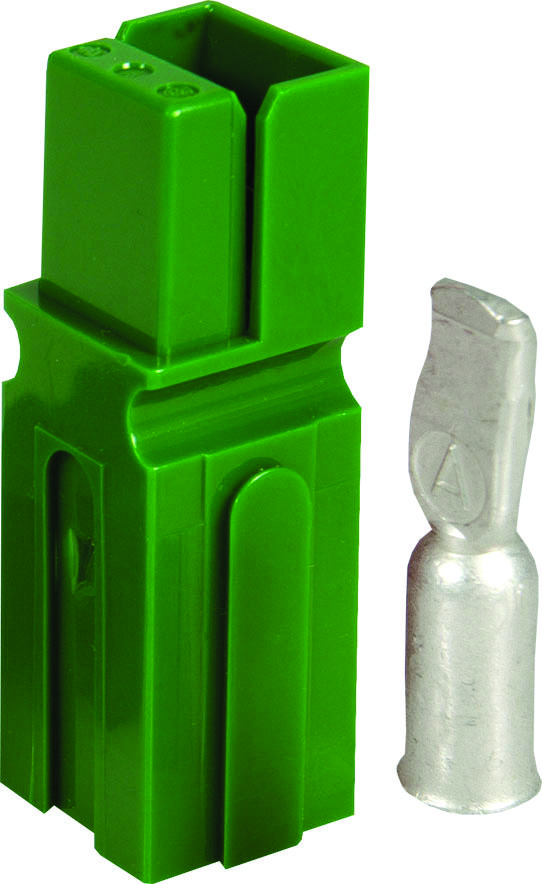

Anderson Power Products 1300G2 Powerpole Connector
The Anderson Power Products Powerpole® connector provides reliable, cost-effective, and flexible connections suitable for wire-to-wire, wire-to-board, and wire-to-busbar applications. The PP75 housings are easy to use with low insertion and withdrawal force, featuring locking mechanisms for secure connection and stability. Designed for versatility, they support wire sizes from #16 AWG to #6, with current ratings up to 120 amps per pole. Made from durable, chemical-resistant materials, these housings are ideal for industrial, automation, and power distribution environments, ensuring safety and long-lasting performance.
Anderson Power Products 1300G2 Powerpole Connector Specifications:
- Current Rating: Up to 120 Amps per pole
- Wire Size Range: #16 AWG (1.3 mm) to #6 AWG (13.3 mm)
- Voltage Rating: 600 V AC/DC
- Operating Temperature: -40°C to +105°C
- Material: Durable, chemical-resistant PBT / PC blend
- Dimensions: Support wire insulations with maximum diameter 0.437 inches (11.1 mm)
- Number of Mating Cycles: 10,000 with silver-plated contacts
- Protection: Suitable for industrial environments with pollution degree 2, IP10
- Mounting Options: Locking dovetails, surface mounting, and stacking compatible housings
- Certifications: UL 1977, CSA
- Contact Types: Wire contacts, PCB contacts, busbar contacts
- Mechanical: Locking features to prevent separation, keyed to prevent cross-mating
- Housing Variants: Standard, chemical resistant, lockable, premate ground
- Accessories: Strain relief grommets, mounting wings, spacers, guide housings, retaining pins
- Plating: Silver or tin-plated contacts for high durability and performance
Buy the Powerpole Series PP75 Power Connector: 1300G2
Enhance your power distribution with Powerpole PP75 connector housings, offering secure locking, support for multiple wire sizes, and robust construction. Perfect for industrial, automation, and power applications, these connectors ensure safe, reliable, and long-lasting connections. Easy to install with low insertion and withdrawal force, they accommodate wire diameters up to 0.437 inches and support up to 120 amps per pole. Purchase online today for fast delivery and dependable power solutions that meet your needs.
Buy Powerpole PP75 connector housing now and experience unmatched reliability, secure connections, and versatile applications for industrial and power solutions.
