Anderson Power Products 1382 Powerpole Connectors
Anderson Powerpole connectors provide a reliable and versatile power connection solution suitable for high current applications up to 350 amps. These stackable, color-coded housings simplify installation and identification, making them ideal for battery systems, power distribution, and automation systems. Equipped with low-resistance silver-plated copper contacts, they ensure excellent electrical performance and durability over thousands of mating cycles. The PP180 series supports wire sizes up to 3/0 AWG and includes busbar contacts for quick, secure connections. UL rated for hot plugging up to 75 amps, these connectors are essential for demanding industrial and automotive applications.
Anderson Power Products 1382 Powerpole Connectors Specifications:
- Current Rating: 350 Amps (wire-to-wire or wire-to-busbar)
- Voltage Rating: 600 V AC/DC
- Wire Size Range: Up to 3/0 AWG (85 mm²)
- Maximum Wire Insulation Diameter: 0.900 inches (22.86 mm)
- Operating Temperature: -4°F to 221°F (-20°C to 105°C)
- Dielectric Withstanding Voltage: 2,200 Volts AC
- Number of Mating Cycles: 10,000
- Contact Resistance: 0.100 milliohms (per 6 inches of 1/0 AWG wire)
- Housing Material: Polycarbonate, UL94 V0 Flammability Rating

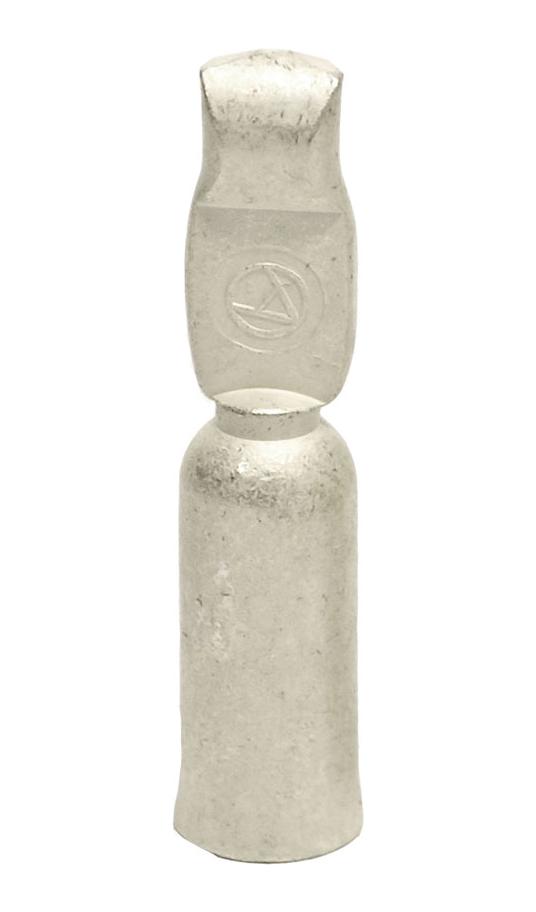

- Contacts: Silver plated copper for low resistance and durability
- Certifications: UL Listed, CSA Certified for electrical safety
- UL Hot Plugging Capable: Up to 75 Amps
- Mechanical Features: Molded color-coded housings, locking mechanism for secure connection
- Busbar Contacts: Include lock nuts, rated for 1/4-20 thread, for quick disconnect power inputs/outputs
- Mounting Accessories: Clamps and retaining pins available for stacking and securing
- Environmental Ratings: IEC 60529 IP10 (touch safety)
Buy the Anderson Series PP180 Powerpole Connectors: 1382
Order Anderson Powerpole connectors now to ensure a reliable, durable power connection solution for your industrial, automotive, or renewable energy system. Featuring high current capacity up to 350 amps, color-coded housings for quick identification, and silver-plated contacts for excellent electrical performance, these connectors are perfect for demanding environments. With UL rating for hot plugging up to 75 amps and a robust design supporting thousands of mating cycles, they deliver safety, ease of use, and longevity for your power distribution needs. Shop online today for fast delivery and expert support.
Buy Anderson Series PP180 connectors now and experience unmatched reliability and performance for high-current applications.
Frequently Asked Questions
Where can I buy Anderson Power Products 1382?
You can click on the BUY or RFQ button to purchase 1382 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part 1382?
You can download the 1382 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of 1382?
Anderson Power Products
