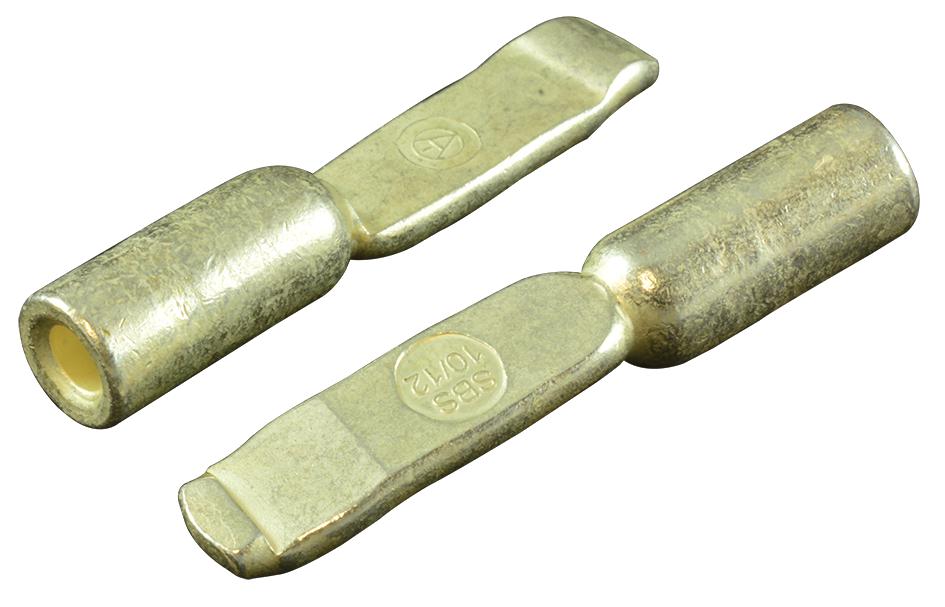

Anderson Power Products 5953BK power connector
The Anderson SB 50 connectors provide cost-effective, reliable DC power and battery connections suitable for industrial, manufacturing, and electronic applications. They feature a die-cast plastic housing with stainless steel springs, allowing UL rated currents up to 120 amps. Designed for wire sizes from #16 to #6, these connectors support high mating cycles and include various color-coded housings and chemical-resistant options. They ensure safe, secure, and versatile connections for power distribution, with accessories such as dust covers, environmental boots, and guide housings for enhanced protection and polarity safety. Their mechanical design supports hot-plugging up to 50 amps, ideal for demanding industrial environments.
Anderson Power Products 5953BK power connector Specifications:
- Current Rating: Up to 120 amps
- Wire Size Range: 16 to 6 AWG (1.3 mm to 13.3 mm)
- Voltage Rating: 600 V AC/DC
- Maximum Insulation Diameter: 0.440 inches (11.2 mm)
- Operating Temperature: -40°C to 105°C
- Mating Cycles: 10,000 with wire and PCB contacts
- Dielectric Withstanding Voltage: 2,200 Volts AC
- Material: Polycarbonate, PBT/PC blend (chemical resistant options available)
- Mechanical: Stainless steel springs, color-coded housings
- Environmental Protection: IP64 with optional boots
- Contacts: Silver or tin-plated copper
- Use: Wire, PCB, busbar connections with quick disconnect features
- Accessories include dust covers, environmental boots, guide housings, and cable clamps.
Buy the Anderson Series SB50 Power Connector 5953BK: Reliable Industrial Power Accessory
Enhance your power distribution setup with Anderson SB 50 connectors, known for their durability and high current capacity. Designed for industrial, manufacturing, and electronic systems, these reliable connectors support up to 120 amps, feature UL ratings, and accommodate wire sizes from #16 to #6. With various color-coded housings, chemical-resistant options, and accessories like dust covers and boots, they provide a safe, versatile, and long-lasting solution. Shop online now for fast delivery and secure your power connections today!
Get Anderson SB50 connectors today—built for reliable power distribution in demanding industrial environments.
Frequently Asked Questions
Where can I buy Anderson Power Products 5953BK?
You can click on the BUY or RFQ button to purchase 5953BK from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part 5953BK?
You can download the 5953BK datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of 5953BK?
Anderson Power Products
