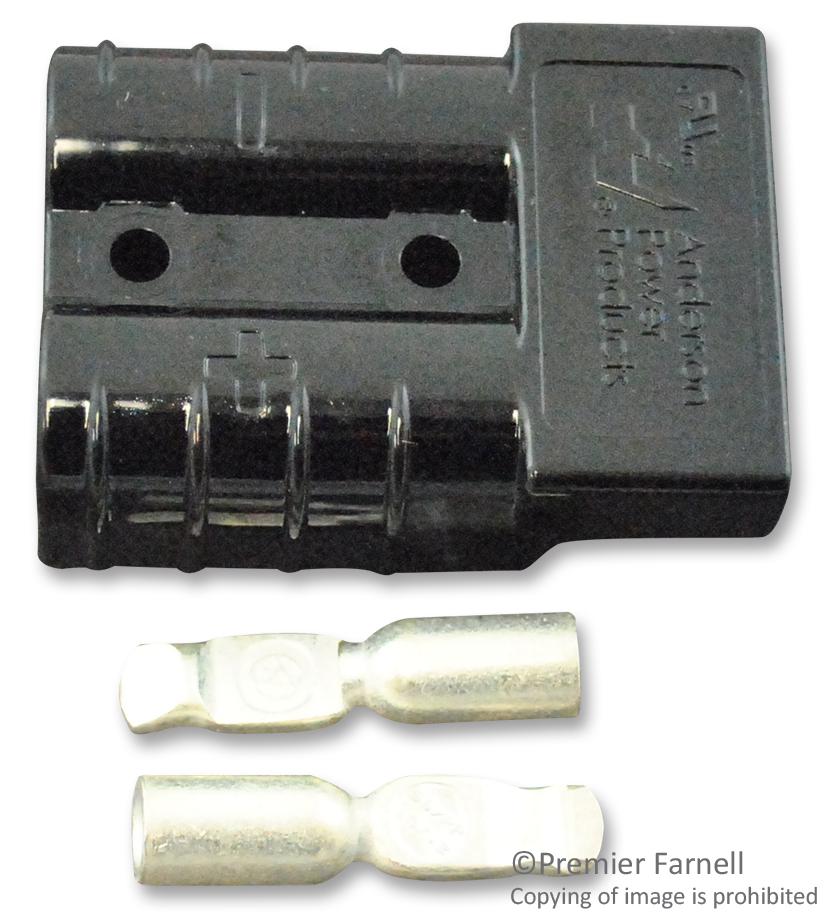

Anderson Power Products 6331G4 Power Connector
The Anderson SB 50 connectors provide reliable, cost-effective, and versatile solutions for electrical connections in industrial and electronic applications. Featuring a one-piece plastic housing and stainless steel springs, these connectors ensure low resistance contact performance and durability. Suitable for wire sizes from #16 to #6 AWG, they support UL rated currents up to 120 amps and are ideal for battery connections, power distribution, and hot-plugging. Available in chemical-resistant housings, they meet rigorous safety standards while offering quick mating, disconnection, and environmental protection. Their robust design ensures long-lasting performance in demanding environments.
Anderson Power Products 6331G4 Power Connector Specifications:
- Current Rating: UL 1977 and CSA 120 Amperes
- Voltage Rating: 600 V AC/DC
- Wire Size Range: #16 to #6 AWG (1.3 mm to 13.3 mm diameter)
- Insulation Diameter: Up to 0.440 inches (11.2 mm)
- Temperature Range: -40°C to +105°C
- Mechanical Cycles: Up to 10,000 mating cycles with silver-plated contacts
- Dielectric Withstanding Voltage: 2,200 V AC
- Contact Material: Copper alloy, silver or tin plated
- Housing Material: Plastic, chemical resistant PBT/PC blend available
- Mating Force: Low force for easy connect/disconnect, varies by contact type
- Dimensions: Varies depending on housing and contact size, suited for #6 AWG wire
- Environmental Protection: IP64 with optional boots, UV resistant
- Certifications: UL listed, complies with IEC 60950-1 standards
- Accessory Compatibility: Includes dust covers, environmental boots, and guides for polarization
Buy the Buy Anderson Power Products SB Connector Part Number 6331G4 Online
Discover the high-quality Anderson SB 50 connectors for reliable power connections in industrial, automotive, and renewable energy applications. Designed for durability, these connectors support currents up to 120 amps, fitting wire sizes from #16 to #6 AWG. Their robust plastic housing and stainless steel springs ensure low resistance contact resistance and long-lasting performance. Ideal for battery hookups, power distribution, and hot-plugging scenarios, they offer quick mating, environmental protection, and optional accessories such as dust covers and environmental boots. Shop online today for secure, high-performance electrical connections.
Buy Anderson Power Products SB 50 connectors now and experience unmatched reliability and performance in electrical power distribution and battery systems.
