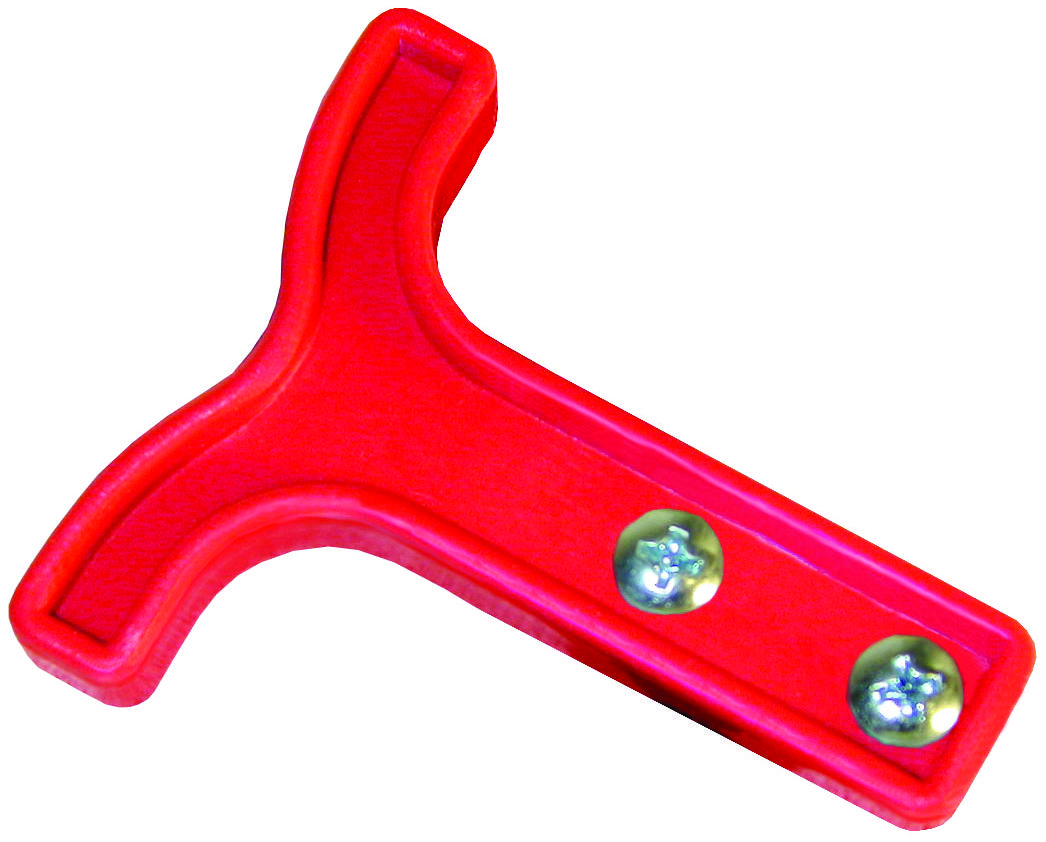

Anderson Power Products SB120HDLRED High-Current Power Connector
The SB120 series connectors are versatile, high-current power connectors rated up to 240 amps with wire sizes from #10 to #1 AWG. They feature color-coded, mechanically keyed housings to prevent cross-mating and ensure circuit separation. The connectors are designed for panel mounting and have options like chemical-resistant housing, UV protection, and water-proof boots. Silver-plated contacts provide superior electrical performance and durability for up to 10,000 mating cycles. Suitable for industrial power applications with robust construction and reliable performance.
Anderson Power Products SB120HDLRED High-Current Power Connector Specifications:
- Current Rating: Up to 240 Amps
- Wire Size Range: #10 to #1 AWG (5.3 mm to 42.4 mm)
- Voltage Rating: 600 V AC/DC
- Housing Material: Polycarbonate, chemical resistant PBT/PC blend option
- Flammability Rating: UL 94V-0
- Contact Material: Copper Alloy, Silver Plated
- Contact Resistance: 0.136 milliohms
- Temperature Range: -40°C to 105°C
- Mating Cycles: 10,000
- Dielectric Withstanding Voltage: 600 V AC
- Flammability Ratings: UL94V-0, Glow Wire 960°C / 800°C
- Environmental Resistance: UV, chemical, water, dirt, mechanical impact
- Dimensions: Housing length varies with options; mounting grooves included
- Approvals: UL 1977, CSA
- Mounting: Panel mounting grooves, clamps, and handles available
Buy the Anderson Series SB120 Power Connector: SB120HDLRED
Purchase the Anderson Series SB120 power connector online today. Designed for high-current distribution up to 240 amps, these connectors feature silver-plated contacts for durability, color-coded housings for easy circuit identification, and options like chemical-resistant and UV-resistant housing. They are ideal for industrial power systems, offering easy panel mounting, robust construction, and long-lasting performance. Protect your power connections with reliable, UL-rated connectors that ensure safety and efficiency in demanding environments.
Get Anderson Series SB120 power connector today—built for high current, reliable performance, and easy mounting in industrial applications.
Frequently Asked Questions
Where can I buy Anderson Power Products SB120HDLRED?
You can click on the BUY or RFQ button to purchase SB120HDLRED from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part SB120HDLRED?
You can download the SB120HDLRED datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of SB120HDLRED?
Anderson Power Products
