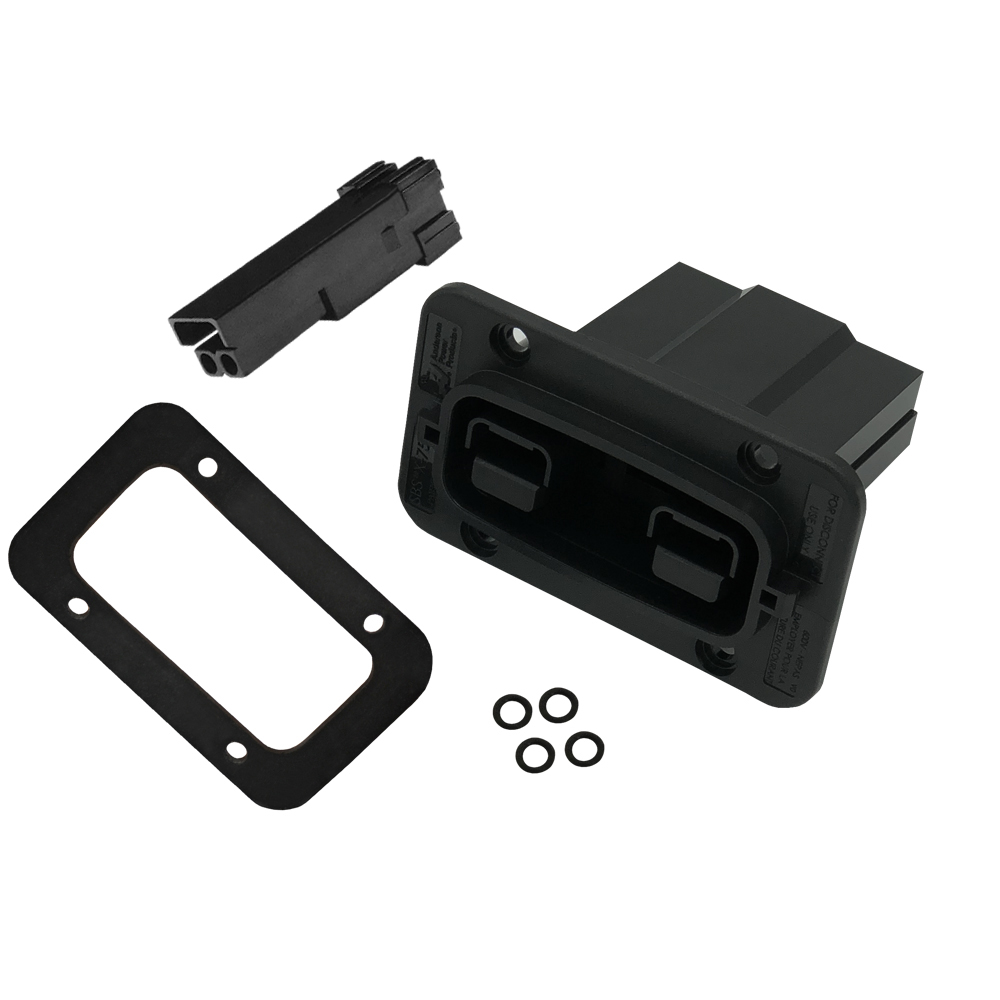

Anderson Power Products SBSX75APMRECKITBLK Sealed Power Connector Kit
The Anderson Power Products SBSX75A sealed waterproof connector kit is designed for demanding industrial and commercial applications. Featuring power contacts rated up to 135A and auxiliary contacts up to 10A, this connector provides robust performance and durability with up to 5,000 mating cycles. The IP68 weatherproof rating ensures protection against water ingress, making it suitable for outdoor environments. Its compact design and positive metal latches contribute to its reliability and ease of use.
Anderson Power Products SBSX75APMRECKITBLK Sealed Power Connector Kit Specifications:
- Current Rating: 140A (UL) for 4 AWG, 100A (UL) for 6 AWG, 95A (UL) for 8 AWG, 75A (UL) for 10 AWG
- Voltage Rating: 600V
- Dielectric Withstanding Voltage: 2200V
- Mating Cycles: 5000
- Operating Temperature: -20°C to 105°C (-4°F to 221°F)
- IP Rating: IP68
- Wire Size Range (Power Contacts): 10 to 4 AWG (2.5 to 25.0 mm²)
- Wire Size Range (Auxiliary Contacts): 14 to 24 AWG (0.50 to 1.5 mm²)
- Material (Housing): PC/PBT
- Material (Latches): Stainless Steel
- Material (Contacts): Silver Plated Copper Alloy
