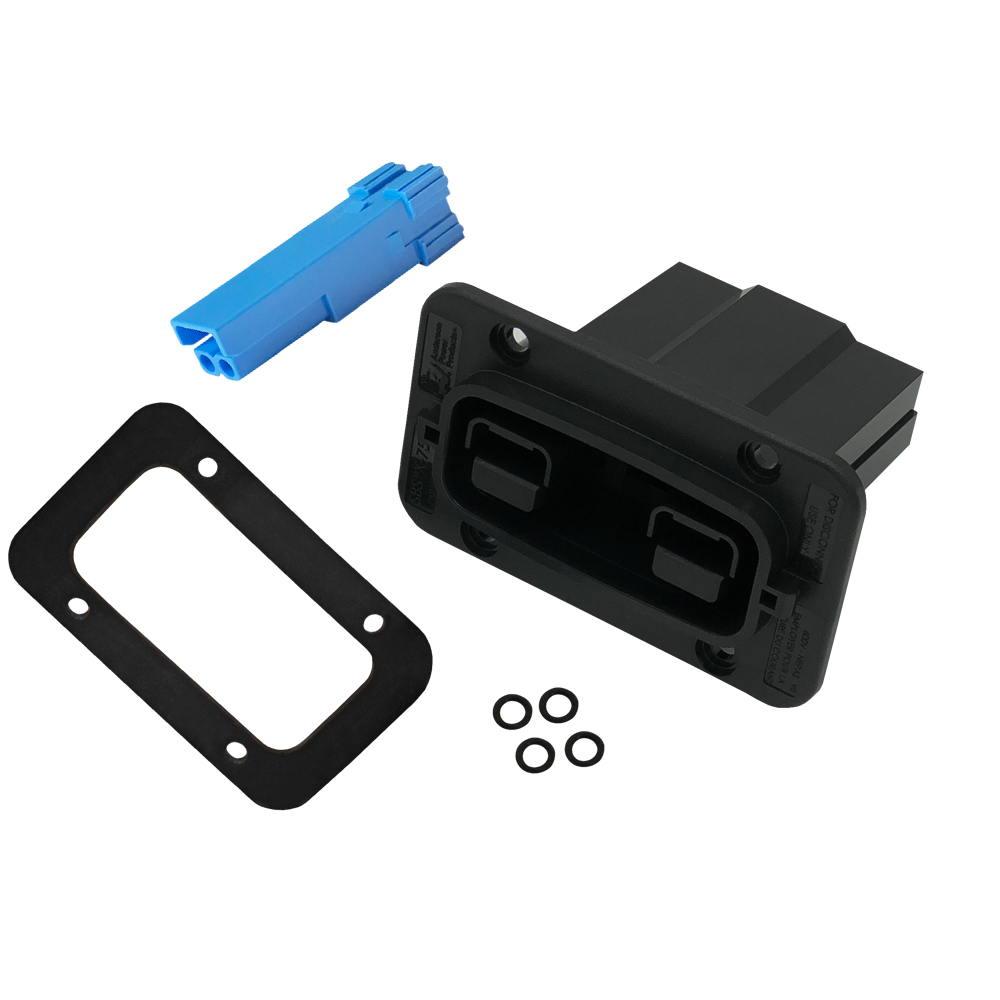

Anderson Power Products SBSX75APMRECKITBLU Sealed Power Connector Kit
The Anderson Power Products SBSX75A sealed waterproof connector is designed for demanding industrial and commercial applications. It provides high-power connectivity with up to 135A power contacts and up to 4 auxiliary contacts rated to 10A, ensuring durability and reliability. The IP68 weatherproof rating protects against water ingress, making it suitable for outdoor environments. Its compact design and positive metal latches safeguard against accidental disconnects, while the built-in cable clamp provides strain relief. This connector is ideal for power equipment, material handling, and marine applications.
Anderson Power Products SBSX75APMRECKITBLU Sealed Power Connector Kit Specifications:
- Current Rating: 140A (UL) for 4 AWG, 100A (UL) for 6 AWG, 95A (UL) for 8 AWG, 75A (UL) for 10 AWG
- Voltage Rating: 600V
- Dielectric Withstanding Voltage: 2200V
- Mating Cycles: 5000
- Operating Temperature: -20°C to 105°C (-4°F to 221°F)
- IP Rating: IP68
- Wire Size Range (Power Contacts): 10 to 4 AWG (2.5 to 25.0 mm²)
- Wire Size Range (Auxiliary Contacts): 14 to 24 AWG (0.50 to 1.5 mm²)
- Material (Housing): PC/PBT
- Material (Latches): Stainless Steel
- Material (Contacts): Silver Plated Copper Alloy
Buy the SBSX75A-PMREC-KIT-BLU ANDERSON POWER PRODUCTS Sealed Power Connector Kit | myMectronic
Purchase the SBSX75A-PMREC-KIT-BLU Sealed Power Connector securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Anderson Power Products SBSX75APMRECKITBLU?
You can click on the BUY or RFQ button to purchase SBSX75APMRECKITBLU from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part SBSX75APMRECKITBLU?
You can download the SBSX75APMRECKITBLU datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of SBSX75APMRECKITBLU?
Anderson Power Products
