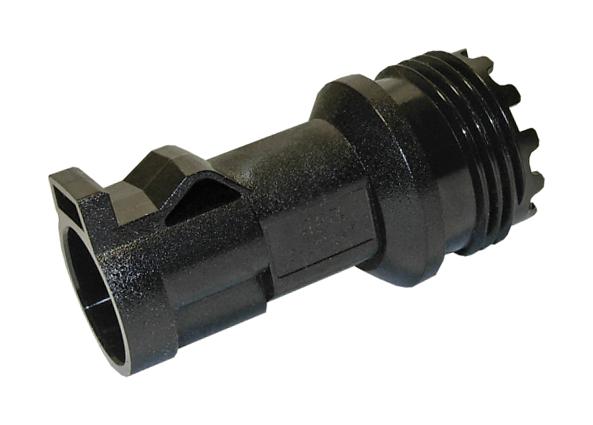

Anderson Power Products SK1019M03 Mini Power Connector
The SPEC Pak Mini PL Series is a rugged, environmentally sealed IP68 connector suited for marine, wind power, lighting, transportation, and industrial automation. It features a manually operated release latch, PowerMod contact technology, and gold-plated pins that handle up to 22 amps at 600 volts. The connector accommodates wires from 24 to 12 AWG, with three pin lengths for sequencing options. It offers touch-safe design, UV and flame-resistant shells, and IP68 weatherability, making it ideal for harsh environments and reliable electrical connections.
Anderson Power Products SK1019M03 Mini Power Connector Specifications:
- Shell Material: PC (Polycarbonate)
- Sealing: IP68, exceeds UL 50E standards
- Rating: 22 Amps at 600 Volts
- Wire Range: 24 to 12 AWG (0.5 to 2.5 mm?)
- Contact Material: Copper Alloy with Tin/Nickel/Gold plating
- Temperature Range: -20°C to 108°C (-4°F to 226°F)
- Connection Cycles: Up to 500 mating cycles
- Mechanical Force: 44N (Pin), 32N (Socket)
- Operating Temperature: -20°C to 105°C
- Dielectric Withstanding Voltage: 2200V AC
- Contact Resistance: 3 milliohms
- Flammability: UL 94V-0, UL 94-0
- Weatherability: UL 746C F1, IEC IP68
- Certifications: UL 1977, CSA
Buy the Anderson Power Products Series SPEC Pak: SK1019M03
Order the Anderson Power Products SK1019M03 Mini Power Connector online today for a rugged, environmentally sealed solution. Designed for demanding environments, this IP68 connector features manual release latch, PowerMod contacts, and gold plating, supporting up to 22 amps at 600 volts. It handles wire sizes from 24 to 12 AWG and offers multiple pin lengths for sequencing. Its UV and flame-resistant shell ensures durability, making it an ideal choice for marine, wind power, and industrial automation applications. Secure your supply chain now with fast, reliable online purchasing.
Buy Anderson Power Products SK1019M03 now and experience unmatched reliability and high-performance environmental sealing in your projects.
Frequently Asked Questions
Where can I buy Anderson Power Products SK1019M03?
You can click on the BUY or RFQ button to purchase SK1019M03 from an authorized Anderson Power Products distributor.
How do I troubleshoot issues or seek technical support for part SK1019M03?
You can download the SK1019M03 datasheet or visit the Anderson Power Products website for support.
Who is the manufacturer of SK1019M03?
Anderson Power Products
