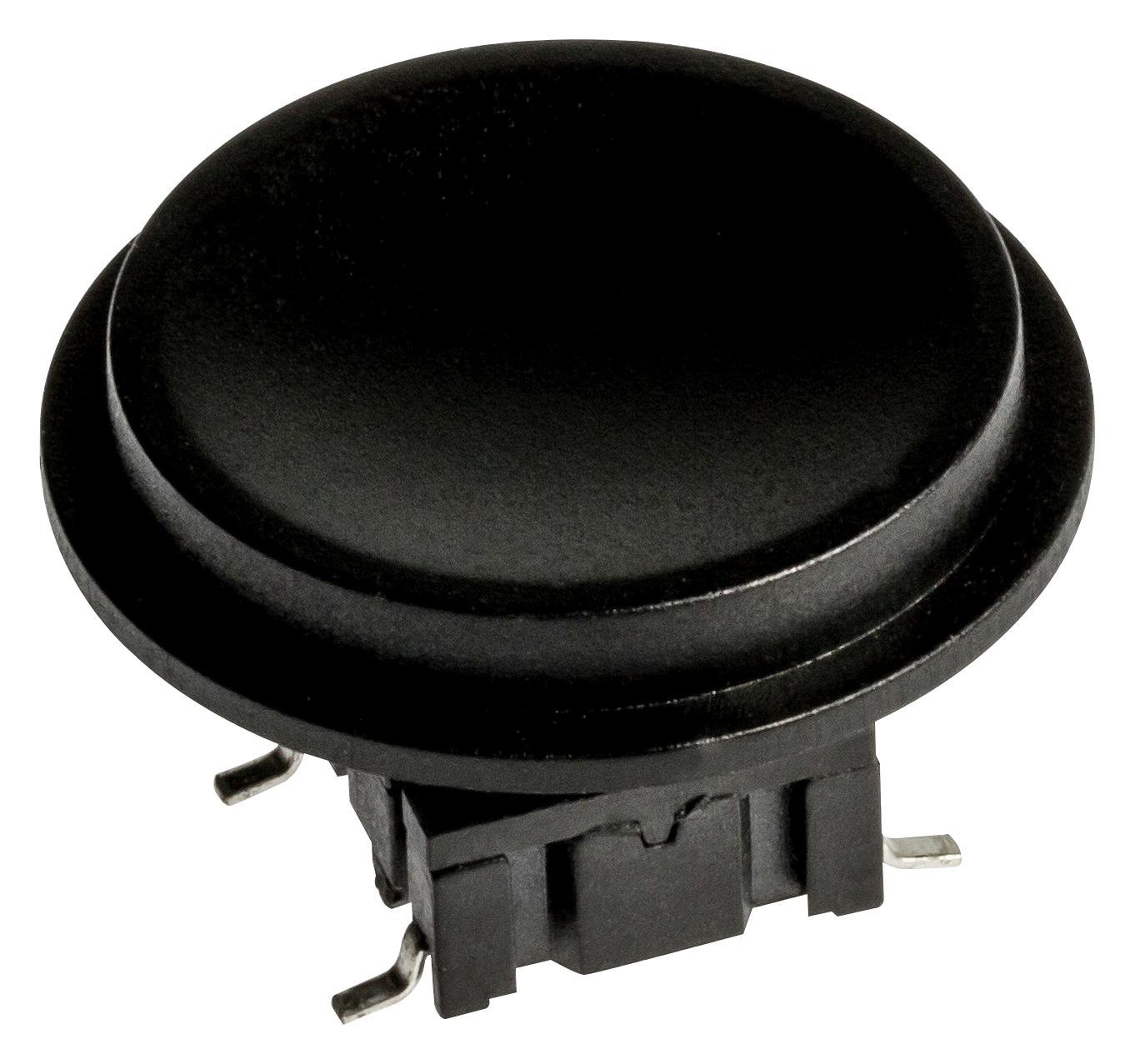

Apem 10C091612306 High Performance Tactile Switch
The 10C series are high-performance tactile switches with ergonomic, slightly concave round caps designed for excellent illumination and reliable operation. Suitable for panel mounting with a 19.8 mm cut-out, these switches feature both SMD and through-hole options, with optional bi-color LEDs for visual indication. Constructed with durable polycarbonate and ABS materials, they support IP67 sealing, withstand temperatures from -40°C to +160°C, and have a lifespan of over 10 million cycles. They are ideal for industrial, control, and automation applications requiring high durability and visibility.
Apem 10C091612306 High Performance Tactile Switch Specifications:
- Panel cut-out: 19.8 mm
- Switch spacing: illuminated 30.2 x 30.2 mm, non-illuminated 24 x 24 mm
- Materials: Top cap - ABS UL94HB (solid) or polycarbonate UL94HB (illuminated), bottom cap - polycarbonate UL94HB
- LED placement: SMD, 14.0 x 7.0 mm, various colors including blue, green, yellow, white, red, high intensity green
- Sealing: IP67 according to IEC 60529
- Operating temperature: -40°C/+160°C (non-illuminated), -30°C/+85°C (illuminated)
- Electrical ratings: 24 VDC, 0.5-50 mA loads, max actuation force 2N to 6.5N
- Travel: 1 mm
- Lifetime: >10 million cycles
- Housing: PPS UL94VO for switch, silicone rubber sealing
- Terminals: SnCu + 2 uNI + 3 pSn100, gold or silver contacts
- Soldering: Max 260°C for 10 sec, suitable for wave and reflow processes
- Standards: MIL-PRF-28855H, RoHS compliant
Buy the APEM Series 10C High Performance Tactile Switch: 10C091612306
Enhance your industrial control systems with the durable and reliable APEM Series 10C tactile switch. Featuring excellent illumination options, IP67 sealing, and high actuation lifespan, this switch ensures maximum performance in challenging environments. With optional bi-color LEDs and robust construction materials like polycarbonate and ABS, it is designed for long-term use. Easy to install with panel cut-out of 19.8 mm, it supports both SMD and through-hole mounting. Get yours online today to benefit from quick delivery, competitive pricing, and trusted quality for your automation and control applications.
Order your APEM Series 10C high performance tactile switch today and give your projects the dependable quality they deserve.
