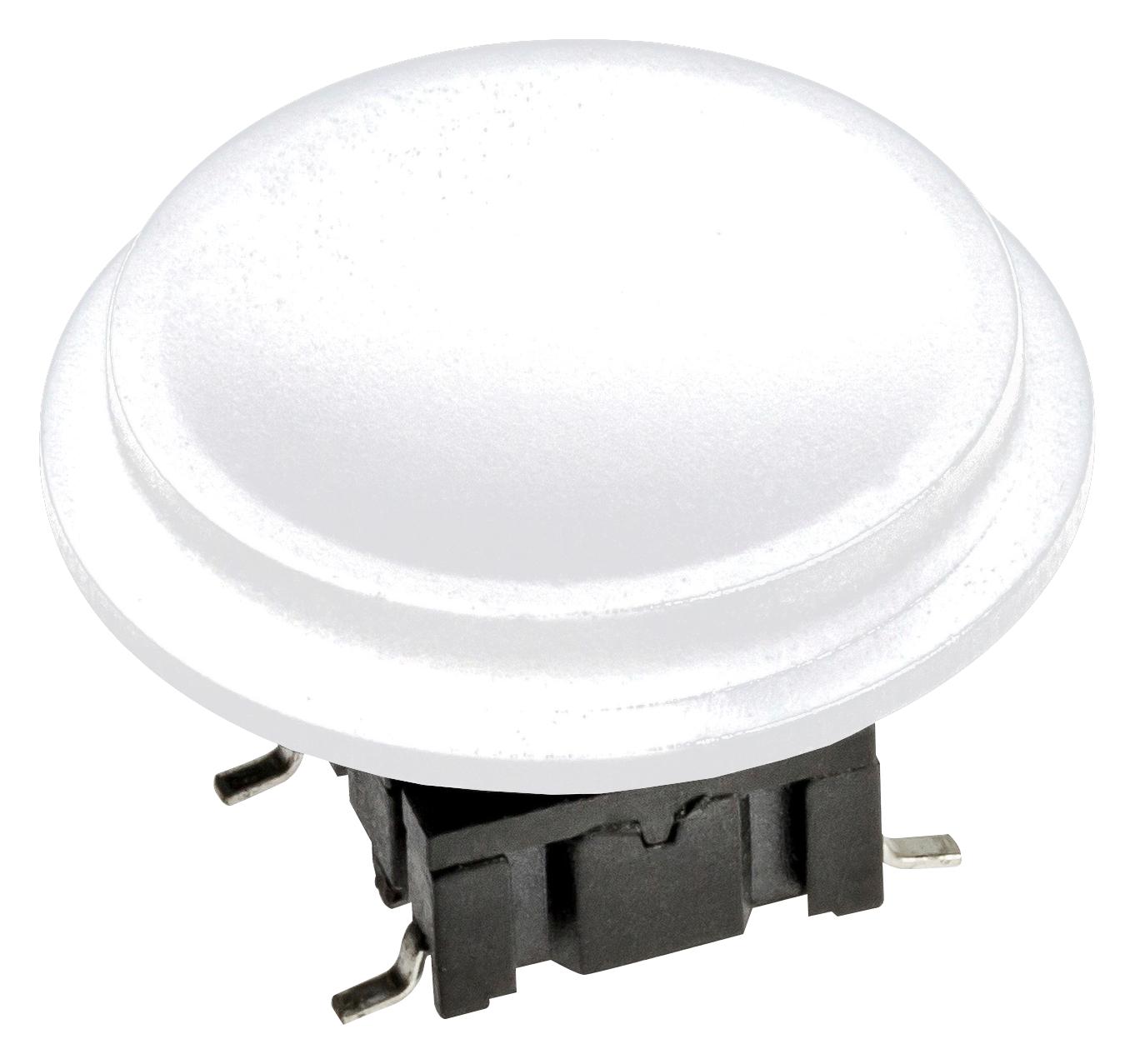

Apem 10C1616LMH11809 Electronic Switch
The 10C series is a high-performance electronic switch with distinctive round, slightly concave caps providing an ergonomic feel. Designed for excellent illumination, the switch features a solid ABS top or polycarbonate material, with a bottom part also in polycarbonate. Suitable for mounting in panel cut-outs of 19.8 mm, it offers options for illuminated or non-illuminated LED placement, with precise dimensions and mounting features. It operates with an actuation force ranging from 2 to 6.5 N, and supports IP67 sealing, making it ideal for rugged applications requiring reliable performance and easy integration.
Apem 10C1616LMH11809 Electronic Switch Specifications:
- Panel cut-out: 19.8 mm
- Switch spacing: illuminated 30.2 x 30.2 mm, non-illuminated 24 x 24 mm
- Material: ABS UL94HB or polycarbonate UL94HB
- Cap dimensions: h=13.7 mm, diameter 14.0 mm
- LED placement: SMD with color options (Blue, Green, Yellow, White, Red, High Intensity Green)
- Actuation force: 2.0 N to 6.5 N (standard), max 115 N for 60 sec
- Sealing: IP67 according to IEC 60529
- Voltage ratings: up to 24 VDC for LED models, contact resistance <30 mΩ
- Operating temperature: -40°C to +85°C (illumination), -40°C to +160°C (non-illuminated)
- Soldering methods: wave (max 260°C for 10s), reflow compatible
- Dimensions: Cap height 13.7 mm, diameter 14 mm, mounting hole 19.8 mm
- Materials: Housing PPS UL94VO, actuator PPS UL94VO, sealing silicone rubber
- Electrical endurance: >10 million cycles
Buy the Buy Brand High-Performance Electronic Switch Part Number 10C1616LMH11809 Online
Purchase the Brand 10C1616LMH11809 high-performance electronic switch online today. Featuring ergonomic round caps, excellent illumination options, and IP67 sealing, it is ideal for rugged environments. Easy to install with precise panel cut-outs of 19.8 mm, it maintains reliable operation over millions of cycles. Whether for industrial, automation, or control systems, this switch offers a robust solution with multiple LED color options and a broad temperature range, ensuring excellent durability and performance in diverse environments.
Order your Brand 10C1616LMH11809 high-performance IP67 switch today and ensure reliable, rugged performance for demanding applications.
Frequently Asked Questions
Where can I buy Apem 10C1616LMH11809?
You can click on the BUY or RFQ button to purchase 10C1616LMH11809 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part 10C1616LMH11809?
You can download the 10C1616LMH11809 datasheet or visit the Apem website for support.
Who is the manufacturer of 10C1616LMH11809?
Apem
