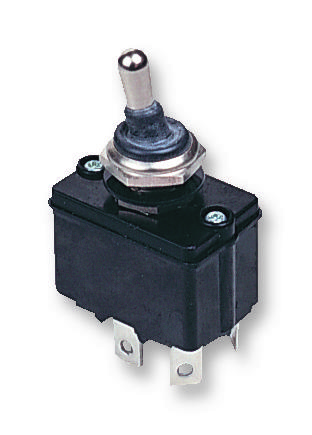

Apem 3641NF2 Sealed Outdoor Toggle Switch
Sealed toggle switch designed for outdoor applications, featuring double pole configuration with solder lug and quick connect terminals. The switch operates with ON, OFF, and NONE positions to suit various control needs. It is equipped with sealing features including an O-ring, elastomer gasket, boot, and sealing washers to ensure protection against environmental elements. Made with phenolic resin case, solid silver contacts, and brass nickel-plated actuator and bushing, this switch offers reliable performance with a 10,000 cycle electrical life and safety ratings suitable for various outdoor systems.
Apem 3641NF2 Sealed Outdoor Toggle Switch Specifications:
- Mechanical configuration: Double pole, ON-OFF-NONE positions
- Terminals: Solder lug and quick connect options
- Materials: Phenolic resin case, solid silver contacts, brass actuator and bushing
- Sealing features: O-ring, elastomer gasket, sealing washer U60, boot
- Electrical ratings: 12A 28VDC max resistive load, 10,000 cycles life
- Operating temperature: -40°C to +85°C
- Dielectric strength: 2500 Vrms between terminals, 3000 Vrms to frame
- Mounting: Panel thickness up to 2 mm
- Marking: UL approved, optional UL marking available
- Packaging: 25 pieces per type and color
Buy the Apem Series 3SGOONF Sealed Toggle Switch: 3641NF2
Purchase the Apem sealed outdoor toggle switch 3641NF2 online—designed for harsh environments with double pole configuration, solder lug and quick-connect terminals, sealing features, and reliable operation. Its robust phenolic resin case, solid silver contacts, and brass actuator provide durability and safety for outdoor control systems. With UL approval, ease of installation, and extensive environmental sealing, this switch is ideal for demanding outdoor applications. Order now to ensure dependable performance and seamless integration into your control systems.
Get Apem 3641NF2 today—built for outdoor durability with sealed design and reliable switch operation.
Frequently Asked Questions
Where can I buy Apem 3641NF2?
You can click on the BUY or RFQ button to purchase 3641NF2 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part 3641NF2?
You can download the 3641NF2 datasheet or visit the Apem website for support.
Who is the manufacturer of 3641NF2?
Apem
