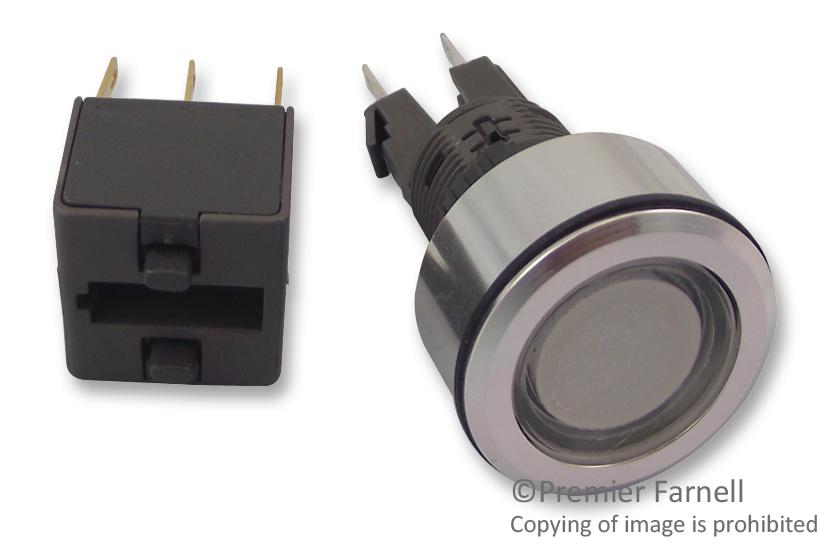

Apem A1PCA1X220K403 Industrial Control Switch
The product is a high-quality industrial control switch featuring a flush mount design with IP65 environmental protection. It includes an engraved aluminium operator button with a 16 mm panel cut-out, suitable for various functions like pushbutton, indicator, keylock, rotary lever, or emergency stop. The switch is equipped with silver or gold-plated contacts rated up to 6A 250VAC, suitable for resistive loads. It offers a mechanical life of over 50,000 cycles, with ignition-resistant insulation and robust construction, ideal for industrial automation and control systems.
Apem A1PCA1X220K403 Industrial Control Switch Specifications:
- Panel cut-out: 16 mm (.630)
- Environmental protection: IP65 front, IP40 back panel
- Material: Engraved aluminium operator, metallic bezel
- Contact material: Silver, gold plated
- Current/voltage rating: 6A 250VAC, 10mA 5VAC (min), resistive load
- Mechanical life: > 50,000 cycles
- Operating temperature: -20°C to +55°C
- Dielectric strength: 750V between open contacts
- Contact gap: > 1mm (.039)
- Solder/quick-connect terminals: 2.8 mm (.110)
- Dimensions: Panel cut-out 16 mm, overall size compatible with standard panels
- Functionality: Pushbutton, indicator, keylock, rotary, emergency stop options available
- Sealing: Sealed IP65 front for harsh environments
- Approval: UL, CSA, EN 61058-1 certifications
Buy the ApeM A1PCA1X220K403 – Reliable Industrial Control Switch for Automation
Purchase the ApeM A1PCA1X220K403 online today and secure a durable, high-performance industrial control switch. Featuring a 16 mm panel cut-out, engraved aluminium operator, and IP65 sealing, it is perfect for automation, machinery, and control panels. With silver contacts rated for 6A 250VAC and a lifespan exceeding 50,000 cycles, this switch ensures reliability under harsh conditions. Easy to install with quick-connect terminals, it suits a variety of controls including pushbuttons, indicators, keylocks, rotary switches, and emergency stop functions. Order now to improve your project's safety and durability.
Order your ApeM A1PCA1X220K403 today and enhance your industrial automation projects with this robust, IP65-rated control switch.
