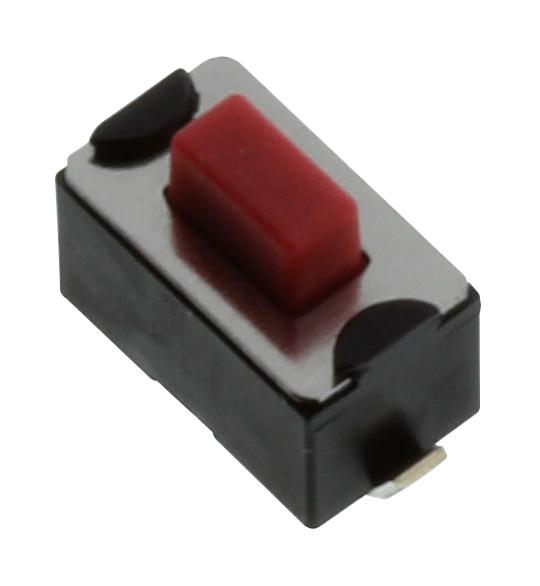

Apem ADTSM32RVTR Tactile Switch
The ADTSM32RVTR is a compact tactile switch designed for high-density mounting in industrial and electronic applications. Featuring a sharp click feel with positive tactile feedback, it offers high reliability and durability with a mechanical life of up to 50,000 cycles. Made with stainless steel and high-temperature thermoplastic materials, it withstands harsh conditions. The switch features a 3.5 x 6mm size, a 0.25mm stroke, and operates within -25°C to +70°C. Suitable for various electronics requiring tactile input and proven resistance to vibration and shock.
Apem ADTSM32RVTR Tactile Switch Specifications:
- Size: 3.5 x 6mm
- Material: Stainless Steel cover, UL94V-0 Nylon base and stem, Silver-clad contact, Brass terminals with silver plating
- Actuation Force: 520gf (Yellow), 320gf (Salmon), 260gf (Red), 160gf (Brown)
- Electrical Life: 50,000 cycles (160gf, 320gf), 30,000 cycles (260gf, 520gf)
- Rating: 50 mA, 12 VDC
- Contact Resistance: Max 100 milliohms
- Insulation Resistance: Min 100 megohms at 500 VDC
- Dielectric Strength: 250 VAC for 1 minute
- Stroke: 0.25mm, Tolerance ±0.2mm
- Operating Temperature: -25°C to +70°C
- Vibration Resistance: MIL-STD-202F Method 201A
- Shock Resistance: MIL-STD-202F Method 213B
- Soldering: Hand (max 320°C for 2.5 seconds), Reflow (max 260°C), Wave (max 360°C for 5 seconds)
Buy the APEM ADTS3 U–2013 Reliable Tactile Switch for Industrial Applications
Purchase the APEM ADTS3 tactile switch today online for reliable high-density mounting in industrial and electronic applications. Designed with durable materials like stainless steel and high-temperature thermoplastic, it offers a sharp click feel and positive tactile feedback. Ideal for applications requiring high reliability, vibration resistance, and long cycle life. Suitable for various environments with a wide operating temperature range. Experience seamless performance and easy installation that ensures consistency in demanding industrial circuits.
Buy APEM ADTS3 tactile switch now with durable design and high reliability perfect for high-density mounting and industrial controls.
Frequently Asked Questions
Where can I buy Apem ADTSM32RVTR?
You can click on the BUY or RFQ button to purchase ADTSM32RVTR from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part ADTSM32RVTR?
You can download the ADTSM32RVTR datasheet or visit the Apem website for support.
Who is the manufacturer of ADTSM32RVTR?
Apem
