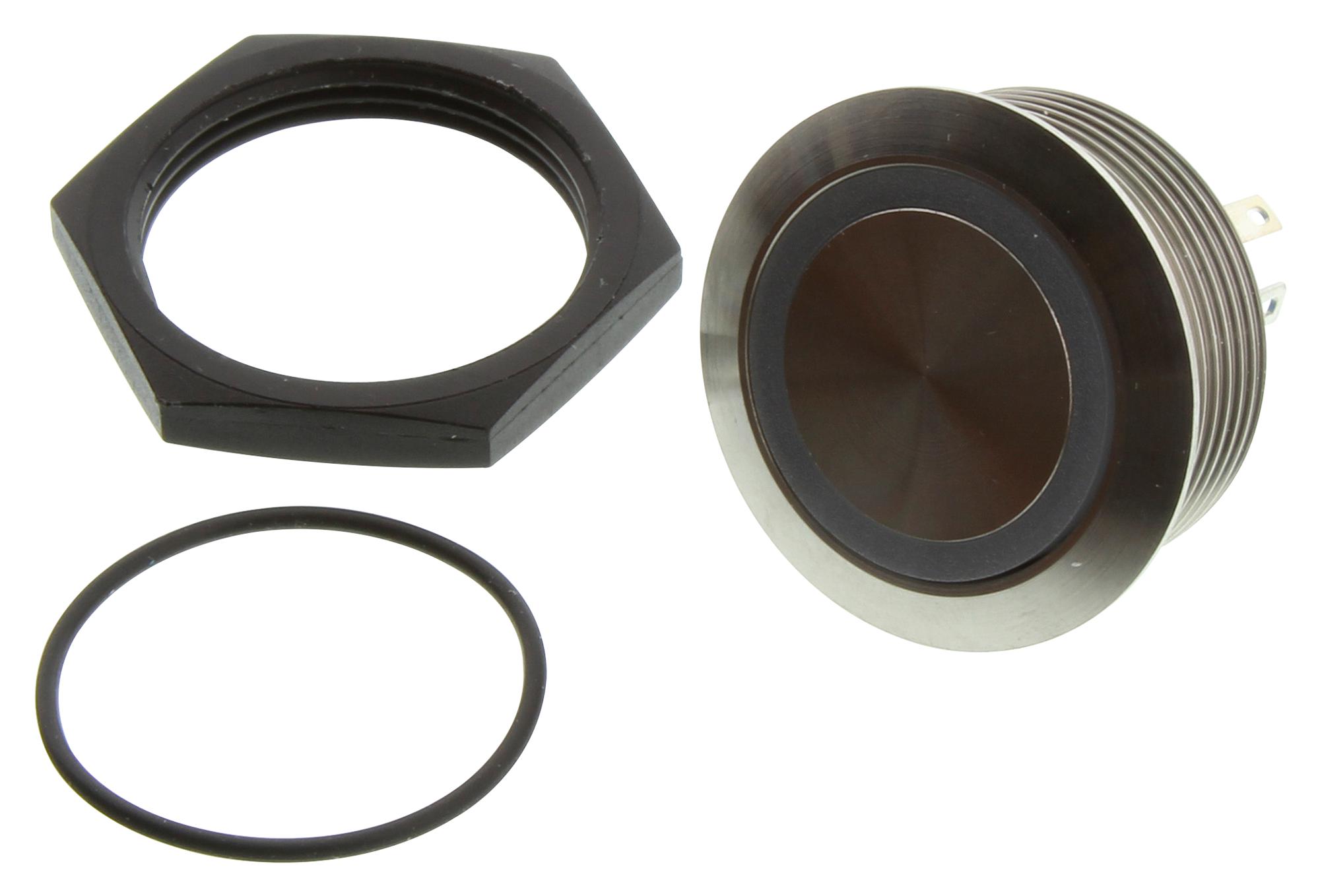

Apem AV51022000074BK Security Pushbutton Switch
The AV series security pushbutton switches feature a 30 mm illuminated momentary NC/NO design with large actuator and illuminated ring for enhanced visibility. These switches are constructed with a polyamide, glass-filled case and silver contacts, offering robust environmental resistance including optional IP67 sealing and EN 62262 robustness. They support resistive loads up to 1 A at 30 VDC, with LED options in various colors and voltages. Suitable for industrial control, automation, and safety applications, they feature easy mounting, high durability, and reliable electrical performance across -30 °C to +85 °C operating temperatures.
Apem AV51022000074BK Security Pushbutton Switch Specifications:
- Panel cut-out: 30.2 mm (1.189)
- Activation travel: 2.5 mm + 0.3 mm
- Operating force: 5 N + 2 N
- Electrical rating: 1 A 30 VDC resistive load
- LED voltages: 12 VDC, 24 VDC, 48 VDC
- Material: Polyamide, glass filled case, silver contacts
- Sealing: Optional front panel sealing IP67
- Operating temperature: -30 °C to +85 °C (-22 °F to +185 °F)
- Durability: Mechanical life up to 1,000,000 cycles, electrical life 250,000 cycles
- Contacts: Silver, initial resistance 100 mΩ max
- Insulation resistance: 10 MΩ min at 500 VDC
- Dielectric strength: 500 Vrms between terminals, 1000 Vrms to frame
- Mounting: Panel thickness 1 to 6 mm (.039 to .236 inches)
- Materials: Bushing and actuator options in nickel plated brass or stainless steel 316
- Protection options: No sealing, front IP67 sealing available
Buy the BrandName AV51022000074BK – Reliable Industrial Pushbutton Switch for Industrial Applications
Purchase the brand’s AV series security pushbutton switch online today and ensure your industrial control systems operate reliably. Featuring a 30 mm illuminated actuator, NC/NO contacts, and optional sealing up to IP67, this switch provides robust performance in harsh environments. Its high durability supports millions of cycles, and multiple LED color options are available for visibility. Easy to install and designed for industrial applications, this switch guarantees safety and efficiency for manufacturing, automation, and control tasks. Order now for quick delivery and expert support.
Buy BrandName AV51022000074BK now and experience unmatched reliability and high durability for industrial automation and control systems.
Frequently Asked Questions
Where can I buy Apem AV51022000074BK?
You can click on the BUY or RFQ button to purchase AV51022000074BK from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part AV51022000074BK?
You can download the AV51022000074BK datasheet or visit the Apem website for support.
Who is the manufacturer of AV51022000074BK?
Apem
