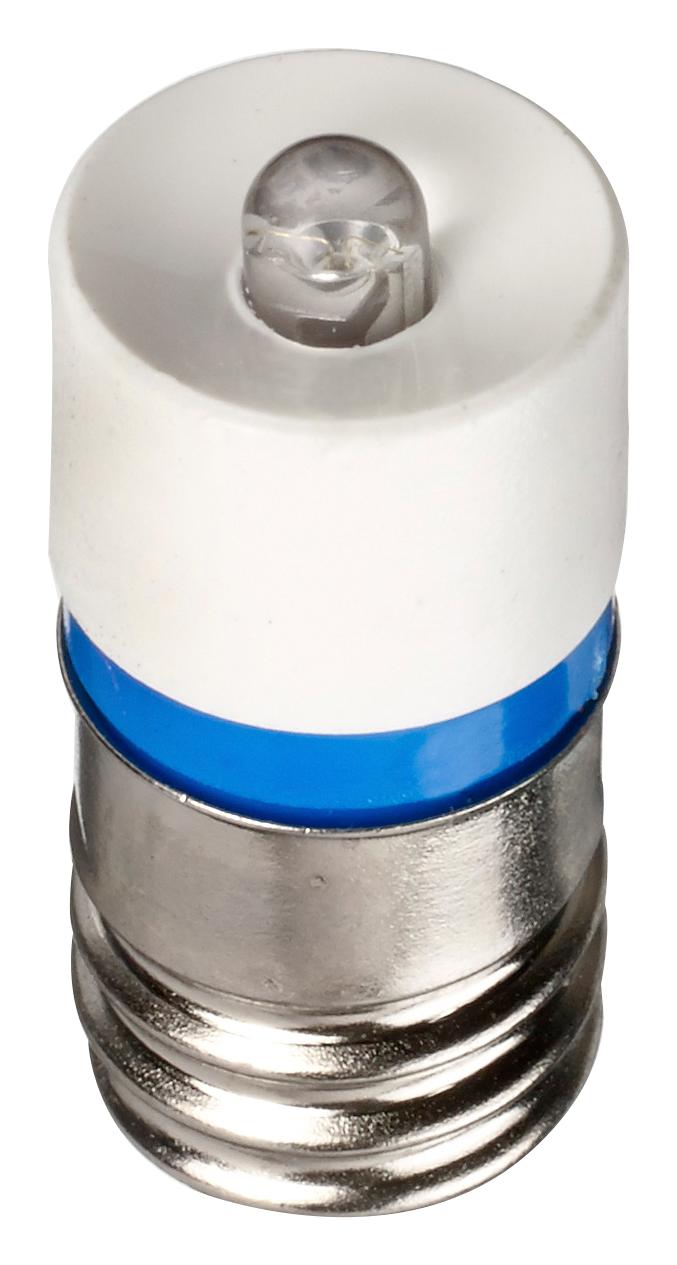

Apem E10SB24A LED illumination module
The E10 series consists of screw cap based LED modules designed for bulb replacement, featuring single or multichip illumination options. These LEDs operate within an ambient temperature range of -20 °C to +70 °C and are suitable for a wide voltage range from 6 VDC to 230 VAC, with current ratings between 9 to 17 mA. Made from polycarbonate for the body and nickel-plated brass for the base, they offer robust and reliable performance. Available in multiple colors including red, green, yellow, blue, and white, with luminous intensities varying by voltage and configuration, suitable for industrial and electronic applications.
Apem E10SB24A LED illumination module Specifications:
- Series Type: E10
- Body Material: Polycarbonate
- Base Material: Nickel plated brass
- Operating Temperature Range: -20 °C to +70 °C
- Voltage Range: 6 VDC to 230 VAC
- Current Range: 9 to 17 mA
- Luminous Intensity: From 105 to 2,070 mcd depending on voltage and configuration
- Colors Available: Red, Green, Yellow, Blue, White
- Build: Single chip or multichip configurations
- Voltage & Current: 6V-9/17mA, 12V-9/17mA, 24V-9/17mA, 48V-8mA, 130VAC-5mA, 230VAC-3mA
- Color-Specific Luminous Intensity: Red 1,750 to 375, Green 1,610 to 345, Yellow 630 to 135, Blue 490 to 105, White 2,070 to 470 (med), depending on voltage
Buy the APEM E10 Series Reliable LED Illumination for Industrial Applications
Discover the high-performance LED modules from the E10 series, designed for replacement lighting and illumination tasks in industrial environments. These versatile modules offer single or multichip configurations, multiple color options, and operate across a wide voltage range from 6V to 230VAC. Made with durable polycarbonate bodies and nickel-plated brass bases, they provide reliable illumination with luminous intensities up to 2,070 mcd, suitable for diverse electronic, industrial, and control applications. Order online today for fast, dependable delivery.
Buy APEM E10 series LED modules now and experience reliable LED illumination with versatile voltage and color options for your industrial needs.
Frequently Asked Questions
Where can I buy Apem E10SB24A?
You can click on the BUY or RFQ button to purchase E10SB24A from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part E10SB24A?
You can download the E10SB24A datasheet or visit the Apem website for support.
Who is the manufacturer of E10SB24A?
Apem
