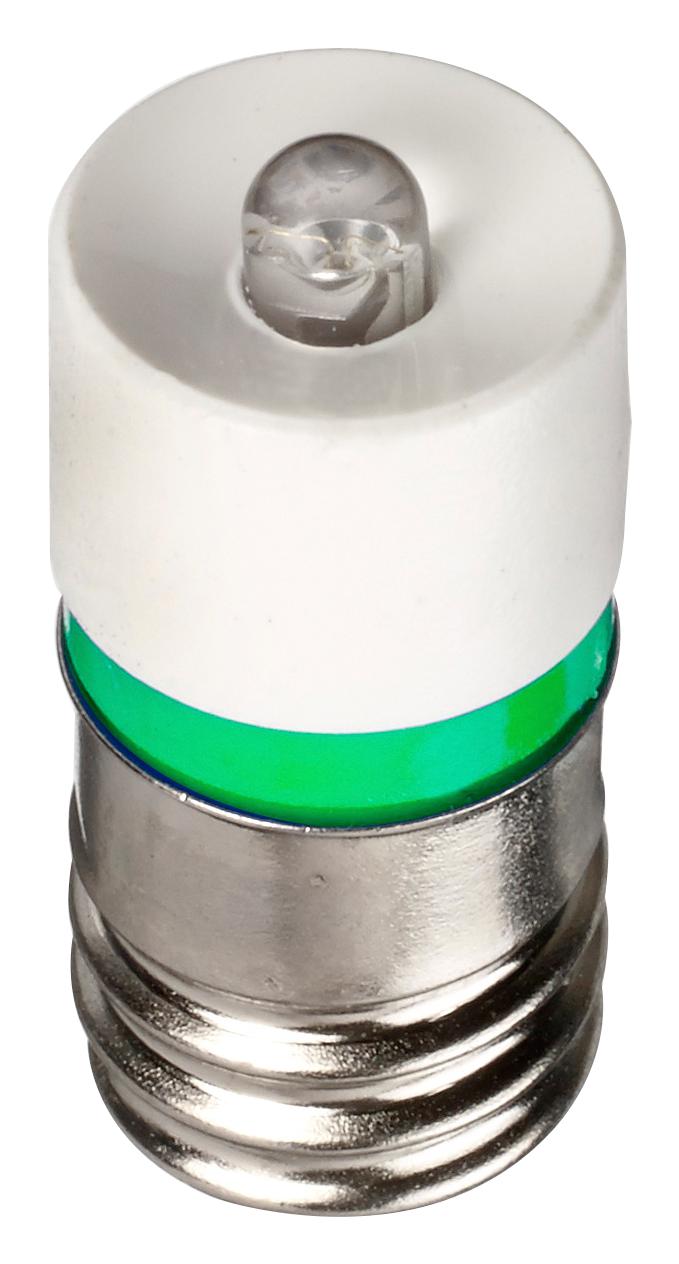

Apem E10SG12A LED Indicator Light
The E10 series LEDs are screw cap-based illumination components suitable for bulb replacement in various applications. These LEDs feature single and multichip configurations with operating temperatures from -20 °C to +70 °C and voltage ranges from 6 VDC to 230 VAC, with current ratings between 9 and 17 mA. Made of polycarbonate and nickel-plated brass, they provide high luminous intensity across multiple colors including red, green, yellow, blue, and white, with luminous outputs up to 2,070 mcd. Ideal for indicators, signage, and general illumination where reliable, durable LED lighting is required.
Apem E10SG12A LED Indicator Light Specifications:
- Body Material: Polycarbonate
- Base Material: Nickel plated brass
- Operating Temperature Range: -20°C to +70°C
- Storage Temperature Range: -20°C to +70°C
- Voltage Range: 6 VDC to 230 VAC
- Current Range: 9 to 17 mA
- Luminous Intensity: Up to 2,070 mcd depending on version
- Colors Available: Red, Green, Yellow, Blue, White
- Color-Specific Luminous Intensity (med): Red 1750, Green 1610, Yellow 630, Blue 490, White 2070
- Series Types: Single Chip and Multi Chip
- Multi Chip Configuration: 3x LED chips in series
- Additional Voltage Options: Contact APEM for specifications
- Construction: Screw cap for easy bulb replacement
Buy the APEM E10 Series – Reliable LED Indicator Lights for Industrial Applications
Experience the reliability of APEM E10 series LED indicator lights, designed for industrial environments and signage. These screw cap LEDs feature single and multichip configurations with high luminous intensity across multiple colors. Operating from -20°C to +70°C and voltage ranges from 6 VDC to 230 VAC, they provide long-lasting illumination for indicators, control panels, and machinery. Made with durable polycarbonate and nickel-plated brass, they ensure excellent performance and easy replacement, making them ideal for demanding industrial applications. Buy online now for fast delivery and quality assurance.
Buy APEM E10 series LEDs now and enhance your industrial lighting with durable, high-brightness indicator solutions suitable for various voltage ranges and colors.
Frequently Asked Questions
Where can I buy Apem E10SG12A?
You can click on the BUY or RFQ button to purchase E10SG12A from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part E10SG12A?
You can download the E10SG12A datasheet or visit the Apem website for support.
Who is the manufacturer of E10SG12A?
Apem
