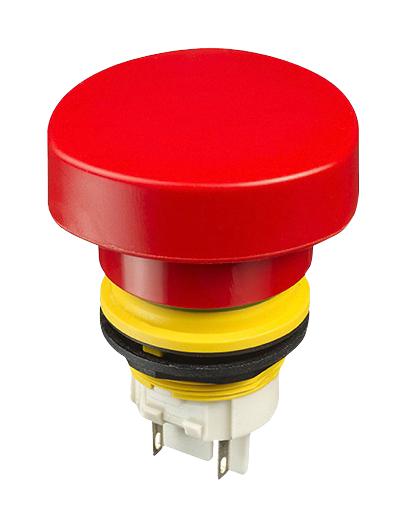

Apem ECBTTF002A Emergency Switch
The EC series compact emergency switches feature a panel cut-out of 22 mm, with front sealing IP65 for robust protection. They utilize a single pole, normally closed contact, rated at 3 A/120 V AC and 1.5 A/240 V AC. Built with durable PA66 case, actuator, and bushing, they comply with EN 60947-5-1 and EN 60947-5-5 standards. These switches handle up to 6,050 cycles, operate within -35°C to +70°C, and are suitable for panels 1-4 mm thick. Easy to install with integrated connectors and a torque limit of 1.5 Nm.
Apem ECBTTF002A Emergency Switch Specifications:
- Panel cut-out: 22 mm
- Front sealing: IP65
- Operating temperature: -35°C to +70°C
- Storage temperature: -40°C to +85°C
- Panel thickness: 1-4 mm
- Material: PA66 (case, actuator, bushing)
- Contacts and terminals: Brass with silver plating
- Electrical ratings: 3 A/120 V AC, 1.5 A/240 V AC, 6,050 cycles lifespan
- Dielectric strength: 2,500 Vrms
- Bushing: PA66
- Torque: 1.5 Nm maximum
- Electrical function: Single pole, Normally closed
- Compliance: EN 60947-5-1, EN 60947-5-5
- Certifications: CE
- Environmental: Operating temperature -35°C to +70°C, Storage -40°C to +85°C
Buy the Generic EC Series – Reliable Emergency Switches for Industrial Applications
Purchase the EC series emergency switches online now to enhance your safety control systems with reliable, compact, and IP65 sealed switches. These switches feature a 22 mm panel cut-out, single pole normally closed contact rated at 3 A/120 V, and are constructed from durable PA66 material for industrial use. Easy mounting with integrated connectors, adherence to international safety standards EN 60947-5-1 and EN 60947-5-5, and operating within -35°C to +70°C make these switches ideal for demanding environments. Ensure safety and compliance conveniently with our fast online ordering option.
Get EC series emergency switches today — built for industrial safety and long-lasting durability in demanding environments.
