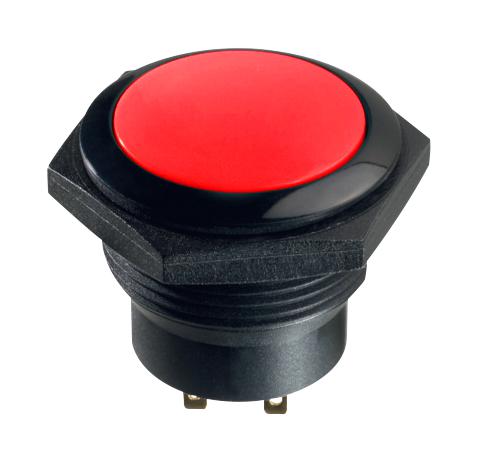

Apem FPDR3D1462C1XXX Industrial Control Pushbutton Switch
The FP series are fully illuminated pushbutton switches with a 30 mm bushing, available in momentary or latching configurations. They feature LED or non-illuminated options, with various contact materials including silver and gold-plated contacts rated up to 4A at 12VDC. Designed for industrial use, these switches have a panel thickness compatibility of 1-2.5 mm for snap-in models and up to 9 mm for threaded bushings. They achieve high electrical longevity with up to 1 million cycles for momentary gold contact versions, making them reliable for demanding applications.
Apem FPDR3D1462C1XXX Industrial Control Pushbutton Switch Specifications:
- Bushing Diameter: 30 mm
- Panel Thickness (snap-in): 1.5 to 2.5 mm; (threaded): up to 9 mm
- Total Travel: 2.8 mm + 0.5 mm
- Operating Force: 8 N ± 2 N
- Operating Temperature: -40°C to +75°C
- Electrical Ratings: 4A 12VDC (resistive load), 200mA 12VDC (gold contacts)
- Contact Resistance: 50 mΩ max.
- Insulation Resistance: ≥ 1 GΩ at 500VDC
- Dielectric Strength: ≥ 1,000 VRMS, 50 Hz
- Electrical Life: 1 million cycles (gold contacts), 400,000 cycles (silver contacts) for momentary; 200,000 cycles for latching
- Materials: Case - PA46, Bushing/Bezel - ABS, Actuator - PA12, Contact Material - Silver or Gold Plated
- Initial Contact Resistance: 50 mΩ max.
- Torque (nut): 2 Nm max.
Buy the APEM FP Series Fully Illuminated Pushbutton Switches – Reliable 30 mm Industrial Control Components
Order the APEM FP series illuminated pushbutton switches online today and enhance your control panels with durable, high-quality 30 mm switches. Featuring sleek design, multiple illumination options, and long electrical life, these switches offer exceptional performance in harsh environments. Whether you need momentary or latching functions, gold or silver contacts, or various symbol options, the FP switches provide a flexible solution for industrial automation, machinery, and control systems. Enjoy fast delivery and seamless online purchasing for all your control needs.
Buy APEM FP series pushbutton switches now and experience unmatched reliability and performance for demanding industrial applications.
Frequently Asked Questions
Where can I buy Apem FPDR3D1462C1XXX?
You can click on the BUY or RFQ button to purchase FPDR3D1462C1XXX from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part FPDR3D1462C1XXX?
You can download the FPDR3D1462C1XXX datasheet or visit the Apem website for support.
Who is the manufacturer of FPDR3D1462C1XXX?
Apem
