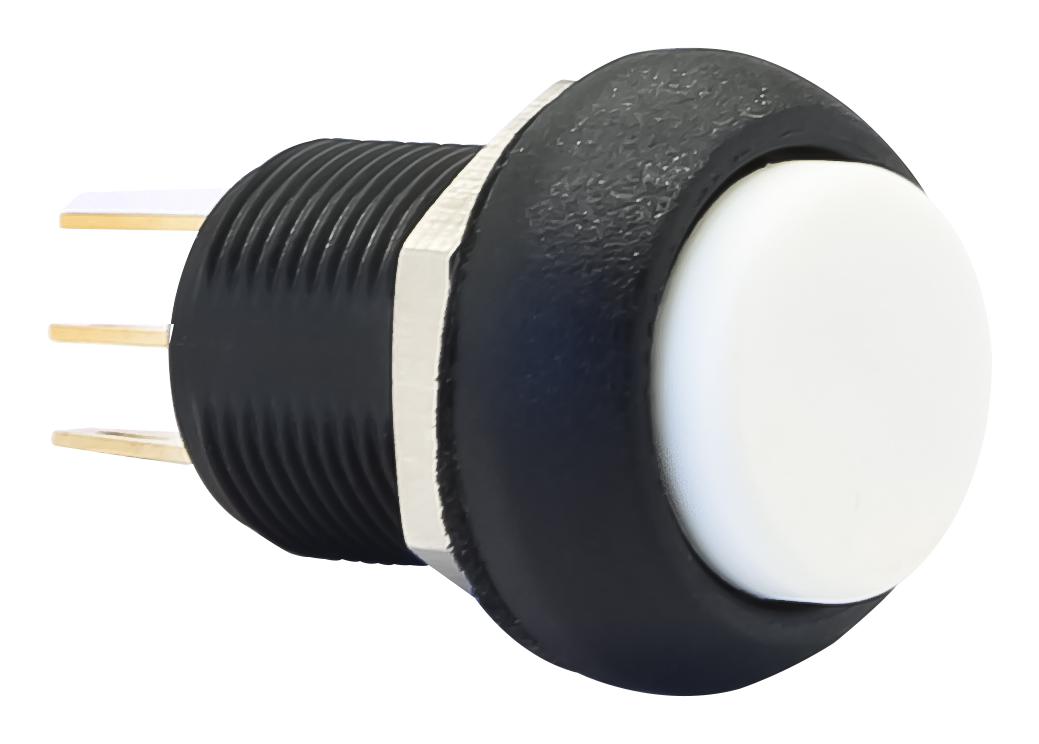

Apem IMP7Z472UL Industrial Pushbutton Switch
The IMP7Z472UL is a sealed snap-action pushbutton switch with a 12 mm bushing, designed for industrial control and automation applications. It features tactile feedback with an audible click, a high current/voltage rating of 3A at 28 VDC, and an IP67 sealed enclosure suitable for harsh environments. The switch has a flat actuator, momentary operation, and includes options for actuator colors and mounting accessories. It complies with UL and IEC standards, offering long electrical and mechanical life, making it ideal for rugged industrial and machinery control applications.
Apem IMP7Z472UL Industrial Pushbutton Switch Specifications:
- Bushing Diameter: 12 mm
- Case Material: Polyamide 4/6
- Actuator Material: Polyamide 6/6
- Contacts: Silver, gold plated
- Electrical Rating: 3A at 28 VDC
- Electrical Life: 25,000 cycles
- Contact Resistance: 100 mΩ max.
- Insulation Resistance: 1 GΩ min. at 500 VDC
- Dielectric Strength: 500 Vrms
- Operating Temperature: -40 °C to +85 °C
- Push Travel: 1.7 mm ± 0.3 mm
- Panel Thickness: 1.5 mm to 10 mm
- Mounting: Standard bezel, options for reduced bezel
- Ingress Protection: IP67
- Shock Resistance: 50 g for 11 ms
- Sealing: Front panel IP67 according to IEC 60529
- Mounting Hardware: Includes hex nut U166 or plastic nut U4248
- Agency Approvals: UL 125VAC/250VAC
Buy the IM series – Reliable Pushbutton Switches for Industrial Applications
Order the IM series industrial pushbutton switch IMP7Z472UL online today and experience top-quality performance, robust sealing, and long-lasting durability. Designed for harsh industrial environments, this switch features a sealed IP67 rating, a high current rating of 3A at 28 VDC, and a tactile feedback click for reliable operation. Ideal for control panels and automation systems, it ensures safe, dependable switching with UL approval. Choose this versatile, durable pushbutton switch to enhance your industrial control solutions and ensure long-term reliability in demanding conditions.
Get IM series switch IMP7Z472UL today—built for precision, durability, and reliable operation in industrial environments.
