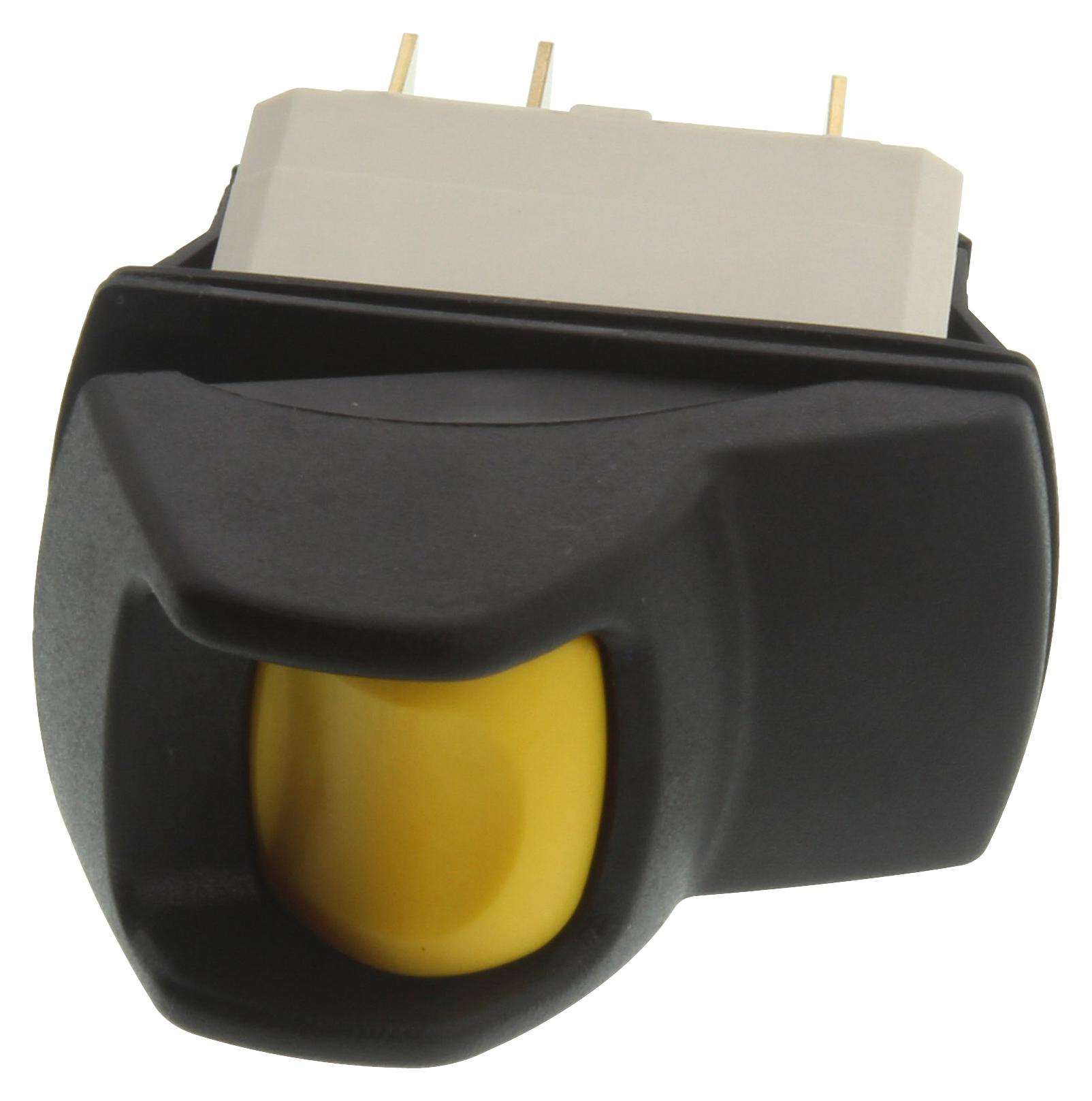

Apem KL363DKXA125NXX Locking Power Rocker Switch
The KL series locking power rocker switches are designed for industrial applications, featuring a protected position, patented ergonomic design, laser-etched symbols, with illuminated or non-illuminated options, and optional sealing up to IP69K for water and dust resistance. These switches support a wide operating temperature range of -40°C to +85°C, incorporate silver or gold-plated contacts with high cycle durability, and are suitable for panel thicknesses from 0.8 mm to 4.6 mm. They feature multiple electrical configurations, including single and double pole versions, with various sealing and wiring options, making them ideal for rugged industrial environments demanding reliability and long service life.
Apem KL363DKXA125NXX Locking Power Rocker Switch Specifications:
- Sealing options: IP68 front panel (IEC 60529), IP69K (DIN 40050-9)
- Operating temperature: -40°C to +85°C
- Contacts: Silver plated, 5 A 24 VDC or 10 A 24 VDC (resistive load); Gold plated, 20 mA 12 V
- Electrical life: 150,000 cycles minimum
- Panel thickness: 0.8 mm to 4.6 mm, recommended 2-3.5 mm
- Mechanical durability: 150,000 cycles
- Materials: Case – PA 6-6; Actuator – ABS; Bezel – PA 6-6; Contacts – Brass, silver or gold plated
- Terminal types: Screw, solder lug, quick connection, with various configurations (6, 10 terminals, barrier or non-barrier)
- Standards: UL, CE, suitable for industrial control, automation systems
- Current/voltage ratings: 5 A 24 VDC, 10 A 24 VDC, 20 A 12 V (resistive load); gold contacts support 20 mA 12 V
- Contact resistance: Max 10 mΩ
- Dielectric strength: Min 2000 Vrms
Buy the IndustrialSwitch KL363DKXA125NXX – Reliable Power Rocker for Industrial Applications
Order the KL series locking power rocker switch KL363DKXA125NXX online today. Engineered for industrial durability, these switches feature high electrical capacity, optional IP69K sealing, and a robust construction supporting over 150,000 cycles. Ideal for automation, machinery, and control panels, they provide reliable operation in harsh environments. Easy to install with multiple wiring options, fastening methods, and illuminated or non-illuminated models, ensuring your industrial systems run smoothly and safely. Purchase now for long-lasting performance.
Get KL series locking power rocker switch KL363DKXA125NXX today—built for precision and long-lasting durability in rugged industrial environments.
