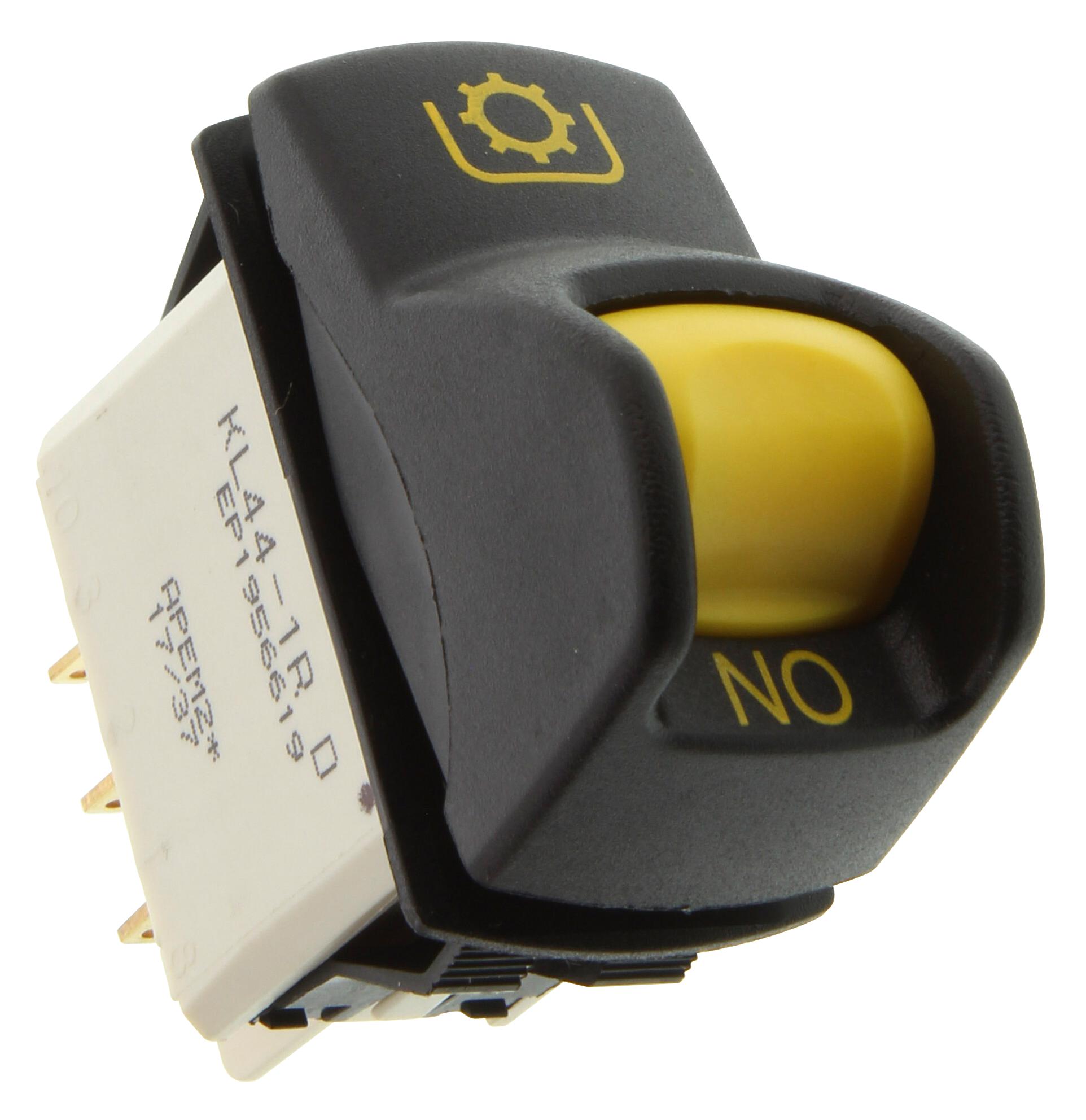

Apem KL441RJDXXG125N01605 Locking Power Switch
The KL series locking power rocker switches are designed with protected positions, featuring patented ergonomic designs and laser-etched symbols. They offer illuminated or non-illuminated options, with optional sealing up to IP69K for enhanced dust and water resistance, suitable for demanding industrial environments. These switches support multiple electrical configurations, including resistive loads up to 20 A and 12 V, with a mechanical life of at least 150,000 cycles. Made from durable materials such as PA 6-6 and ABS, they are adjustable for panel thicknesses between 0.8 mm and 4.6 mm, ensuring versatility and reliability.
Apem KL441RJDXXG125N01605 Locking Power Switch Specifications:
- Sealing Options: IP68 (front of switch), IP69K (panel sealing), IEC 60529, DIN 40050-9
- Electrical Ratings: Up to 20 A 12 VDC, 10 A 24 VDC resistive load, 150,000 mechanical cycles
- Materials: Case and bezel made of PA 6-6, actuator of ABS, contact brass, silver or gold plated
- Panel Thickness: 0.8 mm to 4.6 mm, recommended 2-3.5 mm
- Environmental Resistance: Salt spray 96 hours IEC 512-6, UV resistant ISO 4892-2
- Operating Temperature: -40°C to +85°C, UL 94V-0 flammability
- Contact Resistance: Max 10 mΩ, Insulation Resistance: Min 1,000 MΩ at 500 VDC
- Dielectric Strength: Min 2,000 Vrms between terminals
- Electrical Life: 150,000 cycles
- Physical Dimensions: Body accommodates panel cut-outs of 25.0 mm x 20.0 mm to 51.0 mm x 40.2 mm, mounting from 1.10 mm to 6 mm thick
Buy the Buy KL Locking Power Rocker Switch Part Number KL441RJDXXG125N01605 Online
Purchase the KL series locking power rocker switch KL441RJDXXG125N01605 online today to ensure high-quality control for your industrial machinery. Featuring robust sealing up to IP69K, this switch offers reliable performance under harsh environments. Its durable materials support up to 150,000 cycles, and with multiple electrical configurations, it fits various applications. Easy to install with versatile panel thickness compatibility, it provides a durable and ergonomic control solution with laser-etched symbols for clear operation and safety.
Buy KL Locking Power Rocker Switch KL441RJDXXG125N01605 now and experience unmatched reliability, durable design, IP69K sealing, and versatile electrical performance.
Frequently Asked Questions
Where can I buy Apem KL441RJDXXG125N01605?
You can click on the BUY or RFQ button to purchase KL441RJDXXG125N01605 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part KL441RJDXXG125N01605?
You can download the KL441RJDXXG125N01605 datasheet or visit the Apem website for support.
Who is the manufacturer of KL441RJDXXG125N01605?
Apem
