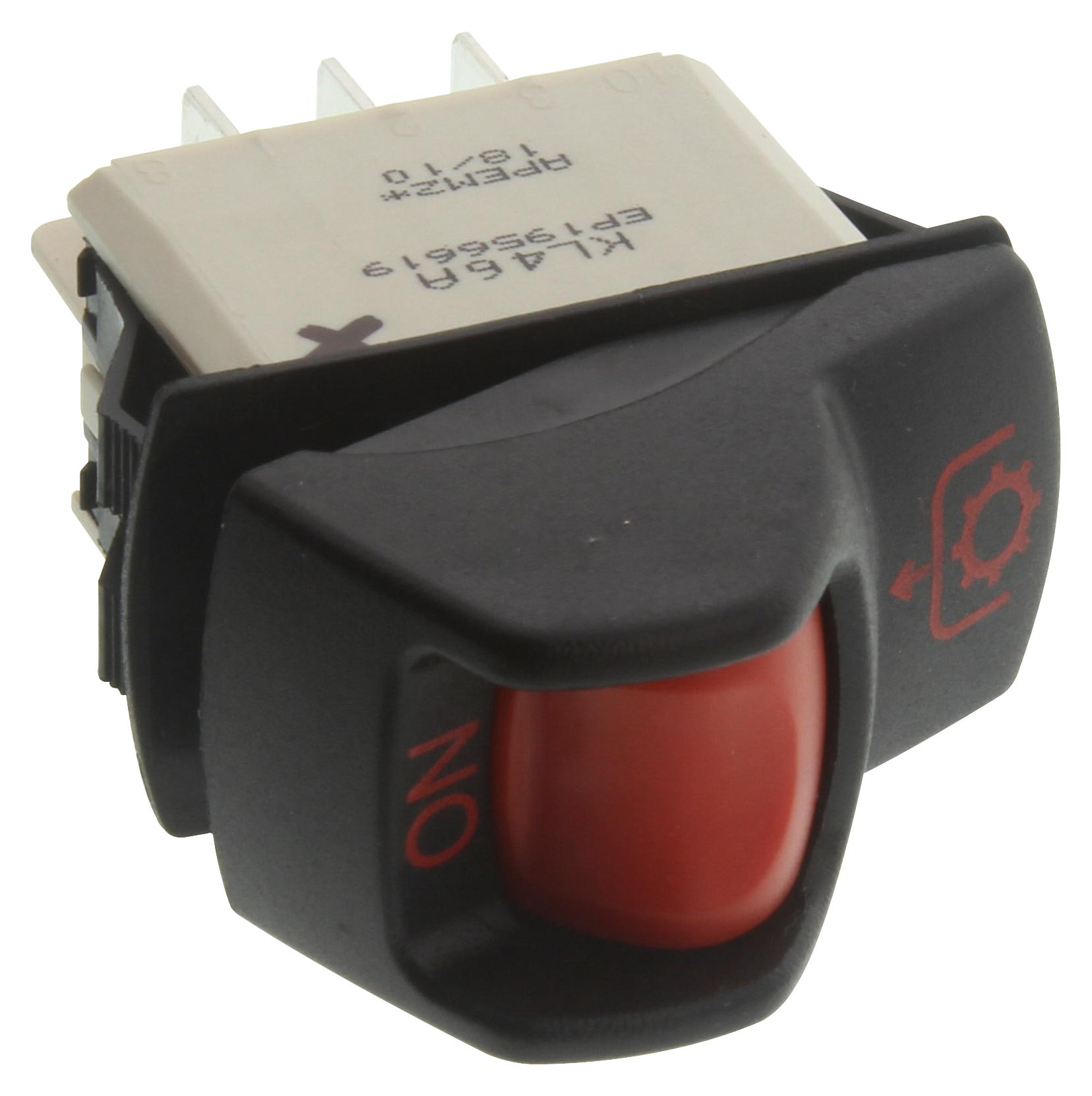

Apem KL46FAXXG126N01616 Locking Power Rocker Switch
The KL series locking power rocker switches are highly durable, sealed options designed for industrial and vehicular applications. These switches feature a protected, snap-action mechanism with laser-etched symbols, available illuminated or non-illuminated, and sealed to IP68 or IP69K standards for water and dust resistance. Suitable for panel thicknesses from 0.8 mm to 4.6 mm, they support electrical loads up to 20 A at 12 VDC or 24 VDC, with mechanical life of at least 150,000 cycles. Constructed with materials like PA 6-6, ABS, brass, and gold or silver plated contacts for reliable performance in harsh environments.
Apem KL46FAXXG126N01616 Locking Power Rocker Switch Specifications:
- Electrical Load: 20A 12 VDC, 20A 24 VDC, 10A 24 VDC, 6V, 12V, 24V options
- Mechanical Life: 150,000 cycles minimum
- Panel Thickness: 0.8 mm to 4.6 mm, recommended 2-3.5 mm
- Sealing: IP68 (front only), optional IP69K sealing available
- Materials: Case and bezel in PA 6-6, actuator in ABS or elastomeric membrane, contacts brass, silver or gold plated
- Operating Temperature: -40 °C to +85 °C
- Degree of Sealing: K for IP68, Z for IP69K
- Dimensions: Compatible with panel cut-outs of 25.000/40.20 mm or 48.200/40.20 mm, panel mounting from 1.10 mm to 5.80 mm thickness
- Symbols: Laser-etched, UV resistant, tear resistant, water and petrol resistant (EN61058-1, NF ISO 2409, ISO 4892-2)
Buy the APEM Series KL Locking Power Rocker Switch: KL46FAXXG126N01616
Order the APEM KL series locking power rocker switch KL46FAXXG126N01616 online today and enhance your control panel with a durable, sealed switch designed for harsh environments. Featuring high current ratings up to 20 A at 12 or 24 VDC, laser-etched symbols, and versatile illumination options, this switch ensures reliable operation in demanding industrial or vehicular applications. Its sealed design, up to IP69K, protects against water and dust ingress. Easy to install on panels with thicknesses from 0.8 mm to 4.6 mm, it is perfect for demanding automation systems requiring long-lasting performance.
Buy APEM KL locking power rocker switch KL46FAXXG126N01616 now and experience unmatched reliability and performance in industrial control and automation.
