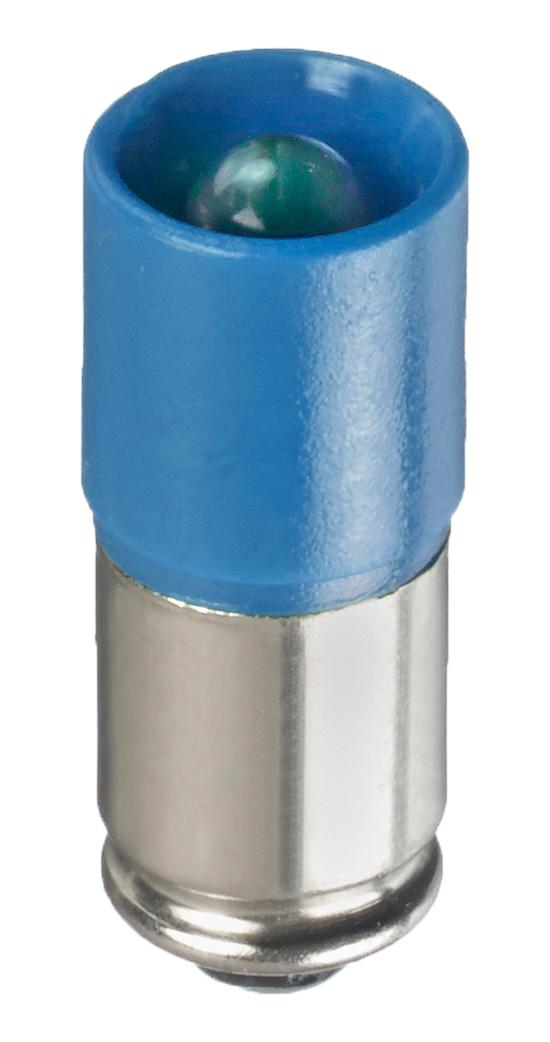

Apem MGSSB24 Groove Based LED
The MG series T1 3/4 Midget groove-based LEDs are versatile lighting components suitable for bulb replacement and illumination applications. Available in single or multi-chip configurations, these LEDs feature a durable polycarbonate body and nickel-plated brass base, offering reliable performance across operating temperatures from -20 °C to +70 °C. Operating on 12 VDC to 28 VAC/DC at low 14 mA current, they provide luminous intensities between 490 and 2,070 mcd depending on the version and color. These LEDs are ideal for indicator lighting, signage, and various electronic applications requiring efficient, compact illumination solutions.
Apem MGSSB24 Groove Based LED Specifications:
- Body Material: Polycarbonate
- Base Material: Nickel-plated brass
- Operating Temperature Range: -20 °C to +70 °C
- Voltage Options: 12V, 24V, 28V (contact for other options)
- Current: 14 mA for single chip, 30 mA for multi-chip versions
- Luminous Intensity: 490 to 2,070 mcd depending on version and color
- Colors Available: Red, Green, Yellow, Blue, White
- Type: Single or Multi-chip configuration
- Voltage Range: 12 VDC to 28 VAC/DC
- Temperature Range: -4°F to +158°F
Buy the Buy MG LED Part Number MGSSB24 Online
Purchase MG groove-based LEDs online to experience reliable, compact, and energy-efficient illumination. Whether for indicator lights or signage, these versatile LEDs are designed for long-term performance across a wide temperature range. Choose from single or multi-chip options in multiple colors with varying luminous intensities, all operating on 12V to 28V power supplies. With high-quality materials like polycarbonate bodies and nickel-plated brass bases, these LEDs ensure durability and consistent brightness for your electronic or industrial applications.
Buy MG LED Part Number MGSSB24 now and enhance your indicator lighting with durable, energy-efficient LEDs suitable for various electronic projects.
