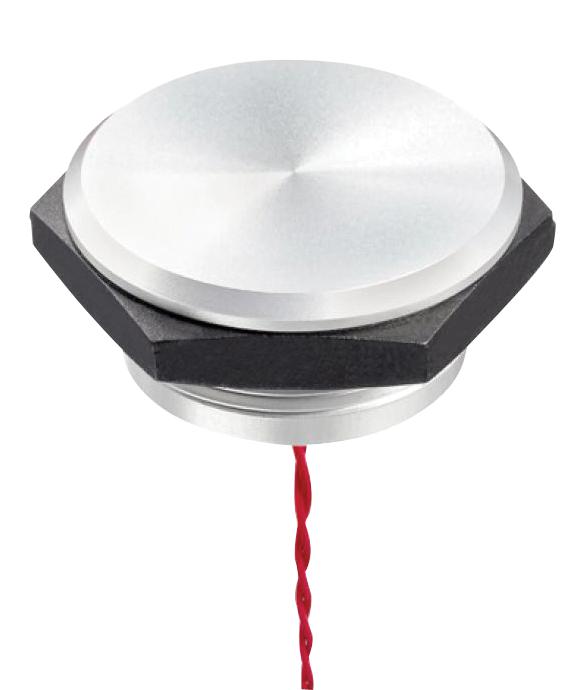

Apem PBAM1AF0002 Piezo Switch
The PBA series piezo switches at 30 mm diameter offer a durable, sealed, and illuminated control solution suitable for demanding environments. Made with anodized aluminum or stainless steel 316L, these switches feature IP68 and IP69K sealing, ensuring high resistance against water, dust, and washdowns. They support momentary NO operation with a maximum current of 1 A at 24 VAC/DC. Easy to clean, with long life expectancy of 50 million cycles, and available with various LED color options and illuminated or non-illuminated rings for enhanced visibility and operator feedback.
Apem PBAM1AF0002 Piezo Switch Specifications:
- Diameter: 30 mm (1.181 inches)
- Sealing: IP68 per IEC 60529, IP69K per DIN 40050-9
- Case Material: Aluminum anodized or stainless steel 316L
- Operating Temperature: -40°C to +75°C (-40°F to +167°F)
- Electrical Rating: Max 1 A 24 VAC/DC with resistive load
- Switch Resistance ON: 10 Ω max, OFF: 5 MΩ min
- Life Expectancy: 50 million cycles
- Lead Length: 300 mm twisted multi-wire leads, cross-section 0.22 mm²
- Operating Force: 6 to 12 N
- Torque: 1.5 Nm min. to 10 Nm max
- LED Voltage Options: 5 VDC, 12 VDC, 24 VDC
- Electrical Function: Momentary NO (pulse), no external power needed
- Illumination: Translucent or prominent ring with various color options
- Wiring: Flying leads or cable with ground washer recommended for non-conductive panels
Buy the Buy APEM PBA Series Piezo Switch Part Number PBAM1AF0002 Online
Purchase the durable APEM PBA Series piezo switch online today. Designed for demanding environments, it features IP68/IP69K sealing, long life expectancy, and easy maintenance. Perfect for industrial control applications requiring reliable momentary NO operation, multiple LED options, and robust construction with anodized aluminum or stainless steel. Whether you need illuminated or non-illuminated versions, ordering online provides fast delivery and access to all configurations suited for washdowns, harsh conditions, and precise control needs.
Order your APEM PBA Series PBAM1AF0002 piezo switch today and ensure reliable, sealed operation with multiple LED color options for industrial control.
Frequently Asked Questions
Where can I buy Apem PBAM1AF0002?
You can click on the BUY or RFQ button to purchase PBAM1AF0002 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part PBAM1AF0002?
You can download the PBAM1AF0002 datasheet or visit the Apem website for support.
Who is the manufacturer of PBAM1AF0002?
Apem
