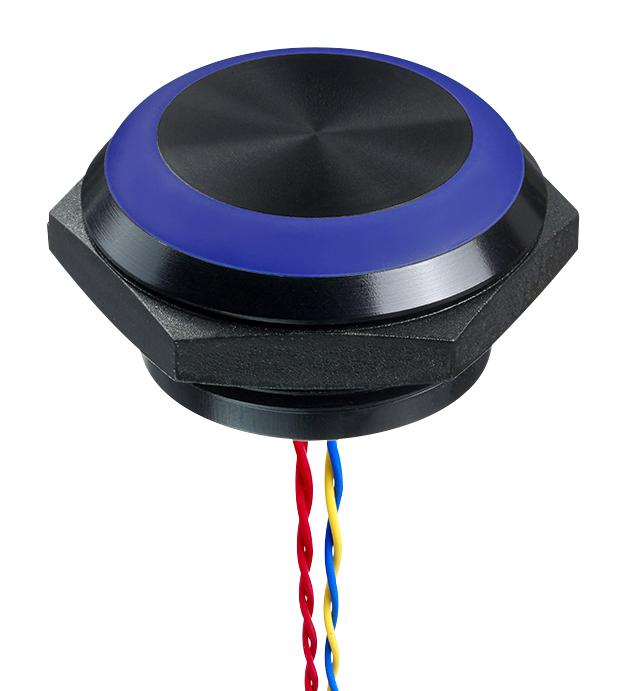

Apem PBAM4AF0002D0B Piezo Switch
The PBA series piezo switches feature a 30 mm bushing with IP68 and IP69K sealing for robust industrial use. These switches are designed with a durable aluminum or stainless steel case, suitable for high-pressure washdowns and continuous immersion in water. They provide momentary NO pulse electrical functions, with a max current of 1 A at 24 VAC/DC, and a switch resistance of 10 Q ON and 5 MQ OFF. Operating temperature ranges from -40°C to +75°C, with an impressive life expectancy of 50 million cycles. They are available with various LED illumination options and mounting accessories, ensuring versatility for automation and control applications.
Apem PBAM4AF0002D0B Piezo Switch Specifications:
- Sealing: IP68 per IEC 60529, IP69K per DIN 40050-9
- Case Material: Aluminum, anodized or stainless steel 316L
- Operating Temperature: -40°C to +75°C
- Electrical Ratings: 1 A at 24 VAC/DC resistive load
- Switch Resistance: ON: 10 Q max., OFF: 5 MQ min.
- Life Expectancy: 50 million cycles
- LED Current: 20 mA
- Bushing Diameter: 30 mm (1.181 inches)
- Operator Heights: 2.5 mm (.098 inches), 5.5 mm (.216 inches)
- Electrical Function: Momentary NO (pulse), no external power required
- Operating Force: 6 to 12 N
- Torque: 1.5 Nm min. - 10 Nm max
- Material: Aluminum or stainless steel 316L case, epoxy sealed terminals, O-ring seals
- Environmental: Suitable for high-pressure washdown, continuous water immersion
- Wiring: Twisted multi-wire leads, length 300 mm
- LED Options: Non-illuminated, single, dual, or triple LED configurations with various color combinations
Buy the APEM PBAM4 – Reliable Piezo Switches for Industrial Applications
Order the APEM Piezo Switch PBAM4 online today and enhance your industrial automation system. Featuring IP68/IP69K protection, durable aluminum or stainless steel construction, and customizable LED illumination options, this switch is ideal for high-pressure washdowns and water immersion environments. With a long life expectancy of 50 million cycles, a resistive load of 1 A at 24 VAC/DC, and various operator heights, it ensures reliable operation. Easy installation with hardware accessories makes it the perfect choice for demanding industrial applications.
Buy APEM PBAM4 now and experience unmatched reliability, high durability, and customizable illumination for industrial automation and control needs.
Frequently Asked Questions
Where can I buy Apem PBAM4AF0002D0B?
You can click on the BUY or RFQ button to purchase PBAM4AF0002D0B from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part PBAM4AF0002D0B?
You can download the PBAM4AF0002D0B datasheet or visit the Apem website for support.
Who is the manufacturer of PBAM4AF0002D0B?
Apem
