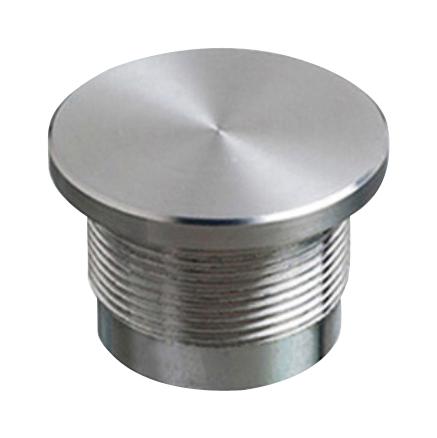

Apem PBAR2AFB000MX Hazardous Environment Piezo Switch
The ATEX-approved piezo switches of the PBA series are designed for hazardous environments with explosive atmospheres. Crafted from durable 316L stainless steel, these switches feature sealed IP66 protection and are suitable for use in mines and potentially explosive areas. They support rated voltages from 5 V to 24 VAC/DC, with a maximum current of 200 mA. With a long life expectancy of 50 million cycles, various mounting options, with or without illuminated rings or dots, and certified for industry standards, they offer reliable performance in challenging conditions.
Apem PBAR2AFB000MX Hazardous Environment Piezo Switch Specifications:
- Case Material: 316L stainless steel
- Sealing: IP66 per IEC 60529
- Operating Temperature: -40 °C to +55 °C
- Rated Voltage: 5 V to 24 VAC/DC
- Rated Current: 200 mA max.
- Contact Resistance: 10² max.
- Insulation Resistance: 5 MΩ min.
- Life Expectancy: 50 million cycles
- Operating Force: 2 to 6 N
- Mounting Bushing: 16 (.630), 19 (.748), 22 (.866)
- LED Power Supply: 5 VDC, 10-20 mA
- Total Dimensions vary per model, with specific sizes for each bushing.
Buy the PBA Series – Reliable Piezo Switches for Industrial Applications
Purchase the PBA series ATEX certified piezo switches online for seamless integration into industrial environments requiring explosion-proof solutions. These stainless steel switches feature IP66 sealing and support various mounting options with illumination features for ease of operation. Designed to withstand harsh conditions with a long operational life of 50 million cycles, they comply with industry standards, providing safety and reliability in explosive atmospheres. Order now to ensure your projects meet safety standards while benefiting from high-quality switch performance.
Order your PBA series ATEX approved piezo switches today and enjoy dependable performance in hazardous environments with long-lasting durability.
