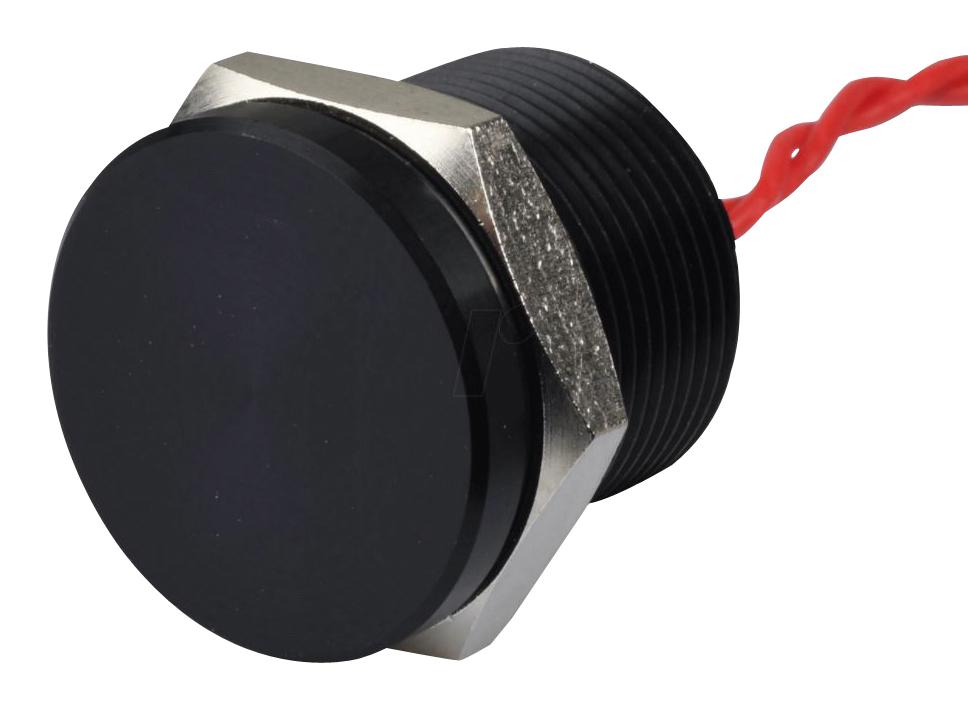

Apem PBAR9AF2000 Sealed Piezo Switch
The piezo switches in the PBA series are sealed to IP66/IP68/IP69K standards, featuring easy-to-clean metal surfaces, long operational life of 50 million cycles, and options for illuminated or non-illuminated models. They operate under environments with vibration resistance and temperature ranges from -40°C to +75°C. With electrical ratings up to 24VAC/DC, these switches support various functions like momentary, latching, and pulse modes. Suitable for industrial applications requiring reliable, sealed, and illuminated control devices, they are available in multiple bushing diameters and colors, with mounting hardware included.
Apem PBAR9AF2000 Sealed Piezo Switch Specifications:
- Bushing diameters: 16 mm, 19 mm, 22 mm
- Sealing: IP66, IP68, IP69K
- Operating temperature: -40°C to +75°C
- Vibration resistance: 10-500 Hz / 10 g
- Life expectancy: 50 million cycles
- Max current/voltage: 200mA 24VAC/DC, 100mA 24VAC/DC
- Switch resistance ON: 10 max.
- Switch resistance OFF: 5MQ min.
- LED consumption: Dot 10mA, ring 20mA
- Operating force: 2 to 6N
- Torque: 2.5Nm min. - 3Nm max.
- Materials: Case - aluminum anodized or stainless steel 316L; Terminals - bronze, tin-plated; Leads - multi-wire, 300mm long
- Electrical functions: momentary NO/NC, ON-OFF (requires external power)
- Environmental: Suitable for immersion, wash-down, explosive atmospheres (ATEX compliant in specific models)
Buy the APEM PBAR9AF2000 – Reliable Piezo Switch for Industrial Applications
Order the APEM PBAR9AF2000 piezo switch online today and ensure your industrial control panels are equipped with a long-lasting, IP66/IP68/IP69K sealed switch. Featuring easy cleaning, multiple illumination options, and a rugged design, this switch seamlessly integrates into harsh environments. Its reliable operation up to 50 million cycles and multiple electrical functions make it ideal for automation, machinery control, and safety systems. Enjoy fast delivery and dedicated customer support when you purchase online now.
Buy APEM PBAR9AF2000 now and experience unmatched reliability and performance in sealed industrial control systems.
Frequently Asked Questions
Where can I buy Apem PBAR9AF2000?
You can click on the BUY or RFQ button to purchase PBAR9AF2000 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part PBAR9AF2000?
You can download the PBAR9AF2000 datasheet or visit the Apem website for support.
Who is the manufacturer of PBAR9AF2000?
Apem
