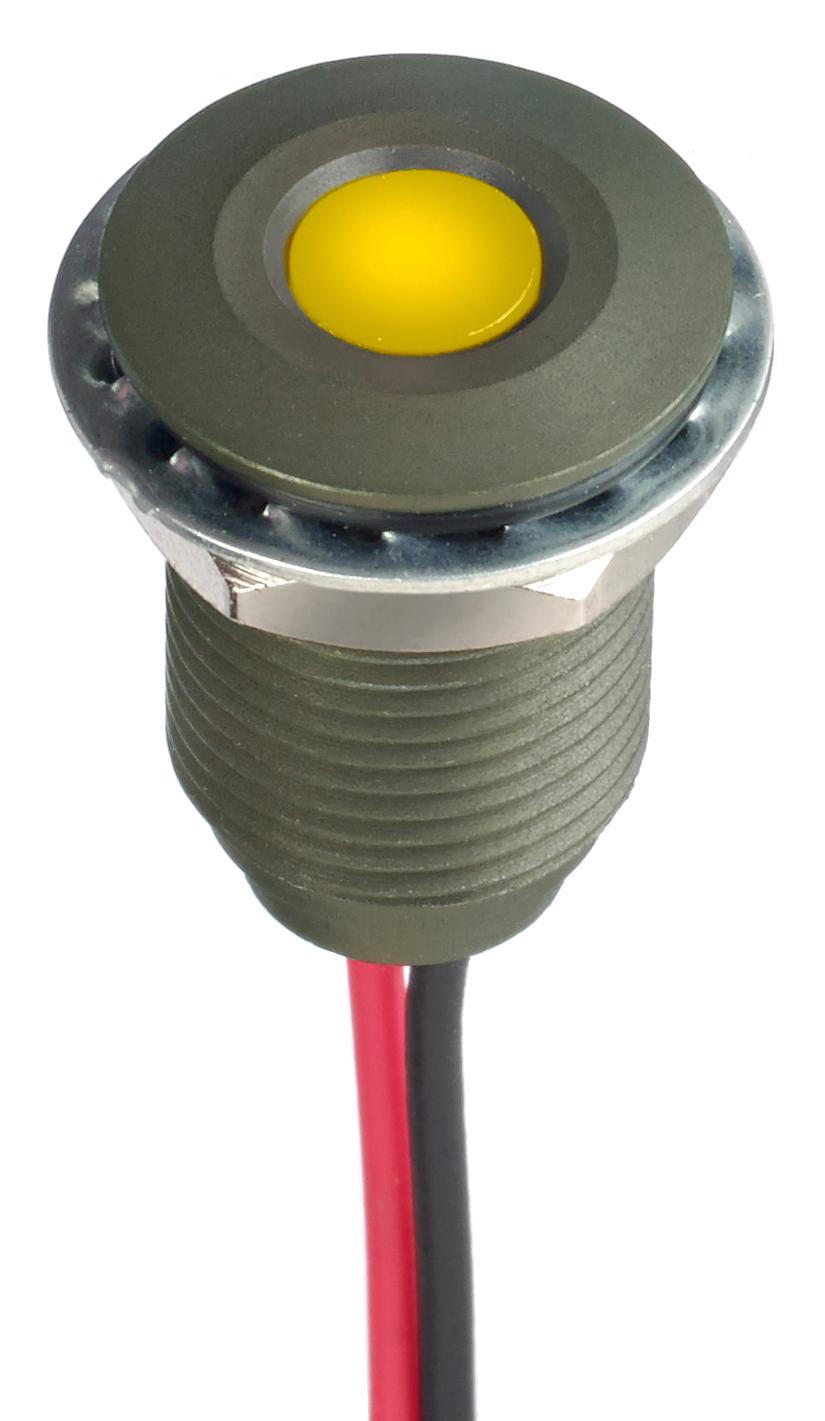

Apem Q10F5AKXXY02E Panel Mount LED Indicator
The Q10 series features 10 mm panel mount LED indicators designed for reliable signal indication in industrial environments. Available with various illumination options including standard, super bright, hyper bright, and RGB colors, these LEDs are sealed to IP67 standards for water and dust resistance. They have a flush chamfered bezel style, with wire terminations approximately 200 mm long. Made from stainless steel 316L or anodized aluminium, these indicators offer a lifespan of 100,000 hours, operating efficiently in temperatures from -40°C to +85°C. Suitable for panel thicknesses up to 7 mm, they provide wide viewing angles and diverse electrical configurations for versatile applications.
Apem Q10F5AKXXY02E Panel Mount LED Indicator Specifications:
- Diameter: 10 mm
- Sealing: IP67 (water and dust resistant)
- Operating Temperature Range: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5 V
- Viewing Angle: 60°
- Panel Thickness Compatibility: Up to 7 mm
- Materials: Stainless Steel 316L or Anodized Aluminium
- Wire Terminations: 200 mm long
- Color Options: Red, Green, Yellow, Blue, White, Orange, RGB, Tri-color, Hyper Bright variants
- LED Intensities: Standard, Super Bright, Hyper Bright, RGB
- Voltage Range: 1.8 V to 33 VDC, with various operating currents
- Bezel Style: Flush chamfered
- Mounting: Panel mount with mounting hole provided
- Connector Type: Rear epoxy wires
Buy the Innovative LED Indicators – Reliable Signal Components for Industrial Applications
Purchase the Q10 series LED indicators online to enhance your industrial control systems with reliable, long-lasting lighting signals. These 10 mm indicators are designed for easy panel mounting, offering various illumination options including standard, super bright, and hyper bright LEDs in multiple colors. With IP67 sealing, robust stainless steel or anodized aluminium construction, and a lifespan of 100,000 hours, they are suitable for demanding environments from -40°C to +85°C. Ideal for machinery, process control, and automation systems, buy online now for swift delivery and easy installation.
Get Q10 series LED indicators today—built for precision, durability, and versatile industrial signaling.
