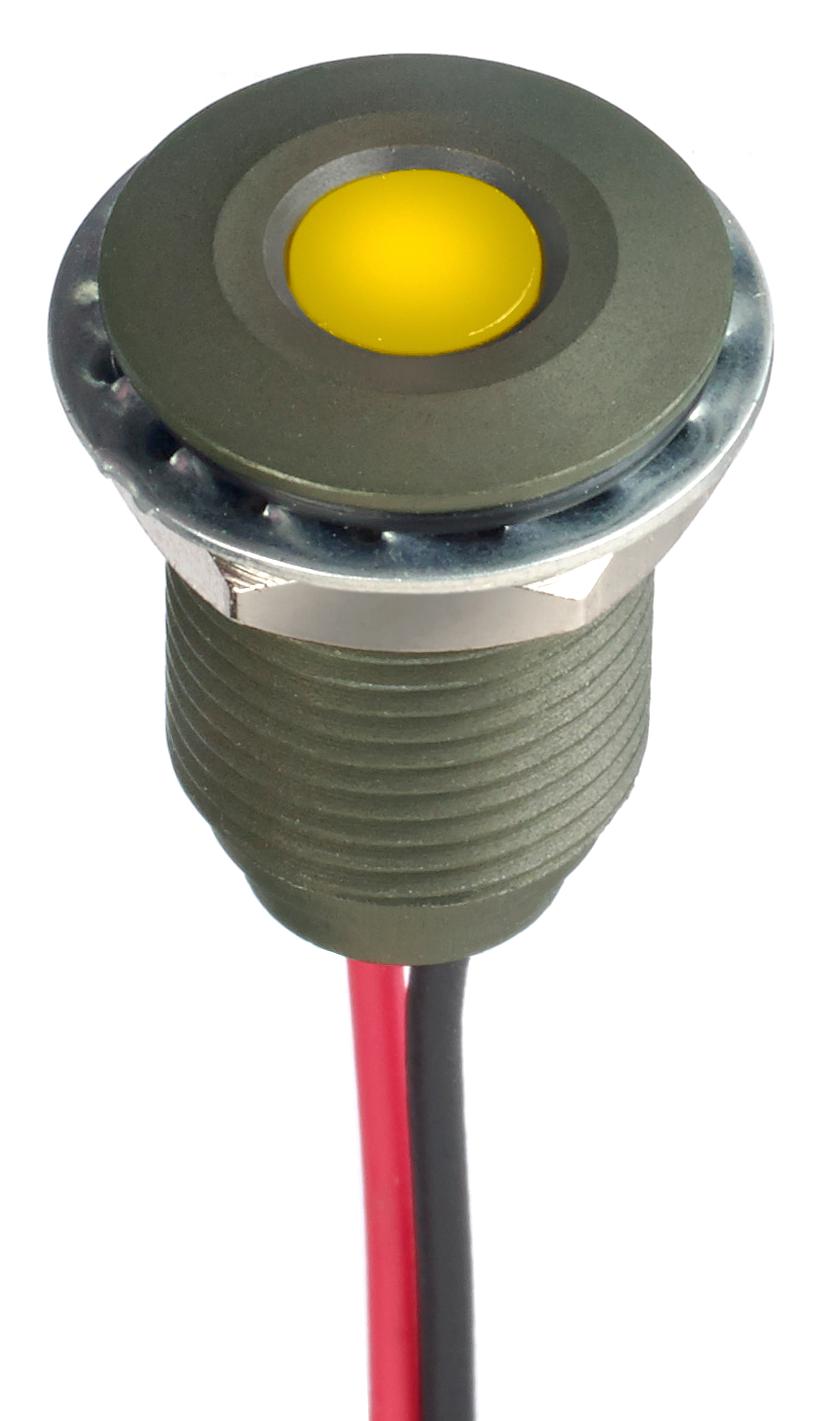

Apem Q10F5AKXXY12E Panel Mount LED Indicator
The Q10 series features 10 mm panel mount LED indicators with a flush diffused or water-clear LED design, available in standard, hyper bright, and RGB variants. These indicators are sealed to IP67 standards, suitable for harsh environments, and constructed from stainless steel or anodized aluminum with potted rear ends. They operate within -40°C to +85°C, with a lifespan of 100,000 hours, and have a viewing angle of 60°. They include wire terminations about 200 mm long and are designed for panel thicknesses up to 7 mm, making them ideal for industrial and automation applications.
Apem Q10F5AKXXY12E Panel Mount LED Indicator Specifications:
- Operating Temperature Range: -40°C to +85°C
- Sealing: IP67 (optional)
- Material: Stainless Steel 316L or Anodized Aluminum
- Lens Diameter: 10 mm
- Viewing Angle: 60°
- Wire Length: 200 mm
- Max Panel Thickness: 7 mm
- Life Expectancy: 100,000 hours
- Front Voltage (depending on LED type): Red 2V, Green 3V, Yellow 2V, Blue 3.3V, White 3V, Orange 2V
- Power Consumption (Bright): Red 80mA, Green 60mA, Yellow 50mA, Blue 160mA, White 160mA, Orange 110mA
- Electrical Voltage Range: 1.8 to 33 VDC, with optional resistor for desired current
- LED Types: Standard, Super Bright, Hyper Bright, RGB, Bi-color (Red/Green), Tri-color (Red/Green/Yellow)
- Mounting: Flush bezel style with optional seal
Buy the APEM Series Q10 LED: 10 mm Panel Mount Indicator PartNumber Q10F5AKXXY12E
Enhance your industrial equipment with the Q10 series panel mount LED indicators. These durable, IP67 sealed LEDs are ideal for harsh environments, providing excellent visibility with standard or hyper bright options. Available in various colors and RGB configurations, they feature a 10 mm flush bezel and long wire leads for easy installation. With a lifespan of 100,000 hours and operating temperature range from -40°C to +85°C, these indicators ensure reliable performance and long-term operation in demanding industrial applications.
Buy APEM Q10F5AKXXY12E now and experience unmatched reliability and performance in harsh industrial environments.
