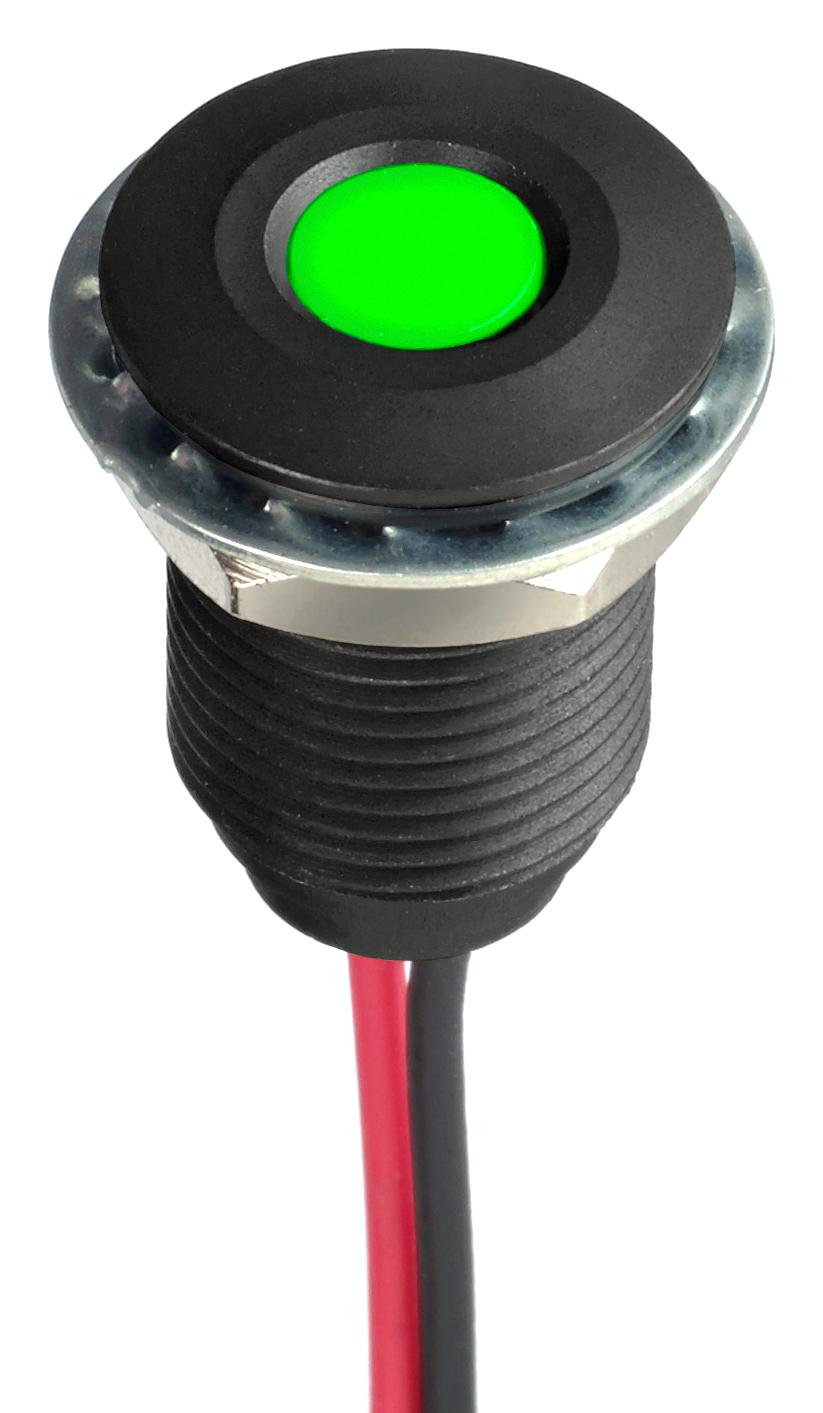

Apem Q10F5ANXXG24E Panel Mount LED Indicator
The Q10 series are 10 mm panel mount LED indicators designed for industrial applications with robust stainless steel or anodized aluminum housing, IP67 sealing option, and wide operating temperature range from -40°C to +85°C. Available with various illumination options including standard, super bright, hyper bright, RGB, bi-color, and tri-color LEDs, they feature long life expectancy of 100,000 hours and a viewing angle of 60°. These LEDs are suitable for panel mounting up to 7 mm thickness, with wire terminations of 200 mm length for easy installation.
Apem Q10F5ANXXG24E Panel Mount LED Indicator Specifications:
- Diameter: 10 mm
- Material: Stainless Steel 316L or Anodized Aluminum
- Sealing: IP67 option available
- Operating Temperature Range: -40°C to +85°C
- View Angle: 60°
- Max Reverse Voltage: 5 V
- Life Expectancy: 100,000 hours
- Max Panel Thickness: 7 mm
- Wire Termination Length: 200 mm
- Housing Finish: stainless steel or anodized aluminum
- Mounting Hole Diameter: 10 mm
- LED Types: Standard, Super Bright, Hyper Bright, RGB, Bi-color, Tri-color
- Operating Voltage: varies by LED type, typical 1.8V-33V DC
- Power Ratings: depending on LED brightness and color
- Connection: rear epoxy wires, 200 mm long
- Ingress Protection: IP67 (sealing option)
- Dimensions: 13.65 mm height, 7.674 mm diameter (with tolerance)
Buy the APEM Q10F5ANXXG24E – Reliable LED Indicator for Industrial Applications
Enhance your industrial control panels with the durable and reliable Panel Mount LED Indicator from APEM's Q10 series. Featuring various brightness options including standard, super bright, hyper bright, RGB, bi-color, and tri-color LEDs, it is designed for easy installation with rear epoxy wire terminations. With an IP67 sealing option, it performs reliably in harsh environments from -40°C to +85°C. Its long lifespan of 100,000 hours ensures sustained operation, making it an ideal choice for demanding industrial and automation applications.
Order your APEM SeriesQ10F5ANXXG24E high-quality LED indicator today and enhance your control panels with durable, bright illumination solutions.
