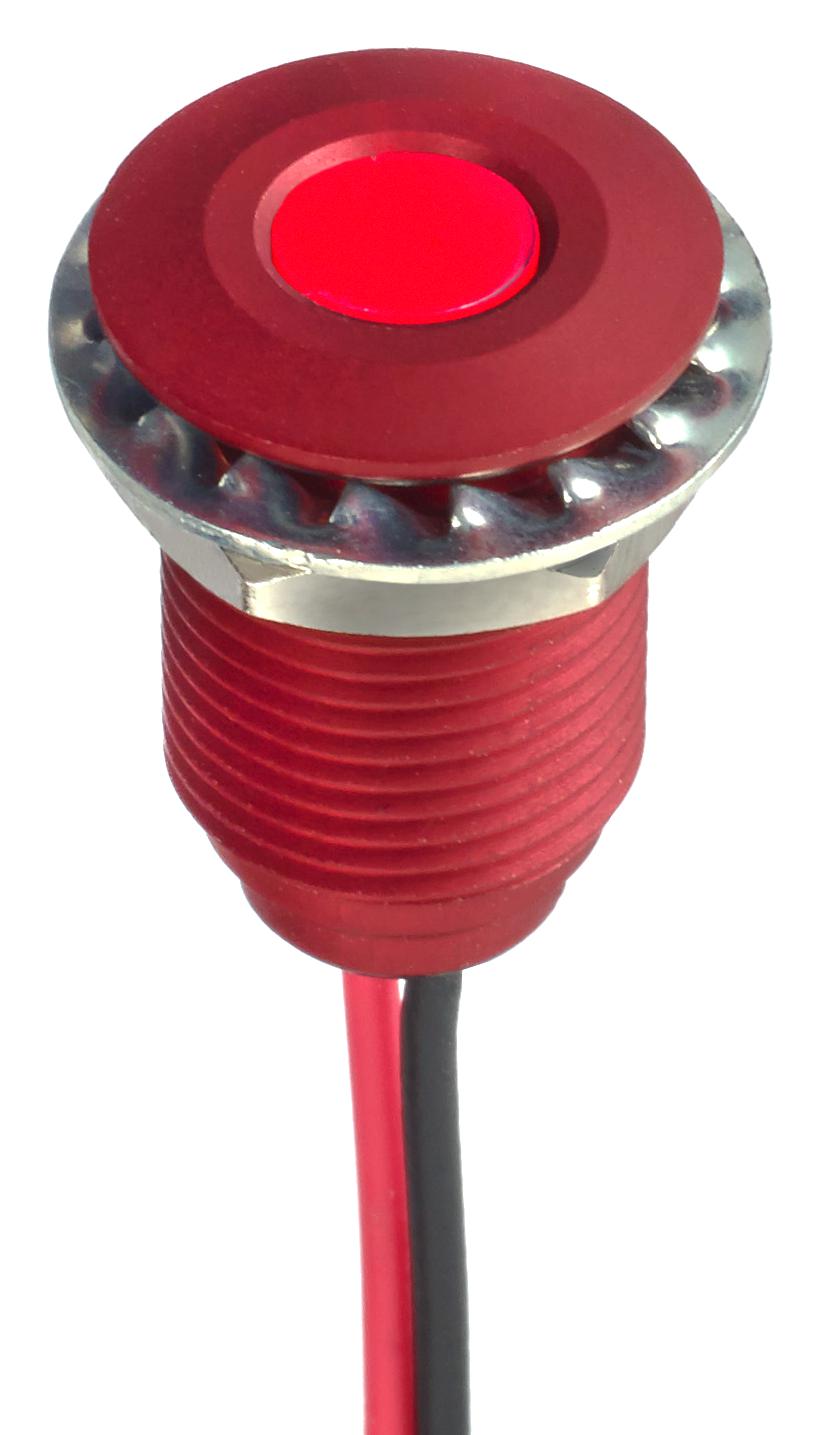

Apem Q10F5ARXXR12E Panel Mount LED Indicator
The Q10 series are 10 mm panel mount LED indicators designed for industrial applications, offering high durability and visibility. Featuring a flush diffused LED with options for hyper brightness or water clear, these indicators are IP67 sealed for harsh environments. They support various colors including red, green, yellow, blue, white, and orange, with configurable bi-color and tri-color options. Constructed from stainless steel 316L or anodized aluminum, they include 200 mm wire terminations and are rated for a temperature range of -40°C to +85°C. Suitable for panel thickness up to 7 mm, they exhibit a life expectancy of 100,000 hours, ideal for signaling and status indication in challenging conditions.
Apem Q10F5ARXXR12E Panel Mount LED Indicator Specifications:
- Diameter: 10 mm
- LED Types: Diffused, hyper bright, water clear
- Voltage Range: 1.8 to 33 VDC, with resistor or resistorless options
- Color Options: Red, green, yellow, blue, white, orange, RGB, bi-color, tri-color
- Sealing: IP67 option available
- Operating Temperature: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Materials: Stainless Steel 316L or Anodized Aluminum
- Panel Thickness: Max 7 mm
- Wire Length: 200 mm, UL1061 standard
- Connection: Rear epoxy wires with 0.75 thread
- Viewing Angle: 60°
- Max Reverse Voltage: 5 V
Buy the APEM Q10F5ARXXR12E – Reliable 10 mm Panel Mount LED Indicators for Industrial Applications
Enhance your industrial signaling with the Q10 series LED indicators, featuring robust IP67 sealing, multiple color options including RGB and tri-color, and a long lifespan of 100,000 hours. Designed for easy installation with a 10 mm diameter and mounting on panels up to 7 mm thick, these indicators are suitable for harsh environments operating from -40°C to +85°C. Their high brightness options ensure excellent visibility in various lighting conditions. Order online today and enjoy reliable performance for your manufacturing and control systems.
Buy APEM Q10F5ARXXR12E now and experience unmatched durability and clear signaling in harsh industrial environments.
