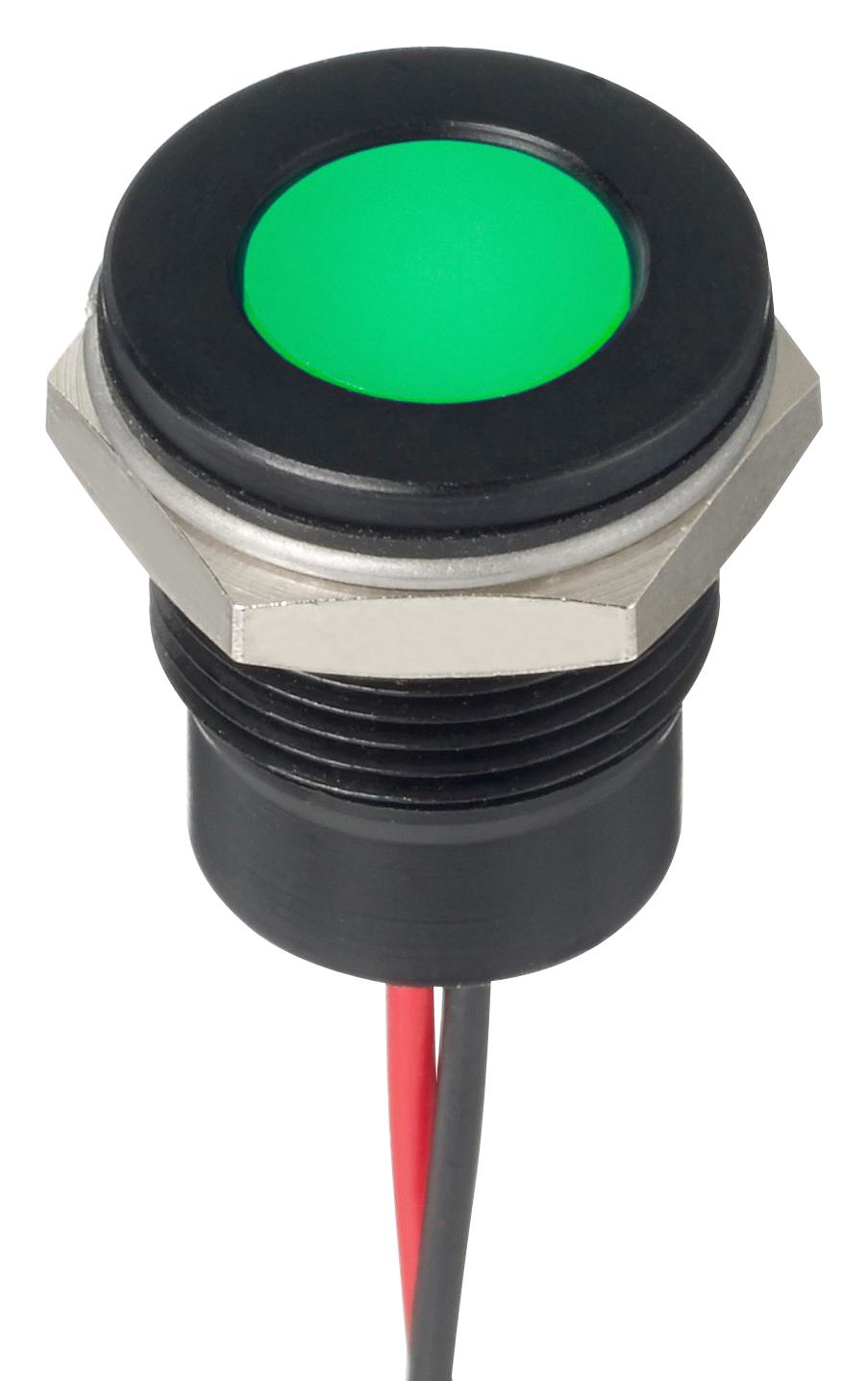

Apem Q127F5BXXHG12E Panel Mount LED Indicators
The Q12-7 series consists of 12.7 mm (0.5 inch) panel mount LED indicators suitable for various industrial and control panel applications. Available with water clear or diffused epoxy lenses, these LEDs operate from 2VDC to 220VAC and feature solder lug, faston terminals, pins, or wire terminations. Made with plated brass bezels finished in bright chrome, black, or satin grey, and molded polycarbonate rear bodies. They are sealed to IP67 (with optional sealing), with a life expectancy of 100,000 hours for reliable long-term operation, tailored for indicators, status alerts, and equipment signaling.
Apem Q127F5BXXHG12E Panel Mount LED Indicators Specifications:
- Lens Type: 8 mm diffused epoxy or water clear
- Operating Voltage: 2VDC to 220VAC
- Terminals: Solder lug, faston, pins, or wire, length approx. 200 mm
- Bezel: Plated brass finished in bright chrome, black, or satin grey
- Body Material: Molded polycarbonate, rear epoxy or short body options
- Ingress Protection: IP67 sealing option available
- Temperature Range: -30°C to +85°C depending on body type
- Viewing Angle: 30-100 degrees based on model
- Life Expectancy: 100,000 hours
- Max Reverse Voltage: 5V
- Panel Thickness: Max 7mm
Buy the Brand Q12-7 Reliable LED Indicators for Industrial Applications
Explore our high-quality Q12-7 series LED indicators designed for industrial use, offering bright illumination with water clear or diffused lenses, various voltage options from 2VDC to 220VAC, and IP67 sealing for optimal protection. Crafted with plated brass bezels in chrome, black, or satin grey and molded polycarbonate bodies, these indicators ensure long-lasting performance with a life expectancy of 100,000 hours. Perfect for control panels, status indicators, and alert systems, buy online for fast delivery and dependable operation.
Order your Brand Q12-7 series LED indicators today and enhance your control panels with durable, reliable signaling components.
Frequently Asked Questions
Where can I buy Apem Q127F5BXXHG12E?
You can click on the BUY or RFQ button to purchase Q127F5BXXHG12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q127F5BXXHG12E?
You can download the Q127F5BXXHG12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q127F5BXXHG12E?
Apem
