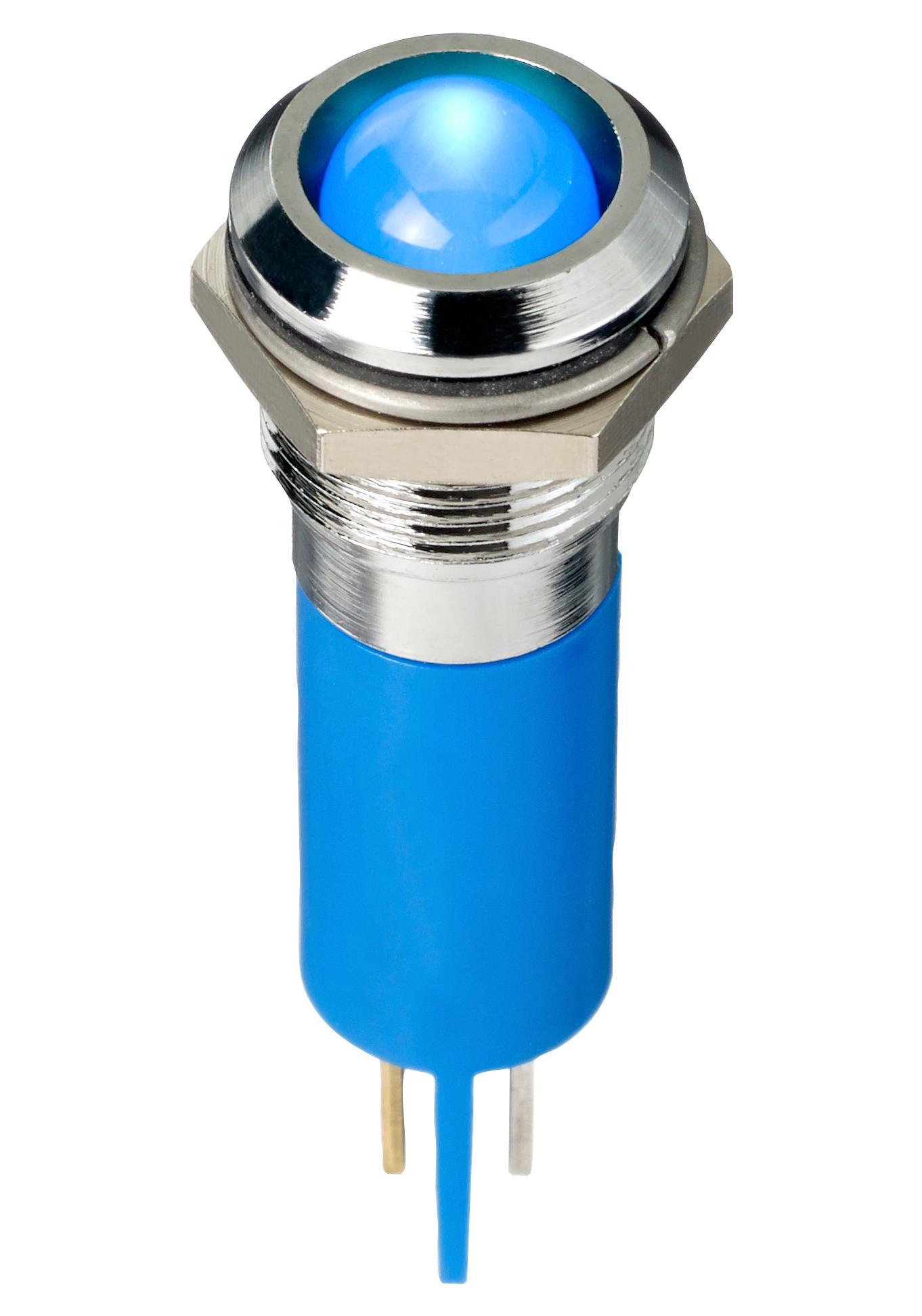

Apem Q127P1CXXB02E LED Indicators
The Q12-7 series LED indicators are 12.7 mm (0.5 inch) panel mount units designed for industrial applications, featuring distinctive, bright LEDs with various color options and high durability. They offer water-sealed IP67 variants, multiple mounting styles including flush and prominent bezels, and different electrical terminations such as solder lug, faston, pins, or wire leads. Suitable for a wide voltage range from 2VDC to 220VAC, they have a life expectancy of 100,000 hours, with materials like plated brass bezels and molded polycarbonate bodies ensuring reliability in harsh environments.
Apem Q127P1CXXB02E LED Indicators Specifications:
- Diameter: 12.7 mm (0.5 inch)
- Mounting: Panel mount, max panel thickness 7 mm
- Material: Plated brass bezel in chrome, black, satin grey; molded polycarbonate body
- Sealing: Unsealed or IP67 sealing option (EN60529)
- Operating Temperature: -30°C to +65°C for plastic body, -40°C to +85°C for epoxy body
- Life Expectancy: 100,000 hours
- LED Voltages: 2VDC - 220VAC depending on model
- Forward Voltage: Red 20V, Green 22V, Yellow 21V, Blue 3.3V, White 3.3V, Orange 22V
- Luminous Intensity: Super Bright and Hyper Bright options, with high luminous output
- Connections: Solder lug, faston terminals, pins, or 200 mm wire leads
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100° (depends on model)
- Polycarbonate rear body, operating & storage temperature -40°C to +85°C
- Certifications: UL, CSA (based on environment conditions)
Buy the Brand Q12-7 – Reliable LED Indicators for Industrial Applications
Discover the durable and high-brightness Q12-7 series LED indicators, designed for industrial environments. Featuring IP67 sealing, various mounting options, and a wide voltage range from 2VDC to 220VAC. Choose from multiple colors and configurations to suit your needs, ensuring excellent visibility and long lifespan of up to 100,000 hours. Perfect for industrial control panels, machinery, and safety systems, these indicators combine reliability with ease of installation. Buy online today and enhance your equipment with these dependable, visually striking LED lights.
Buy Q12-7 series LED indicators now and experience unmatched durability and bright visual signals for your industrial applications.
Frequently Asked Questions
Where can I buy Apem Q127P1CXXB02E?
You can click on the BUY or RFQ button to purchase Q127P1CXXB02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q127P1CXXB02E?
You can download the Q127P1CXXB02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q127P1CXXB02E?
Apem
