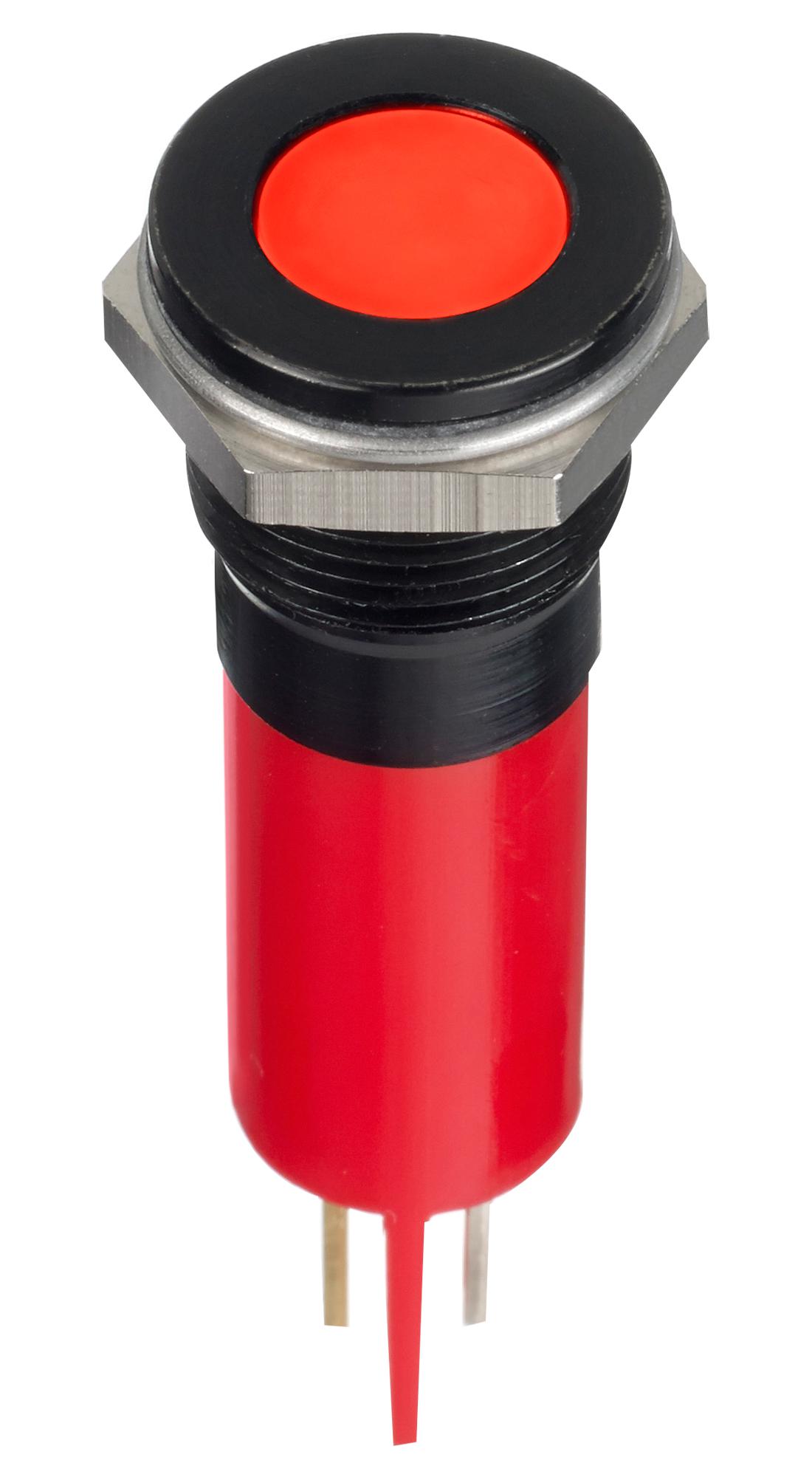

Apem Q12F1BXXHR220E LED Indicator
The Q12 series comprises 12 mm panel mount LED indicators designed for versatile industrial applications. These indicators feature a water-clear or diffused epoxy lens and bright LEDs capable of operating from 2VDC to 220VAC. Available in various colors including red, green, yellow, blue, and white, they offer high luminosity and long life expectancy of 100,000 hours. With IP67 sealing options, they are suitable for harsh environments, boasting reliable assembly with solder lug, faston terminals, pins, or long wire terminations. The indicators support different mounting styles such as prominent or recessed bezels, with optional sealed or unsealed configurations.
Apem Q12F1BXXHR220E LED Indicator Specifications:
- Lens: 8 mm colored diffused epoxy or water clear
- Operating Voltage: 2VDC - 220VAC
- Lifetime: 100,000 hours
- Viewing Angle: 30-100° depending on model
- Max Reverse Voltage: 5 V
- Operating & Storage Temperature: -30°C to +85°C depending on body type
- Sealing: IP67 (optional)
- Materials: Plated brass bezel, molded polycarbonate rear body
- Mounting Hole: 12 mm, maximum panel thickness 7 mm
- LED Intensity: Super Bright, Hyper Bright options
- Terminals: Solder lug, faston, pins, or wire (200 mm)
- Bezel Finish: Bright chrome, black, satin grey
- Ingress Protection: IP67 (optional)
- Life Expectancy: 100,000 hours
- Max Panel Thickness: 7 mm
- Torque: 75 cNm
Buy the APEM Series Q12 LED Indicator: Q12F1BXXHR220E
Enhance your industrial control systems with durable and high-brightness LED indicators from the Q12 series. With multiple color options, sealed IP67 versions, and long lifespan, these indicators ensure clear signaling even in harsh environments. Easy to assemble with solder lug, faston terminals, pins, or long wires, they support various mounting styles to suit your application needs. Invest in quality indicators that provide exceptional visibility, reliability, and installation flexibility, available for purchase online with fast delivery and dedicated customer support.
Buy Q12 series LED indicators now and experience unmatched reliability and performance for your control panels and industrial systems.
Frequently Asked Questions
Where can I buy Apem Q12F1BXXHR220E?
You can click on the BUY or RFQ button to purchase Q12F1BXXHR220E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1BXXHR220E?
You can download the Q12F1BXXHR220E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1BXXHR220E?
Apem
