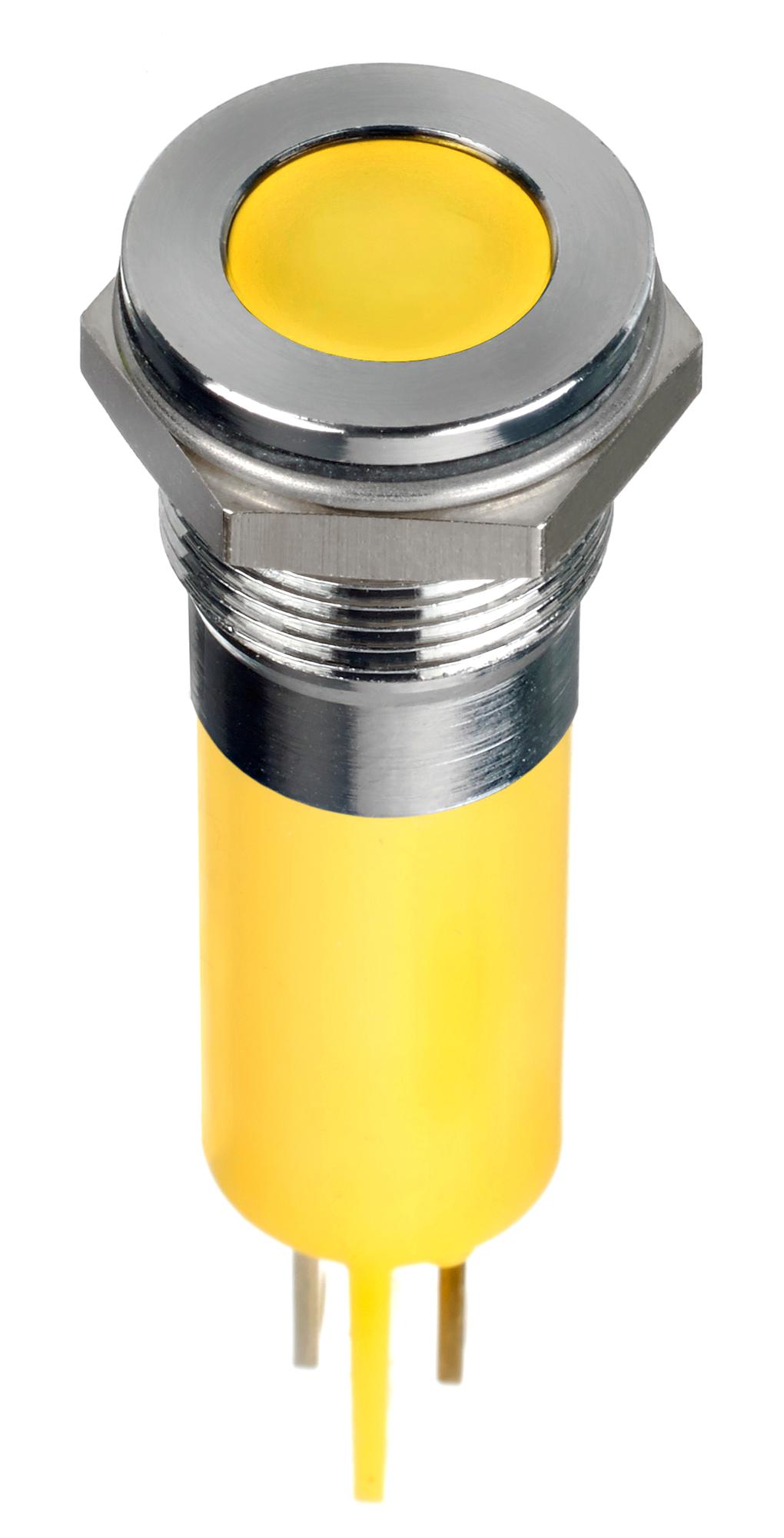

Apem Q12F1CXXHY24E Panel Mount LED Indicator
The Q12 series are durable, 12 mm panel mount LED indicators designed for various industrial applications. Featuring high brightness LEDs with diffused epoxy lenses, these indicators operate from 2VDC to 220VAC and offer options for sealed IP67 environments. Constructed with plated brass bezels finished in bright chrome, black, or satin grey, they provide excellent visibility with viewing angles of 30-100°. The series supports multiple mounting styles including prominent and recessed bezels, with terminal options such as solder lugs, fastons, pins, or extended wires, ensuring reliable performance across diverse settings. Suitable for control panels, machinery, and industrial automation, they are built for longevity with an expected life of over 100,000 hours and operating temperature ranges from -30°C to +85°C depending on the body material.
Apem Q12F1CXXHY24E Panel Mount LED Indicator Specifications:
- Lens Options: 8 mm colored diffused epoxy or water clear
- Operating Voltage: 2VDC to 220VAC
- Material: Plated brass bezel, molded polycarbonate rear body
- Mounting: Panel thickness up to 7 mm, prominent or recessed bezel styles
- Viewing Angle: 30-100°
- Life Expectancy: Over 100,000 hours
- Environmental: IP67 sealing option available, operating temperature -30°C to +85°C
- Max Reverse Voltage: 5 V
- LED Types: Standard, Super Bright, Hyper Bright, Bi-color, Tri-color
- LED Voltage & Current: 20V to 28VDC, 6mA to 20mA depending on type
- Terminal Options: Solder lug, faston, pins, or wires (200 mm length)
- Sealing: Unsealed and IP67 sealed variants available
Buy the BrandName Q12F1CXXHY24E – Reliable LED Indicator for Industrial Applications
Enhance your industrial control systems with the durable and high-brightness LED indicators of the Q12 series. Designed for versatility, these 12 mm indicators feature sealed IP67 options, various mounting styles, and terminal configurations including solder lugs, fastons, pins, or extended wires. Reliable and long-lasting with a life expectancy over 100,000 hours, they support operating voltages from 2VDC to 220VAC, making them suitable for control panels, machinery, and automation systems. Invest in quality indicators that ensure safety, visibility, and durability in demanding environments.
Buy BrandName Q12F1CXXHY24E now and experience unmatched reliability and high brightness for your industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q12F1CXXHY24E?
You can click on the BUY or RFQ button to purchase Q12F1CXXHY24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1CXXHY24E?
You can download the Q12F1CXXHY24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1CXXHY24E?
Apem
