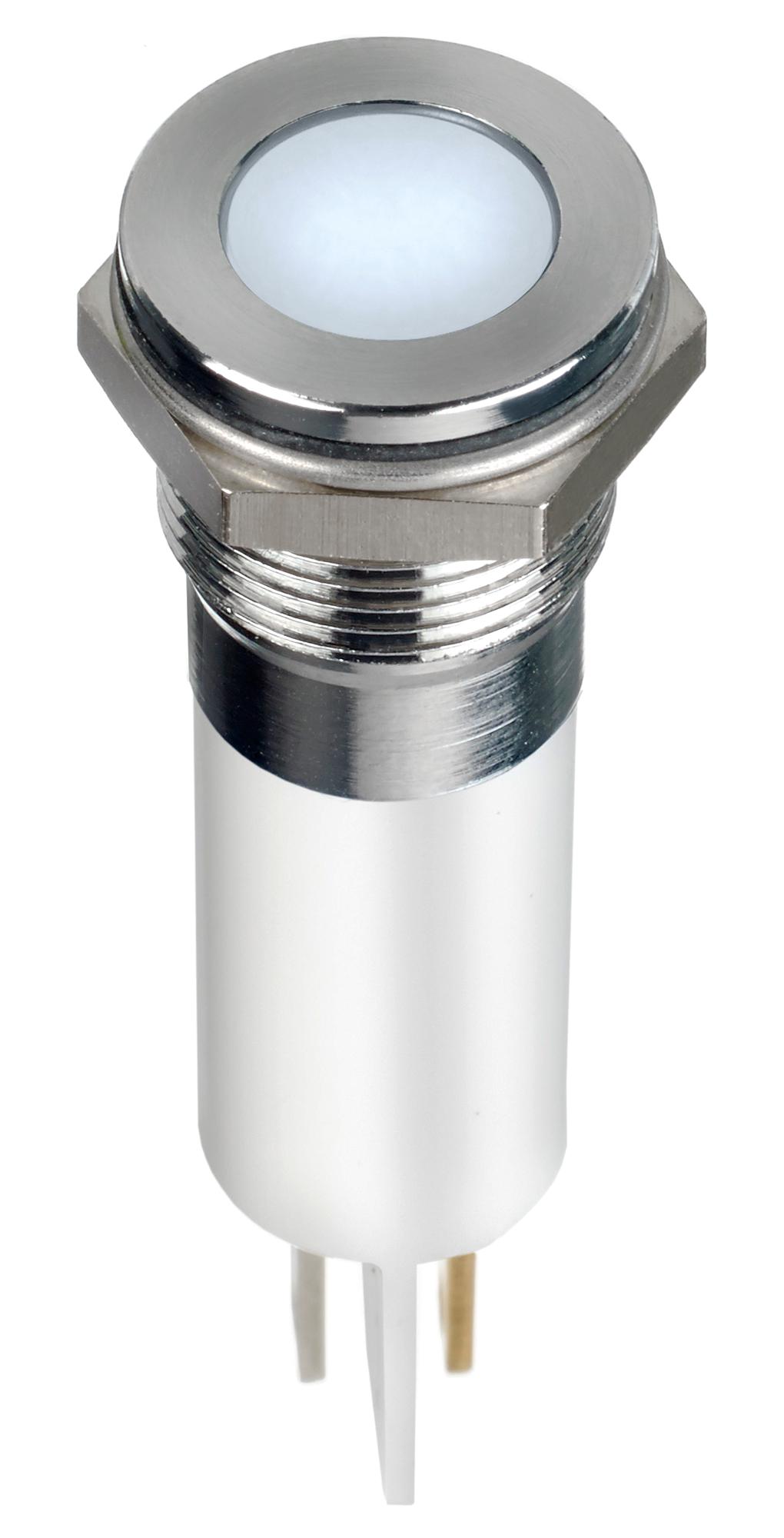

Apem Q12F1CXXW12E Panel Mount LED Indicator
The Q12 series offers 12 mm panel mount LED indicators designed for clear, bright signaling in industrial equipment and panels. Featuring a water-clear diffused epoxy lens and super bright LEDs, these indicators are suitable for various voltages from 2VDC to 220VAC. Available with different bezel finishes, terminal options, and mounting styles, they provide robust environmental sealing up to IP67. Their long life expectancy of 100,000 hours and operating temperature range from -40°C to +85°C make them ideal for demanding operational environments. Easy to install with solder lug, faston terminals, pins, or pre-wired options, ensuring flexible integration in control systems.
Apem Q12F1CXXW12E Panel Mount LED Indicator Specifications:
- Lens Diameter: 12 mm
- LED Types: Super Bright, Hyper Bright
- Voltages: 2VDC to 220VAC, Various options including 6V, 12V, 24V, 110V, 220V
- Sealing Rating: IP67 (optional)
- Operating Temperature: -40°C to +85°C
- Temperature Range: Rear plastic body: -30°C to +65°C; Rear epoxy body: -40°C to +85°C
- Max Reverse Voltage: 5 V
- Viewing Angle: 30-100° depending on model
- Life Expectancy: 100,000 hours
- Terminals: Solder lug, faston, pins, wires (standard length 200 mm, 24 AWG)
- Materials: Plated brass bezel, molded polycarbonate body
- Panel Thickness: Max 7 mm
- Torque: 75 cNm
Buy the Buy APEM Q12 Series LED Indicator Part Number Q12F1CXXW12E Online
Secure your Q12 series LED indicator online now for fast delivery and reliable performance in industrial control systems. These rugged indicators are designed for long-term use with sealed IP67 options, easy installation via solder lug, faston, pins, or wires, and feature super bright LEDs for clear visibility. Suitable for various voltages from 2VDC to 220VAC, they operate across a wide temperature range from -40°C to +85°C. Perfect for demanding environments, ensuring your signaling needs are met with high durability and easy online procurement.
Order your APEM Q12 Series LED indicator today and enhance your control panels with bright, reliable signaling components.
Frequently Asked Questions
Where can I buy Apem Q12F1CXXW12E?
You can click on the BUY or RFQ button to purchase Q12F1CXXW12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12F1CXXW12E?
You can download the Q12F1CXXW12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12F1CXXW12E?
Apem
