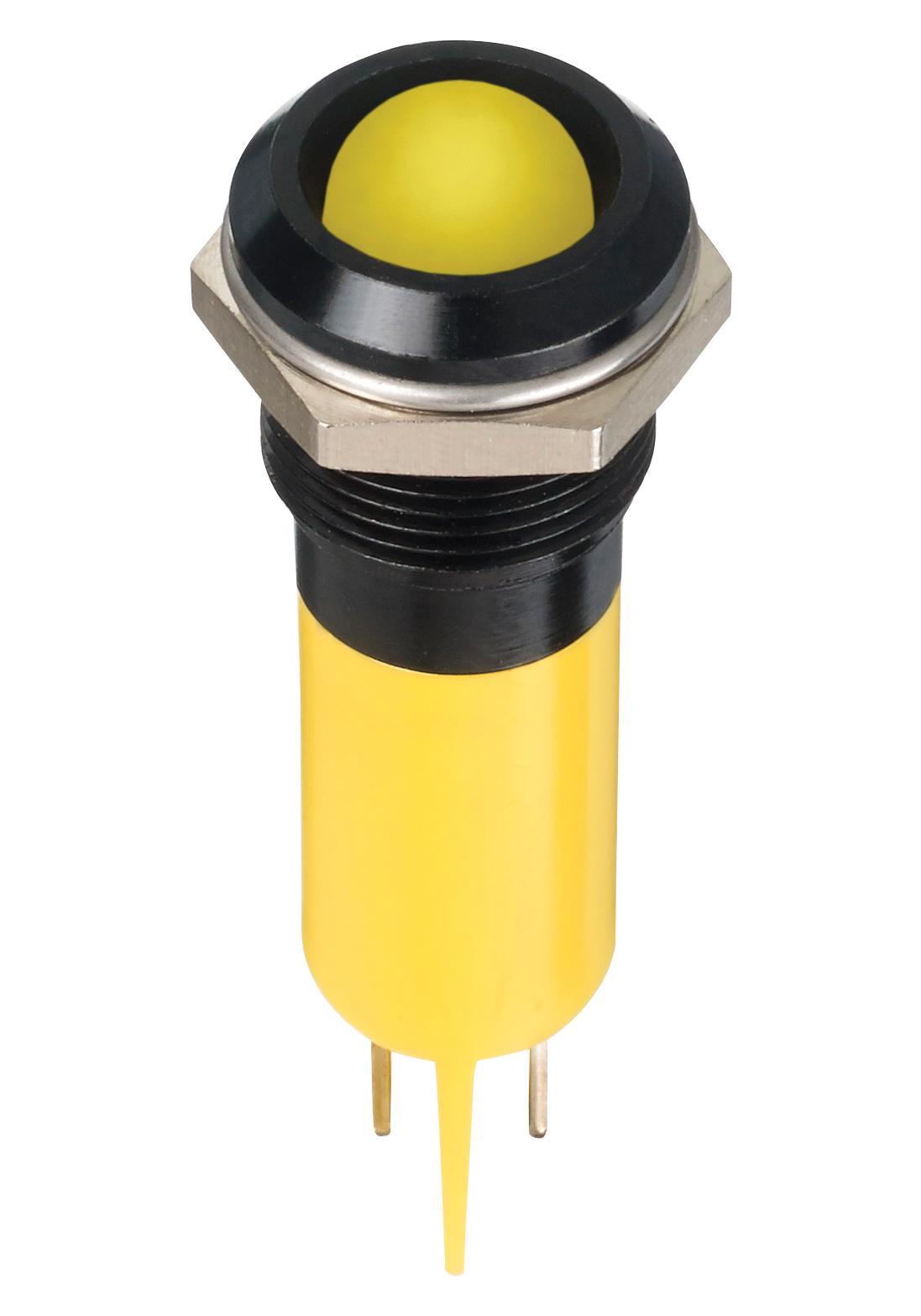

Apem Q12P1BXXHY24E LED Indicator
The Q12 Series 12mm panel mount LED indicators feature a prominent bezel design with a range of color options, including super bright, hyper bright, and standard LEDs. They are equipped with stainless steel or chrome-finished bezels, with sealed IP67 options ideal for harsh environments. These indicators operate from 2VDC to 220VAC, with a lifespan of 100,000 hours and strong sealing features, making them suitable for industrial, control panels, and equipment requiring high visibility and durability. They include various terminal types, including solder lug, pins, and wire terminations, ensuring versatile installation options.
Apem Q12P1BXXHY24E LED Indicator Specifications:
- Diameter: 12mm (.472")
- Bezel: Bright Chrome, Satin Grey, or Unsealed
- Lens: Diffused epoxy or water clear
- Material: Moulded polycarbonate, plated brass bezel
- Operating Voltage: 2VDC to 220VAC
- Operating Current: 20mA max at 2VDC to 6VDC, 3mA at 220VAC
- Lifespan: 100,000 hours
- Sealing: IP67 option available
- Viewing Angle: 30-100°
- Temperature Range: -40°C to +85°C
- Max Reverse Voltage: 5V
- Panel Cutout: 12mm
- Terminals: Solder lug, fastons, pins, or wires
- Rating: UL Recognized Component
- Max Voltage: 28VDC for terminals and wires
- Mounting: Panel mount with fixing nut and spring washer
Buy the Buy APEM LED Indicators Part Number Q12P1BXXHY24E Online
Purchase the APEM LED Indicator series Q12P1BXXHY24E online today to ensure high visibility and durability for your industrial control applications. Featuring a 12mm diameter, with options for diffused or water-clear lenses, these indicators operate from 2VDC to 220VAC with a lifespan of 100,000 hours. They are sealed for IP67 protection and include multiple terminal options for versatile installation. Perfect for control panels, industrial equipment, and security systems, they combine reliable performance with robust construction for demanding environments.
Order your APEM Series Q12P1BXXHY24E high-brightness LED indicator today and enhance your panels with dependable, long-lasting illumination.
Frequently Asked Questions
Where can I buy Apem Q12P1BXXHY24E?
You can click on the BUY or RFQ button to purchase Q12P1BXXHY24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1BXXHY24E?
You can download the Q12P1BXXHY24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1BXXHY24E?
Apem
