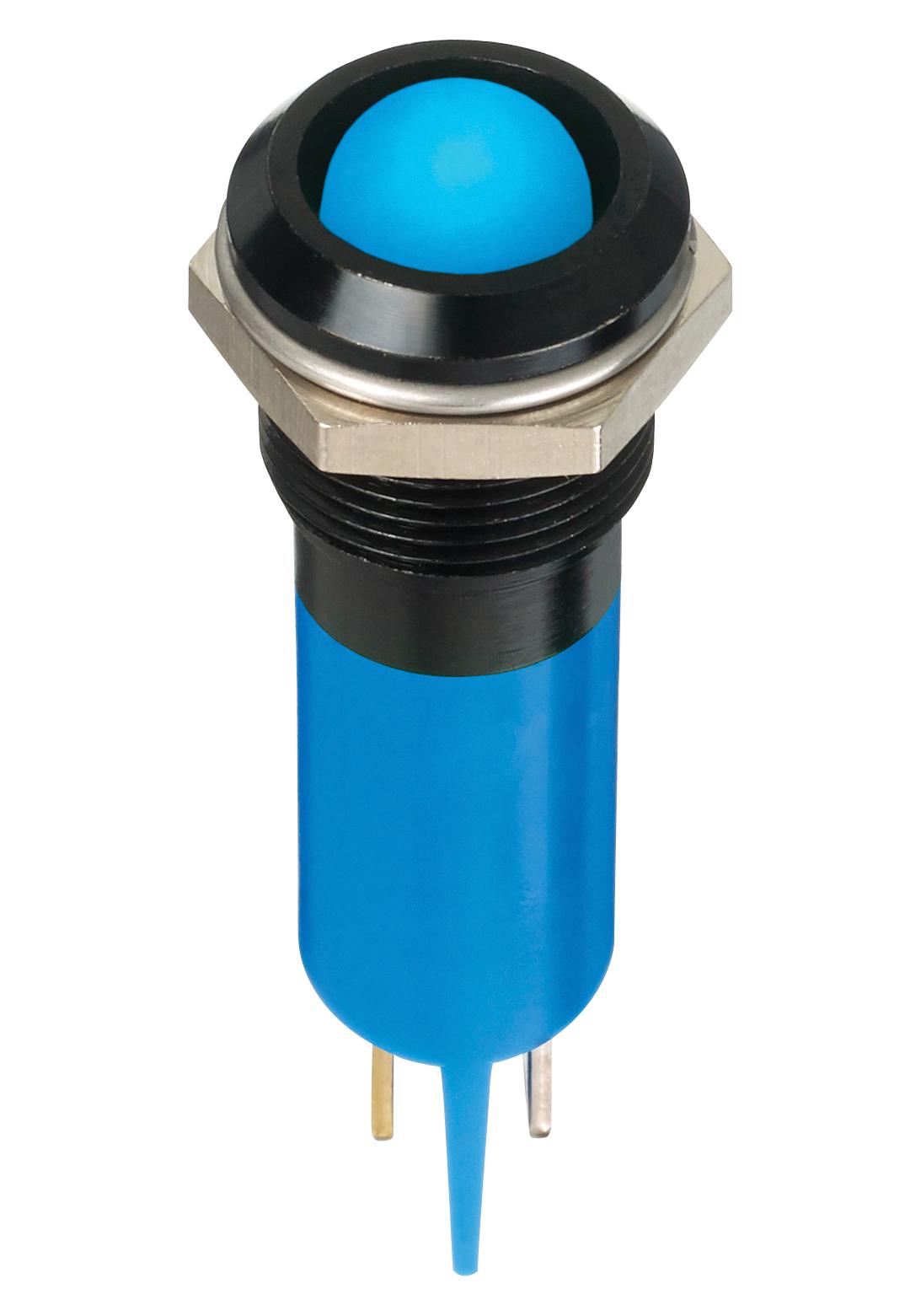

Apem Q12P1BXXSB12E LED Indicator
The Q-Serie 12mm panel mount LED indicator features a prominent bezel and is available in various colors and finishes, including bright chrome, satin grey, and water-clear LEDs. It offers multiple voltage options from 2VDC to 220VAC, with IP67 sealing for durability, and a wide viewing angle. Designed for panel mounting with solder lug, faston terminals, pins, or wire terminations, this indicator provides high luminance, longevity of 100,000 hours, and robust construction suitable for demanding applications in control panels and industrial machinery. The indicator supports a current of 20mA and is UL Recognized for safety and reliability.
Apem Q12P1BXXSB12E LED Indicator Specifications:
- Diameter: 12mm
- Panel Hole Size: 12mm
- Operating Voltage Range: 2VDC to 220VAC
- Max Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Operating Current: 20mA
- Life Expectancy: 100,000 hours
- Temperature Range: -40°C to +85°C
- Sealing: IP67 (optional)
- Bezel Finish: Bright Chrome, Satin Grey
- Lens Type: Diffused epoxy or water-clear
- Mounting Style: Panel mount, prominent bezel
- Terminals: Solder lug, faston, pins, wires
- Max Panel Thickness: 7mm
- Certifications: UL Recognized
- Color Varieties: Green, Yellow, Blue, White, Orange, Red/Green bi-color, Red/Yellow tri-color
- Additional Features: Bright LEDs, high luminance, long life, robust construction
Buy the Buy APEM Q Series 12mm Panel Mount LED Indicator Part Number Q12P1BXXSB12E Online
Get your APEM Q Series 12mm panel mount LED indicator online today to improve the clarity and safety of your control panels. This robust indicator features IP67 sealing for durability, a wide variety of colors and voltages to suit different applications, and a prominent bezel for easy visibility. Designed with long-lasting LEDs rated for 100,000 hours, it supports multiple mounting options including solder lug, faston terminals, pins, or wires. Perfect for industrial machinery, automation, and control systems, this indicator ensures reliable operation in demanding environments.
Order your APEM Q Series 12mm panel mount LED indicator today and enhance the visibility and reliability of your control panels and industrial equipment.
Frequently Asked Questions
Where can I buy Apem Q12P1BXXSB12E?
You can click on the BUY or RFQ button to purchase Q12P1BXXSB12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1BXXSB12E?
You can download the Q12P1BXXSB12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1BXXSB12E?
Apem
