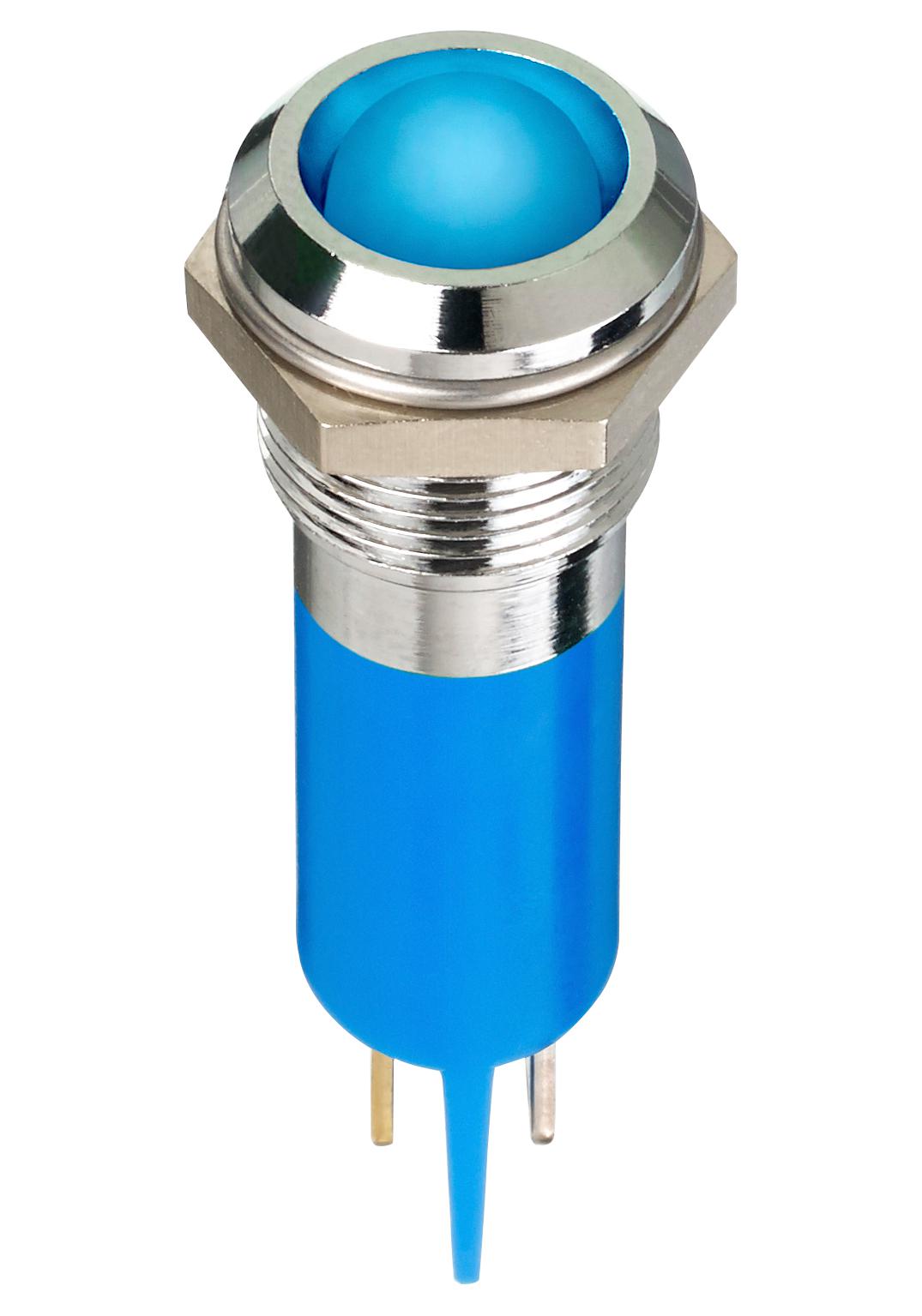

Apem Q12P1CXXB12 Panel Mount LED Indicator
The Q Series 12mm panel mount LED indicators are designed for reliable visual signaling in industrial and electronic applications. Featuring a prominent bezel and multiple color options, they are available with diffused or super bright LEDs, and can be sealed to IP67 for harsh environments. Capable of operating from 2VDC to 220VAC with a lifespan of 100,000 hours, these indicators include various termination types such as solder lug, pins, or wires, and are suitable for panel thickness up to 7mm. Their robust construction ensures durability and clear visibility in demanding conditions.
Apem Q12P1CXXB12 Panel Mount LED Indicator Specifications:
- LED diameter: 12mm
- Panel hole size: 12mm
- Bezel finish: Bright Chrome, Satin Grey
- Lens Type: Diffused or Super Bright
- Ambient Temperature Range: -40 to +85°C
- Operating Voltage: 2VDC to 220VAC
- Maximum Reverse Voltage: 5V
- Operating Current: 20mA
- Viewing Angle: 30-100°
- Life Expectancy: 100,000 hours
- Sealing: IP67 (optional)
- Termination: Solder Lug, Fastons, Pins, Wires (200mm)
- Panel Thickness: Up to 7mm
- Wire Gauge: 24AWG UL1061
- Max Panel Thickness: 7mm
- Max Voltage: 28VDC for pins and wires
- Certifications: UL Recognized
Buy the Buy APEM Q Series Panel Mount LED Indicator Part Number Q12P1CXXB12 Online
Purchase your APEM Q Series 12mm panel mount LED indicator online today for reliable, long-lasting visual signaling in industrial applications. These indicators offer vivid colors, high brightness, and IP67 sealing, ensuring durability in demanding environments. Suitable for panel thickness up to 7mm with various termination options including solder lug, pins, or wires. Operating from 2VDC to 220VAC, they provide excellent visibility and lifespan of 100,000 hours. Improve your control systems with these robust, easy-to-install LED indicators available for quick online ordering.
Order your APEM Q12P1CXXB12 series LED indicator today and enhance your control panels with durable, high-brightness visual signaling components.
