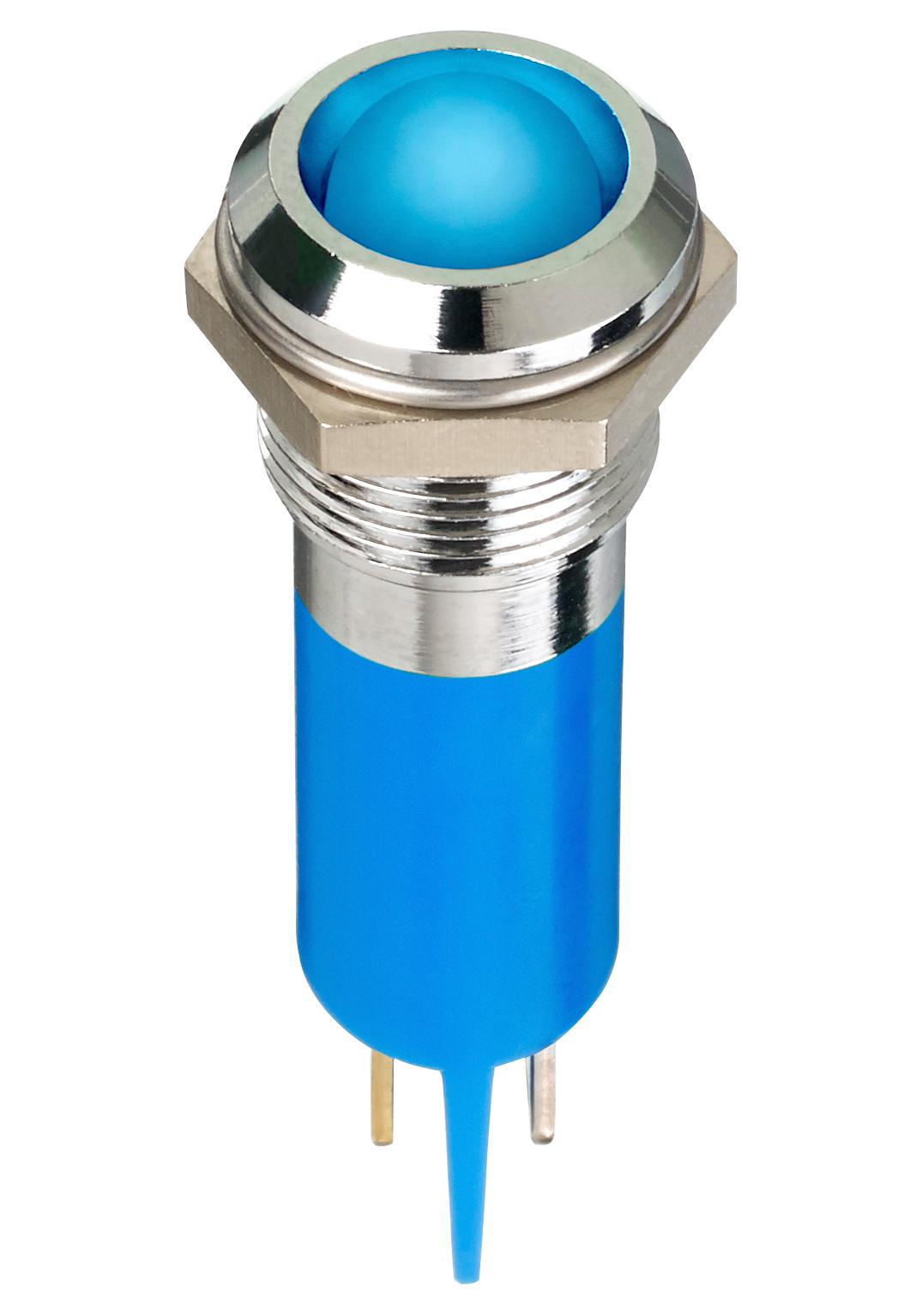

Apem Q12P1CXXB24 Panel Mount LED Indicator
The Q12 Series 12mm panel mount LED indicators offer durability with IP67 sealing, featuring bright LED illumination in various colors including green, yellow, blue, white, orange, and bi-color options. Designed with prominent bezels finished in bright chrome, satin grey, or black chrome, these indicators operate from 2VDC to 220VAC, and are suitable for demanding industrial applications. They include options with solder lug, faston terminals, pins, or wire terminations, and are recognized as UL components with a lifespan of over 100,000 hours. Installation features include a 12mm panel cutout and compatibility with multiple mounting options, ensuring clear visibility and reliable performance in harsh environments.
Apem Q12P1CXXB24 Panel Mount LED Indicator Specifications:
- Diameter: 12mm (.472 inch)
- Sealing: IP67 (waterproof, dustproof)
- Operating Voltage Range: 2VDC to 220VAC
- LED Colors: Green, Yellow, Blue, White, Orange, Red/Green bi-color, Red/Yellow bi-color, Tri-color (red, green, yellow)
- Material: Plated brass bezel, molded polycarbonate rear body
- Finish: Bright chrome, black chrome, satin grey
- Viewing Angle: 30-100°
- Max Reverse Voltage: 5V
- Operating Temperature: -40 to +85°C
- Lifespan: Over 100,000 hours
- Terminals: Solder lug, faston, pins, or 200mm wire with UL recognition
- Ingress Protection: IP67 sealed option available
- Max Reverse Voltage: 5V
- Current: Up to 20mA depending on LED color and voltage
- Panel Cutout: 12mm
- Certifications: UL Recognized Component
- Optional: Flooded epoxy sealing, prominent bezel, short body, and various terminal types
Buy the APEM Q12P1CXXB24 – Reliable LED Indicators for Industrial Applications
Enhance your industrial equipment with the durable and bright LED indicators of the Q12 Series. Offering IP67 sealing, multiple color options including bi-color and tri-color, and versatile terminal types, these indicators ensure clear visibility and long-lasting performance in harsh conditions. Suitable for panel mounting with a 12mm cutout, they operate from 2VDC to 220VAC, making them ideal for automation, control panels, and machinery. Easy to install and UL recognized, these indicators deliver reliable operation for demanding industrial applications.
Buy APEM Q12P1CXXB24 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy Apem Q12P1CXXB24?
You can click on the BUY or RFQ button to purchase Q12P1CXXB24 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1CXXB24?
You can download the Q12P1CXXB24 datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1CXXB24?
Apem
