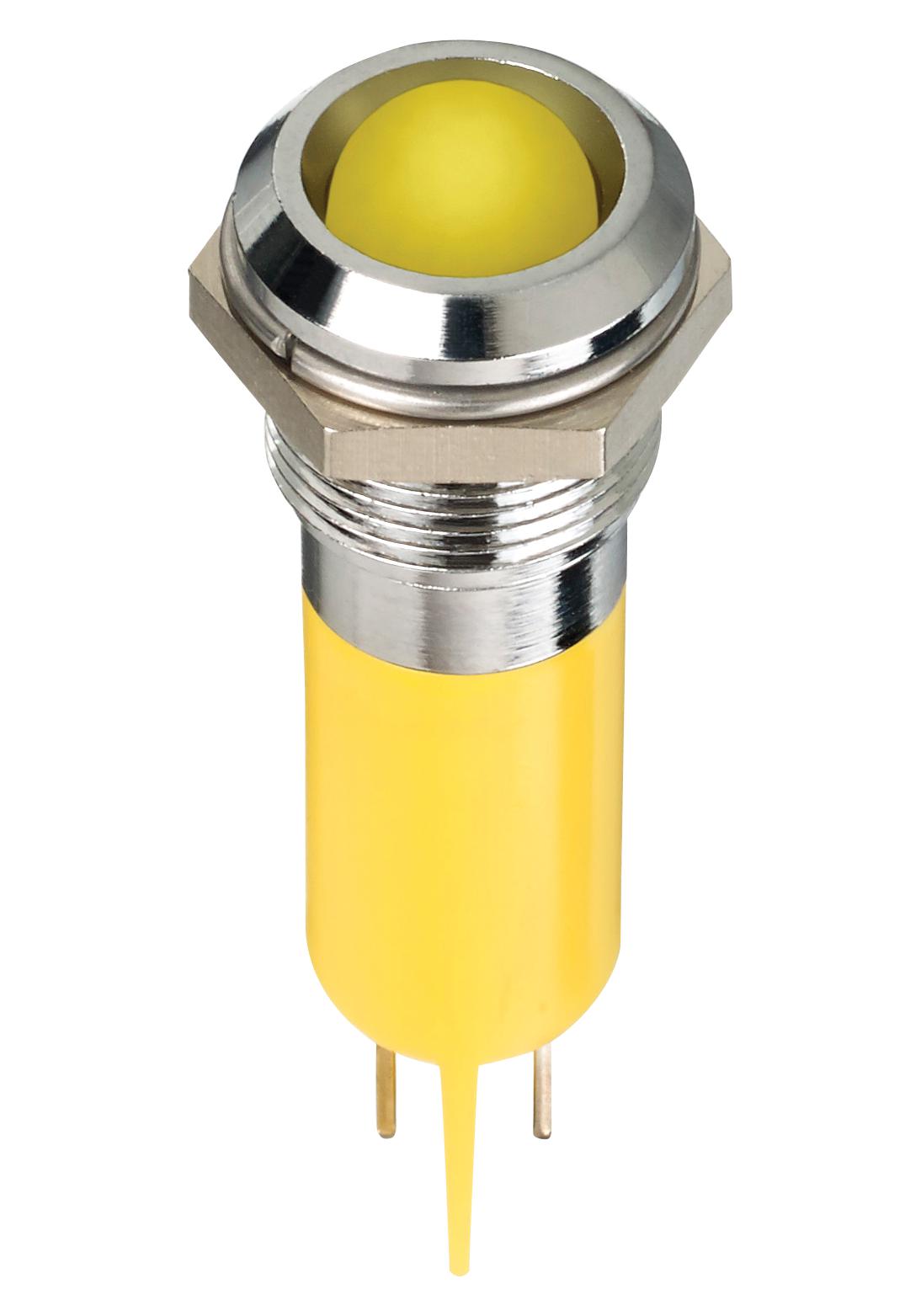

Apem Q12P1CXXHY12E Panel Mount LED Indicator
The Q12 Series is a 12mm panel mount LED indicator designed for industrial applications, featuring a prominent bezel, diverse LED colors, and sealing options. It supports various voltages from 2VDC to 220VAC, with high durability and IP67 sealing for harsh environments. Its compact design includes solder lug, faston terminals, pins, or wire terminations, with an operating temperature range of -40°C to +85°C. Ideal for status indication and control panels, it offers long life expectancy of 100,000 hours, ensuring reliable performance in demanding industrial settings.
Apem Q12P1CXXHY12E Panel Mount LED Indicator Specifications:
- Diameter: 12mm
- Panel Thickness: Maximum 7mm
- Bezel Finish: Bright Chrome, Satin Grey
- Lens Colors: Green, Yellow, Blue, White, Orange; Bi-color and Tri-color options
- Voltage: 2VDC to 220VAC selectable
- Operating Current: 20mA max
- Reverse Voltage: 5V
- Viewing Angle: 30-100°
- Sealing: IP67 (optional)
- Operating Temperature: -40°C to +85°C
- Life Expectancy: 100,000 hours
- Terminals: Solder lug, faston, pins, or wires
- Max Reverse Voltage: 5V
- Max Voltage for Pins/Wires: 28V
- Durability: Suitable for harsh environments, UL Recognized
- Certifications: UL Recognized Component
Buy the APEM Q12P1CXXHY12E – Reliable LED Indicator for Industrial Applications
Order the APEM Q12P1CXXHY12E panel mount LED indicator now for robust performance and high visibility in industrial environments. Featuring a 12mm diameter, diverse color options, and multiple voltage supports from 2VDC to 220VAC. Its IP67 sealed design ensures reliability in harsh conditions, with long life expectancy of 100,000 hours. Perfect for status indication, the indicator includes various mounting options such as solder lug, faston terminals, pins, or wires. Enhance your control panel with this durable and versatile LED indicator today.
Get APEM Q12P1CXXHY12E today—built for precision, high visibility, IP67 sealing, and long-lasting durability in industrial control panels.
Frequently Asked Questions
Where can I buy Apem Q12P1CXXHY12E?
You can click on the BUY or RFQ button to purchase Q12P1CXXHY12E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P1CXXHY12E?
You can download the Q12P1CXXHY12E datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P1CXXHY12E?
Apem
