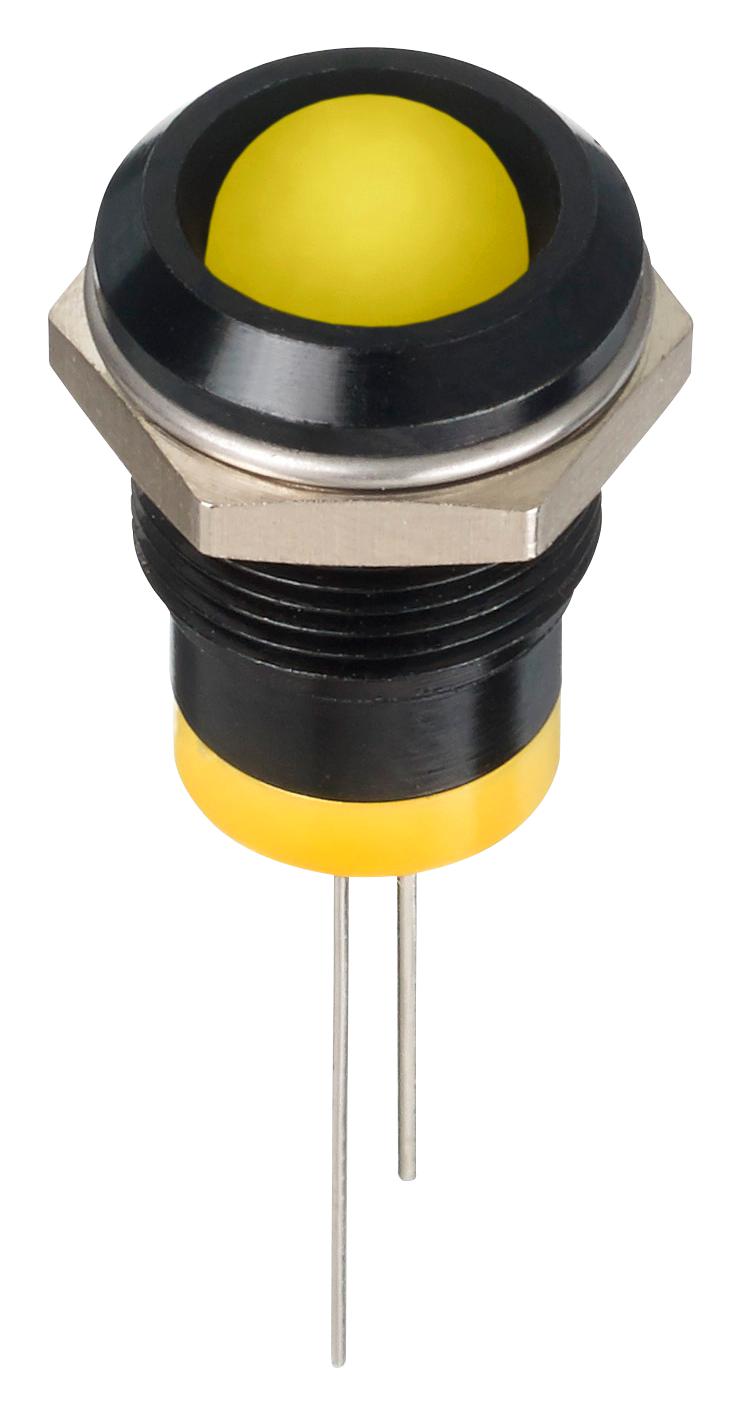

Apem Q12P6BXXY02 Industrial LED Indicator
The Q12 Series panel mount LED indicators are designed for industrial use, offering a 12mm diameter with prominent bezel, available in multiple colors such as green, yellow, blue, white, and orange. They feature diffused epoxy lenses or super bright LEDs, with options for water-clear lenses. The indicators support voltages from 2VDC up to 220VAC, with IP67 sealing for harsh environments. They are supplied with fixing nuts, spring washers, and have optional sealed options. Suitable for panel thickness up to 7mm, these LEDs ensure long life with 100,000 hours and are UL recognized components, ideal for status indication or control panels.
Apem Q12P6BXXY02 Industrial LED Indicator Specifications:
- Diameter: 12mm
- Panel thickness compatibility: up to 7mm
- Lens: diffused epoxy or water-clear super bright LEDs
- Bezel: plated brass, bright chrome, black chrome, or satin grey
- Termination options: solder lug, faston, pins, or 200mm wire
- Operating Voltage Range: 2VDC to 220VAC
- Max Reverse Voltage: 5V
- Viewing Angle: 30° to 100°
- Temperature Range: -40°C to +85°C
- Lifespan: approximately 100,000 hours
- Sealing: IP67 sealed option available
- Certifications: UL Recognized
- Max Operating Current: 20mA
- Voltage Tolerance: ±10%
- Panel cutout: 12mm
- Materials: Metal bezel, molded polycarbonate rear body
Buy the APEM Q12P6BXXY02 – Reliable LED Indicator for Industrial Applications
Purchase the APEM Q12P6BXXY02 LED indicator online today and enjoy superior visibility, sealing against dust and moisture, and long-lasting performance. This 12mm panel mount LED offers broad voltage support from 2VDC to 220VAC, with options for diffused or water-clear lenses and various bezel finishes. Its robust construction, IP67 sealing, and UL recognition make it ideal for industrial control panels, automation systems, and manufacturing processes. Easy to install, reliable, and designed to operate in harsh environments, this LED indicator provides excellent indication with a lifespan exceeding 100,000 hours. Buy now for enhanced equipment reliability.
Buy APEM Q12P6BXXY02 LED indicator now and enhance your industrial control panels with bright, durable, and sealing IP67 rated LED status lights.
Frequently Asked Questions
Where can I buy Apem Q12P6BXXY02?
You can click on the BUY or RFQ button to purchase Q12P6BXXY02 from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q12P6BXXY02?
You can download the Q12P6BXXY02 datasheet or visit the Apem website for support.
Who is the manufacturer of Q12P6BXXY02?
Apem
