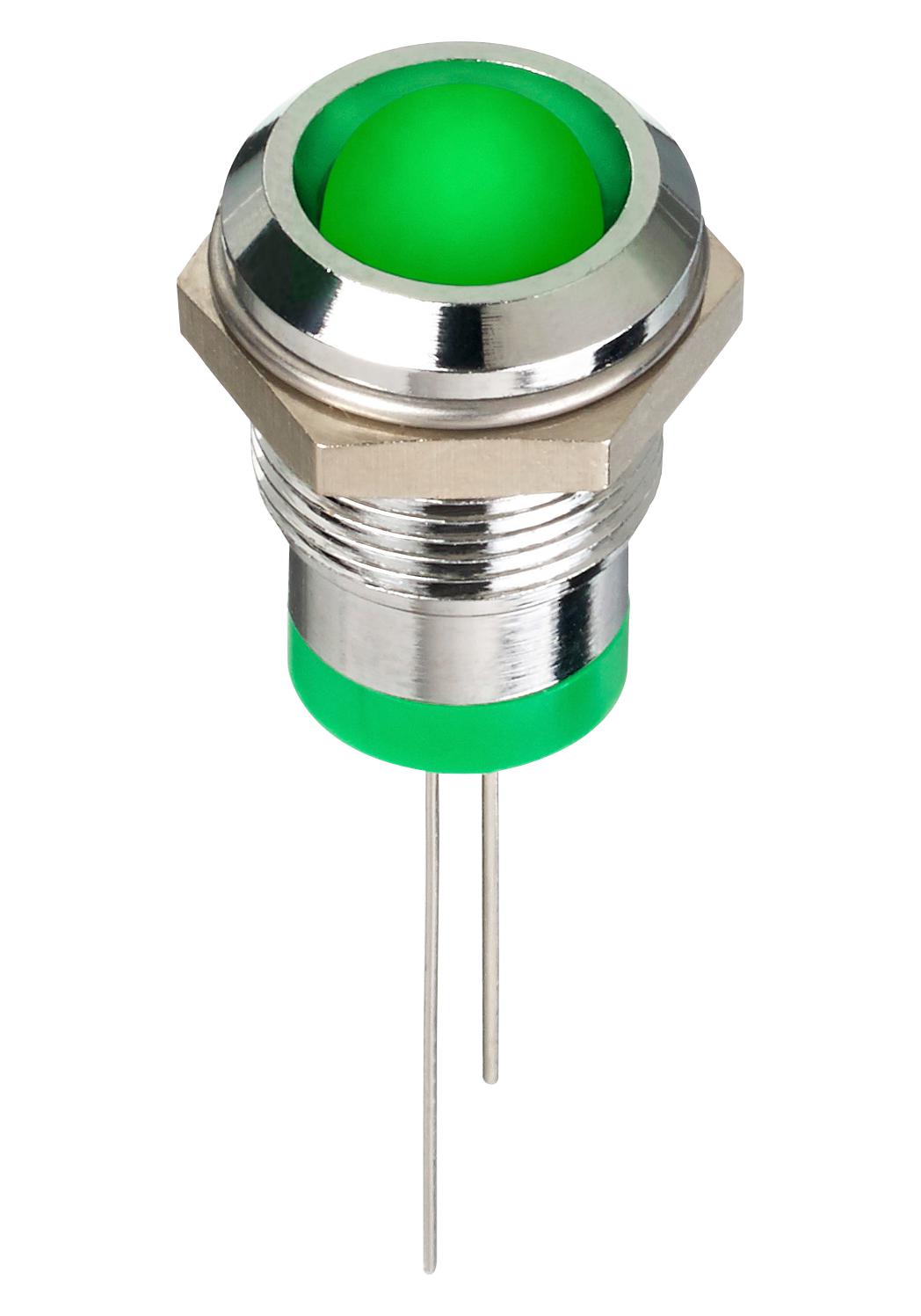

Apem Q12P6CXXG02 Panel Mount LED Indicator
The Q12 Series are 12mm panel mount LED indicators designed for versatile applications, offering various colors, sealing options, and terminal types. Features include prominent bezels, high efficiency LEDs, and IP67 sealing for durability. Suitable for panel mounting where reliable indication signals are essential, these LEDs operate across a wide voltage range from 2VDC to 220VAC. With a life expectancy of 100,000 hours, they are ideal for industrial or control panel environments, providing bright, clear illumination with multiple color and bi-color options. Easy to install and components compliant with UL standards ensure rugged, long-lasting performance.
Apem Q12P6CXXG02 Panel Mount LED Indicator Specifications:
- Diameter: 12mm (0.472 inch)
- Voltage Range: 2VDC to 220VAC
- Operating Current: 20mA maximum (varies with voltage)
- Life Expectancy: 100,000 hours
- Temperature Range: -40°C to +85°C
- Sealing: IP67 (optional)
- Viewing Angle: 30-100°
- Bezel Finish: Bright Chrome, Satin Grey, or Black Chrome
- Terminal Types: Solder lug, faston, pins, or wire leads
- Max Reverse Voltage: 5V
- Max Panel Thickness: 7mm
- Color Options: Green, Yellow, Blue, White, Orange, Red/Green bi-color, Red/Yellow bi-color, tri-color
- Mounting Hole Size: 12mm
- Construction: Durable polycarbonate rear body with plated brass bezel
- Compliance: UL Recognized
- Application: Panel indicators for industrial, control, or machinery environments
Buy the Buy APEM LED Indicator Part Number Q12P6CXXG02 Online
Purchase your APEM Series Q12P6CXXG02 panel mount LED indicator online today for seamless integration into industrial panels and control systems. This compact, high-brightness indicator is available in multiple colors and sealing options, ensuring long lifespan and dependable performance. With versatile terminal types, it is easy to install in various environments, offering excellent visibility, durability, and UL recognition. Elevate your machinery or control panels with this reliable LED indicator that's designed for demanding industrial applications. Order now for quick delivery and quality assurance.
Order your APEM Series Q12P6CXXG02 durable LED indicator today and enhance your control panels with bright, reliable illumination.
