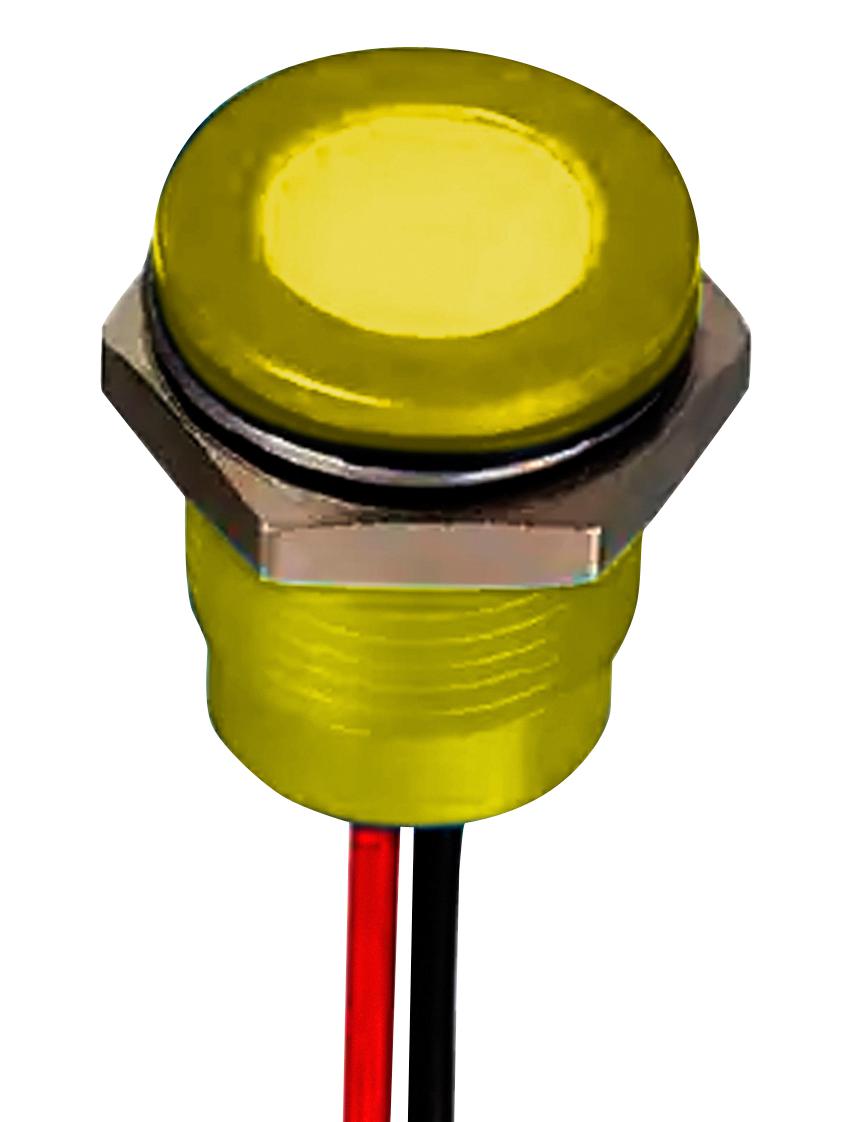

Apem Q14F1BXXY02E LED Indicator
The Q14 series panel mount LED indicators feature 14 mm diameter, water and dust resistant IP67 sealing, and are available with diffused or water-clear lenses. They offer high brightness LEDs, various bezel finishes including chrome, black, and satin grey, and multiple wiring terminations such as solder lug, faston, or long wires. Suitable for panel thickness up to 11 mm, these indicators operate within -40°C to +85°C, have a life expectancy of 100,000 hours, and include options for RGB or bi-color illumination, making them ideal for industrial, automotive, and electronic applications.
Apem Q14F1BXXY02E LED Indicator Specifications:
- Diameter: 14 mm
- Bezel Material: Plated brass finished in bright chrome, black, satin grey
- Body Material: Moulded polycarbonate rear body
- Sealing: IP67 option available
- Operating Temperature Range: -40°C to +85°C
- Operating Voltage: 1.8 to 33 VDC, 6 VDC, 12 VDC, 24 VDC, 28 VDC, 110 VAC, 220 VAC
- Current: Max 20 mA depending on voltage
- Luminous Intensity: Prominent, super bright, hyper bright, or RGB options
- Viewing Angle: 30-100°, dependent on model
- Life Expectancy: 100,000 hours
- Maximum Panel Thickness: 11 mm
- Torque: 75 cNm
- Reverse Voltage: 5 V maximum
- Terminals: Solder lug, faston, long wires, or pins
- LED Types: Red, green, yellow, blue, white, orange, RGB, bi-color, tri-color
- Custom engraving available with white infill
- Wire length: Standard 200 mm
Buy the Brand Series Q14 LED Indicators: Q14F1BXXY02E
Order the Q14F1BXXY02E LED indicator online today to ensure durable, high-brightness illumination for industrial control panels, automotive displays, or electronic devices. Featuring IP67 sealing, multiple wiring options, and various bezel finishes, this indicator guarantees performance even under harsh environmental conditions. With a lifespan of 100,000 hours, it offers long-term reliability. Simple to install with panel thickness up to 11 mm and available with custom engraving, it is the ideal solution for precise indicator needs in professional applications.
Buy APEM Q14F1BXXY02E now and experience unmatched reliability and performance with high-brightness LEDs and IP67 sealing.
Frequently Asked Questions
Where can I buy Apem Q14F1BXXY02E?
You can click on the BUY or RFQ button to purchase Q14F1BXXY02E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F1BXXY02E?
You can download the Q14F1BXXY02E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F1BXXY02E?
Apem
