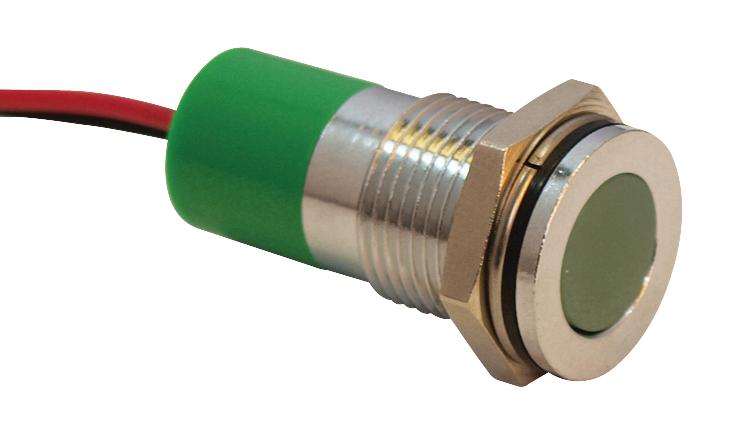

Apem Q14F3CXXG24E LED Indicator
The Q series panel-mount LED indicator features high-brightness LEDs with diffused epoxy lenses and durable bezels in chrome, black chrome, satin grey, or ABS plastic finishes. It offers variants with prominent, recessed, and flush mounting options for panel thicknesses up to 12mm. The indicator includes a 20mm diameter lens, with wiring options of 200mm long wires, Faston terminals, or solder lugs. Capable of operating at voltages from 2VDC to 220VAC, it supports bicolour and tricolour configurations, with epoxy sealing, lamp test features, and multiple bezel styles for industrial signaling and control applications. It’s suitable for voltages up to 28VDC and features a long lifespan of 100,000 hours, ideal for durable industrial use.
Apem Q14F3CXXG24E LED Indicator Specifications:
- Lens Diameter: 20mm
- Bezel Finishes: Chrome, black chrome, satin grey, ABS plastic
- Mounting Options: Prominent, recessed, flush
- Panel Thickness: Up to 12mm (prominent), 10mm (flush)
- Wiring: 200mm long wires, Faston terminals, solder lugs
- Operating Voltage Range: 2VDC to 220VAC
- Voltage Configurations: Bicolour, tricolour variants available
- Indicators supported: Red, green, yellow, blue, white, with optional flashing and bi-color
- Operation Temperature: -40°C to +85°C
- Luminous Intensity: 2,800 to 10,000 med depending on configuration
- Lifespan: 100,000 hours
- Seal: Epoxy sealed rear, IP67 option available
- Max Reverse Voltage: 5V
- Viewing Angle: 100°
Buy the Buy Apem Q14F3CXXG24E Panel Mount LED Indicator Online
Purchase the Apem LED Indicator Q14F3CXXG24E online today for reliable industrial signaling. Featuring multiple bezel styles, diffused epoxy lenses, and support for voltages from 2VDC to 220VAC, it is designed for durability and long lifespan. Its epoxy-sealed rear, IP67 sealing option, and versatile wiring choices—including Faston terminals and solder lugs—make it ideal for control panels and industrial environments. With positive LED brightness, resistor-less versions for 220VAC, and bi- and tricolour options, this indicator ensures optimal visibility and dependability for any control system—order now for quality and performance.
Get Apem Q14F3CXXG24E today—built for industrial signaling with durable construction, multiple mounting options, and versatile voltage support.
Frequently Asked Questions
Where can I buy Apem Q14F3CXXG24E?
You can click on the BUY or RFQ button to purchase Q14F3CXXG24E from an authorized Apem distributor.
How do I troubleshoot issues or seek technical support for part Q14F3CXXG24E?
You can download the Q14F3CXXG24E datasheet or visit the Apem website for support.
Who is the manufacturer of Q14F3CXXG24E?
Apem
